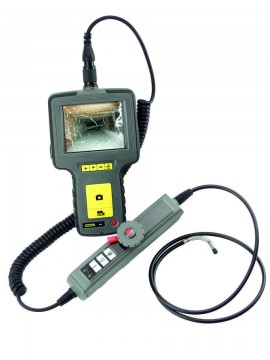

General Tools DCS16HPART High-Performance Recording Video Inspection Borescope System with VGA resolution articulating probe
SKU: DCS16HPART
$1,786.46
Availability: 2 to 3 Weeks General Tools DCS16HPART Offers Features Combines the H16 console of a DCS1600 Recording Video Inspection Camera/Borescope with a 3.3′ (1 m) long P16HPART High-Performance Articulating Probe. This probe is also available separately in three lengths as a plug-and-play upgrade of the articula The P16HPART probe is IP67 waterproof, with an articulation range of ±155° and a VGA resolution (640 x 480 pixel) camera lit by
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 2 to 3 Weeks
General Tools DCS16HPART Offers
Features
- Combines the H16 console of a DCS1600 Recording Video Inspection Camera/Borescope with a 3.3' (1 m) long P16HPART High-Performance Articulating Probe. This probe is also available separately in three lengths as a plug-and-play upgrade of the articula
- The P16HPART probe is IP67 waterproof, with an articulation range of ±155° and a VGA resolution (640 x 480 pixel) camera lit by five adjustable-brightness white LEDs. Three buttons on the probe’s controller allow you to brighte
- The ability to change the probe’s viewing axis by up to 155° in two directions—even in close quarters—makes it possible to see around corners or even "behind" the probe
- The 3.5" (8.89 cm) diagonal color LCD on the console makes it possible to view probe video instantly and saved video clips and pictures later
- Familiar menu-driven user interface for viewing videos and photos on the console’s LCD (or TV) and for saving media files to a standard full-size SD memory card (8GB card included)
- 27 available menu languages
General Tools DCS16HPART Specifications
| H16 Console | |
| Display | 3.5" (89mm) diagonal TFT color LCD |
| Display Resolution | 320 by 240 pixels (QVGA) |
| Camera and Recording Resolution | 640 x 480 pixels (VGA) |
| Analog Video Out Formats | NTSC andPAL |
| Recording Medium | Standard-size SD card (8GB card included) |
| Operating Temperature | 32 to 140°F (0 to 60°C) |
| Power Source | Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included) |
| Dimensions | 8.5 x 4.7 x 1.4" (215 x 120 x 36 mm) |
| Weight | 13.4 oz (380g) |
| P16HPART Probe | |
| Water/oil/dust Resistance | Per IP67 standard |
| Depth of Field and Field of View | 0.25 to 12" (6.4 to 300 mm)/ 60° |
| Camera Lighting | Three forward-facing LEDs + two side-facing LEDs |
| Articulation Range | ±155° |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Material | Soft metal |
| Size | 3.28' (1 m) long x 0.23" (6 mm) diameter |
Click here for complete specifications on the General Tools DCS16HPART
