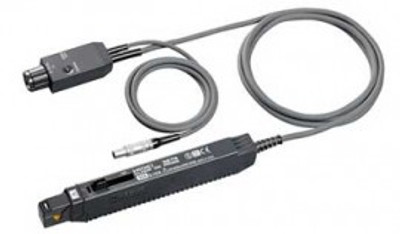

Hioki 3275 Clamp-On Frequency Current Probe, DC to 2MHz
SKU: 3275
Availability: 5 to 6 Weeks Hioki 3275 Offers This Hioki 3275 Clamp-On Frequency Current Probe features a 6.56′ (2 m) sensor cable with a BNC terminal for simple connection to a Memory HiCorder. The probe can also be directly connected to an oscilloscope and is capable of measuring current across a frequency band of DC to 2 MHz. Features Ideal for use with Memory HiCorders and high-performance oscilloscopes Measures transient current signals fr
Availability: 5 to 6 Weeks
Hioki 3275 Offers
This Hioki 3275 Clamp-On Frequency Current Probe features a 6.56' (2 m) sensor cable with a BNC terminal for simple connection to a Memory HiCorder. The probe can also be directly connected to an oscilloscope and is capable of measuring current across a frequency band of DC to 2 MHz.
Features
- Ideal for use with Memory HiCorders and high-performance oscilloscopes
- Measures transient current signals from switching power supplies, inverters and motor controllers
- Offers a wide frequency bandwidth of DC to 2 MHz as well as 500 A of continuous input
- Equipped with a 6.56' (2 m) sensor cable with a BNC terminal
Hioki 3275 Specifications
Specifications
| Frequency Bandwidth | DC to 2 MHz (-3 dB) |
| Rise Time | 175 ns or shorter |
| Noise Level | 25 mArms maximum (bandwidth limited to 20 MHz) |
| Continuous Allowable Input | 500 Arms |
| Maximum Allowable Peak Input | 700 A peak (non-continuous) |
| Amplitude Accuracy | ±1.0% of reading ±5 mV f.s. (DC, 45 to 66 Hz, 0 to 500 Arms), ±2% of reading (DC, 45 to 66 Hz, 500 to 700 A peak) |
| Output | 0.1 V/A |
| Measurable Conductors | Insulated conductor |
| Core Diameter | φ0.79" (20 mm) |
| Power Supply | ±12 V ±0.5 V, 7.2 VA maximum |
| Product Length | 1.06" (27 mm) |
| Product Width | 6.93" (176 mm) |
| Product Height | 2.72" (69 mm) |
| Product Weight | 18.3 oz (520 g) |
What's included with the Hioki 3275
- Clamp-On Frequency Current Probe
- Carrying Case
- Instruction Manual
