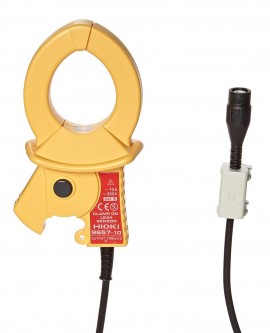

Hioki 9657-10 Clamp-On Leak Sensor, 10A AC
SKU: Oct-57
Availability: Regular Price Hioki 9657-10 Offers When you connect this Hioki 9657-10 Clamp-On Leak Sensor to your compatible Hioki model (sold separately), you’ll be able to measure leak current up to 10A AC. The sensor can even measure very weak current with its permeable magnetic core and magnetic shield. Features For use with the Hioki LR5051, PW3198 and similar models (sold separately) Designed to measure leak current up to 10A AC Capable o
Availability: Regular Price
Hioki 9657-10 Offers
When you connect this Hioki 9657-10 Clamp-On Leak Sensor to your compatible Hioki model (sold separately), you'll be able to measure leak current up to 10A AC. The sensor can even measure very weak current with its permeable magnetic core and magnetic shield.
Features
- For use with the Hioki LR5051, PW3198 and similar models (sold separately)
- Designed to measure leak current up to 10A AC
- Capable of handling up to 300Vrms
- Constructed with highly permeable magnetic material in the core and a magnetic shield to accurately measure very weak currents
- CE-compliant design
Hioki 9657-10 Specifications
Specifications
| Rated Primary Current | 10A AC |
| Maximum Allowable Input | 30A (continuous) |
| Rated Output Current | 100mV/A AC |
| Amplitude Accuracy | ±1% of reading, ±0.05% of full scale (45 to 66Hz) |
| Phase Accuracy | ±3° (at 50 or 60Hz) |
| Frequency | ±3% (40Hz to 5kHz ) |
| Maximum Rated Voltage to Earth | 300Vrms AC (insulated conductor, Cat III) |
| Core Diameter | φ1.57in (40mm) |
| CE Compliant | Yes |
| Product Length | 1.65in (42mm) main unit, 9.84ft (3m) cord |
| Product Width | 2.91in (74mm) |
| Product Height | 5.71in (145mm) |
| Product Weight | 13.4oz (380g) |
What's included with the Hioki 9657-10
- Clamp-On Leak Sensor
- Instruction Manual
