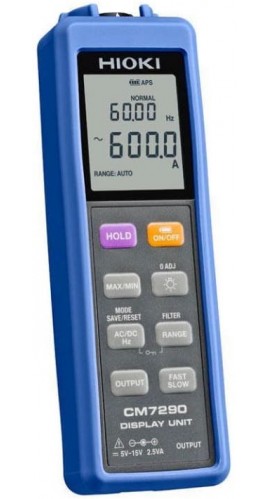

Hioki CM7290 Display Unit for CT7000 Series AC/DC Current Sensors
SKU: CM7290
Availability: Regular Price Hioki CM7290 Offers Connect this Hioki CM7290 Display Unit to your Hioki CT7040, CT7600 or CT7700 series AC/DC current sensor (sold separately) to view measured values, frequency and output rate on the dual display. The display can be powered by AA batteries, an AC adapter or an external power supply. Features Compatible with Hioki CT7040, CT7600 and CT7700 series AC/DC current sensors (sold separately) Offers a simu
Availability: Regular Price
Hioki CM7290 Offers
Connect this Hioki CM7290 Display Unit to your Hioki CT7040, CT7600 or CT7700 series AC/DC current sensor (sold separately) to view measured values, frequency and output rate on the dual display. The display can be powered by AA batteries, an AC adapter or an external power supply.
Features
- Compatible with Hioki CT7040, CT7600 and CT7700 series AC/DC current sensors (sold separately)
- Offers a simultaneous dual display of measured values, frequency and output rate
- Features 4 output formats to transfer data to loggers or other devices
- Powered by AA batteries, an AC adapter or external power supply
Hioki CM7290 Specifications
Specifications
| Input/Output and Measurement Specifications | |
| Measured Parameters | DC, AC, DC+AC, Frequency (Hz) |
| Measurement Method | True RMS measurement |
| Output Methods | WAVE, RMS, PEAK, FREQ |
| Output Impedance | 50Ω (±5%) |
| Input Connector | HIOKI PL14 |
| Display Refresh Times | FAST: 0.2 secNORMAL: 0.2 secSLOW: 1.0 sec (when using the Hz output method, SLOW: 3 sec) |
| Peak Output Refresh Times | FAST: 0.02 secNORMAL: 0.2 secSLOW: 1 sec |
| Frequent Output Refresh Times | FAST: 0.2 secNORMAL: 0.2 secSLOW: 3.0 sec (WAVE and RMS use analog output) |
| Peak Detection Interval | 2 ms or greater (with PEAK MAX, PEAK MIN, or PEAK output) |
| Zero Display Range | 29 count or less for AC and DC+AC RMS values |
| Crest Factor | 3 at 5000 count or 2.5 at 6000 count for AC and AC+DC |
| Typical Display Accuracy | DC: ±0.3% rdg. ±8 dgt.AC: ±0.3% rdg. ±8 dgt. (RMS)DC+AC: ±0.3% rdg. ±12 dgt. (RMS)Frequency: ±0.1% rdg. ±0.01 Hz |
| Typical Output Accuracy | DC: ±0.5% rdg. ±0.8 mVCurrent: ±0.5% rdg. ±0.8 mVDC+AC: ±0.5% rdg. ±1.2 mVFrequency: ±0.3% rdg. ±2.2 mV |
| General Specifications | |
| Operating and Storage Temperature | -13 to 149°F (-25 to 65°C) |
| Humidity Range | 80% RH (non-condensing, with batteries removed) |
| Dimensions | 2 x 6.4 x 1.5" (52 x 163 x 37 mm) |
| Weight | 7.76 oz (220 g) |
What's included with the Hioki CM7290
- Display Unit
- 2 x LR6 Alkaline Batteries
- Protector
- Instruction Manual
