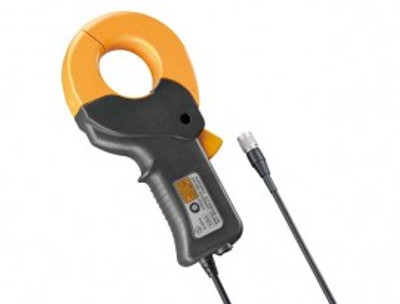

Hioki CT6844A AC/DC Current Probe, 500A
SKU: CT6844A
Availability: 7 to 8 Weeks Hioki CT6844A Offers Attach this Hioki CT6844 AC/DC Current Probe to your power meter, Memory HiCorder or high-performance oscilloscope to start measuring the charge and discharge efficiency of EV/HEV batteries and conversion efficiency of inverters and power conditioners. The probe measures AC and DC signals up to 500 A. Features Consistently and precisely tests currents across a vast temperature range of -40 to 185
Availability: 7 to 8 Weeks
Hioki CT6844A Offers
Attach this Hioki CT6844 AC/DC Current Probe to your power meter, Memory HiCorder or high-performance oscilloscope to start measuring the charge and discharge efficiency of EV/HEV batteries and conversion efficiency of inverters and power conditioners. The probe measures AC and DC signals up to 500 A.
Features
- Consistently and precisely tests currents across a vast temperature range of -40 to 185°F (-40 to 85°C)
- Designed to capture signals and test the efficiency of batteries, inverters and power conditioners
- Compatible with select power meters, Memory HiCorders and high-performance oscilloscopes
- Clamp-type design allows simple attachment and 1-handed operation
- Helps minimize the effects of magnetic fields, conductor position and nearby wire noise
- High precision with a ±0.3% amplitude accuracy and ±0.1° phase accuracy
Hioki CT6844A Specifications
Specifications
| Rated Current | 500 A (AC/DC) |
| Maximum Allowable Input | 720 A DC (requires derating) |
| Frequency Characteristics | DC to 200 kHz (amplitude), DC to 200 kHz (phase) |
| Power Consumption | 7 VA maximum (at 500 A/55 Hz, ±12 V power requirement) |
| Output Voltage | 4 mV/A |
| Core Diameter | φ0.79" (20 mm) |
| Power Supply | ±11 to ±15 VDC (power supplied via the sensor unit, which supports 100 to 240 VAC) |
| Operating Temperature | -40 to 185°F (-40 to 85°C) |
| Operating Humidity | 80% relative humidity or less (with no condensation) |
| Product Length | 0.98" (25 mm), 9.84' (3 m) cord |
| Product Width | 6.02" (153 mm) |
| Product Height | 2.64" (67 mm) |
| Product Weight | 14.1 oz (400 g) |
What's included with the Hioki CT6844A
- AC/DC Current Probe
- 6 x Mark Bands
- Carrying Case
- Instruction Manual
Hioki CT6844A AC/DC Current Probe, 500A. Get Free Shipping when you order online at EquipTestPro.com.
