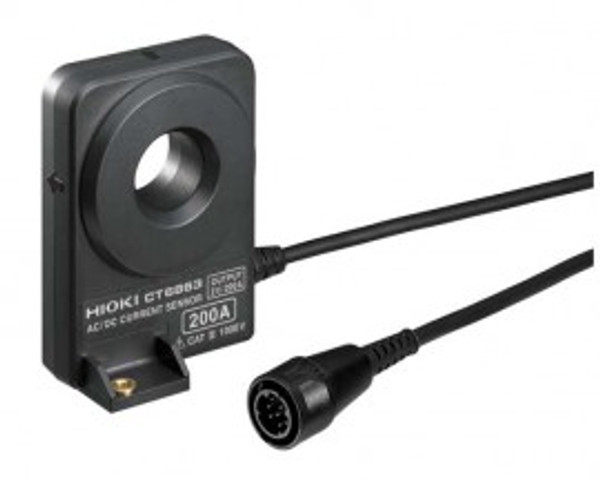

Hioki CT6863 AC/DC Current Sensor, 200A
SKU: CT6863
Availability: 2 to 3 Weeks Hioki CT6863 Offers Ideal for automobile applications, this Hioki CT6863 AC/DC Current Sensor measures AC/DC signals up to 200 A and DC to 500 kHz frequencies, so you can evaluate fuel cells and inverters. The sensor provides incredible precision and operates in temperatures from -22 to 185°F (-30 to 85°C). Features Designed to capture current signals up to 200 A from switching power supplies, inverters, power condit
Availability: 2 to 3 Weeks
Hioki CT6863 Offers
Ideal for automobile applications, this Hioki CT6863 AC/DC Current Sensor measures AC/DC signals up to 200 A and DC to 500 kHz frequencies, so you can evaluate fuel cells and inverters. The sensor provides incredible precision and operates in temperatures from -22 to 185°F (-30 to 85°C).
Features
- Designed to capture current signals up to 200 A from switching power supplies, inverters, power conditioners and more
- Measures DC to 500 kHz frequencies
- Compatible with power meters, Memory HiCorders and high-performance oscilloscopes
- Delivers incredibly high precision with ±0.05% amplitude accuracy and ±0.2° phase accuracy
- Operates in a wide temperature range of -22 to 185°F (-30 to 85°C)
- Use with a sensor unit to observe waveforms with oscilloscopes or Memory HiCorders
- Great for evaluating the secondary side of inverters as well as solar power generation and fuel cells to gauge battery charge and discharge
- CAT III 1,000 V
Applications
- Automobile Applications, Electric and Hybrid Electric Vehicles
Hioki CT6863 Specifications
Specifications
| Rated Current | 200 A AC/DC |
| Maximum Allowable Input | 400 A (requires derating) |
| Frequency Characteristics | Amplitude: DC to 500 kHz, Phase: DC to 300 kHz |
| Output Voltage | 2 V/rated current value |
| Maximum Rated Voltage to Earth | 1,000 VAC/VDC (50/60 Hz, Cat III) |
| Core Diameter | φ0.94" (24 mm) |
| Operating Temperature | -22 to 185°F (-30 to 85°C) |
| Operating Humidity | 80% relative humidity or less (with no condensation) |
| Power Supply | ±11 to ±15 VDC |
| Power Consumption | 6 VA maximum (at 200 A/55 Hz, ±12 V power requirement) |
| Compatibility | Hioki PW6001, 3390, 8971 (for MR8827, MR8847 series), 9602 (for 3193-10/3193/3194), 8940 (for Memory HiCorders, requires 9705 and 9318 conversion cables) |
| CE Compliant | Yes |
| Product Length | 2.09" (53 mm), 9.84' (3 m) cord |
| Product Width | 2.76" (70 mm) |
| Product Height | 3.94" (100 mm) |
| Product Weight | 12.3 oz (350 g) |
What's included with the Hioki CT6863
- AC/DC Current Sensor
- 6 x Mark Bands
- Instruction Manual
Hioki CT6863 AC/DC Current Sensor, 200A. Get Free Shipping when you order online at EquipTestPro.com.
