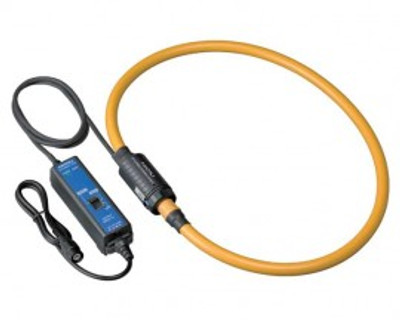

Hioki CT9667-02 Flexible AC Sensor, 7.09in Diameter

Availability: Regular Price

Hioki CT9667-02 Offers

When you use this Hioki CT9667-02 Flexible AC Sensor with your compatible Hioki power meter or Memory HiCorder, you can easily measure wires with currents up to 5,000 A. The sensor's extra-thin cable makes it easy to wrap around complicated wires in tight spots.

Features

• Capable of measuring large currents up to 5,000 A
• Boasts a 10 Hz to 20 kHz bandwidth with optimal frequency characteristics
• Made with extra-thin cables for comfortable looping around complicated wires
• Compatible with Hioki power meters and Memory HiCorders (sold separately)
• CAT IV 600 V, CAT III 1,000 V

Hioki CT9667-02 Specifications

Specifications

Rated Input Current	500/5,000 A
Maximum Allowable Input	10,000 A continuous (45 to 66 Hz, requires derating at frequency)
Bandwidth	10 Hz to 20 kHz (±3 dB)
Amplitude Accuracy	±2% of reading ±0.3% full scale (45 to 66 Hz, at center of flexible loop)
Phase Accuracy	±1° (45 to 66 Hz)
Output Voltage	500 mVAC/full scale (1 mVAC/A) at 500 A range, 500 mVAC/full scale (0.1 mVAC/A) at 5,000 A range
Maximum Rated Voltage to Earth	1,000 VAC (Cat III), 600 VAC (Cat IV)
Core Diameter	φ7.09" (180 mm)
Output Terminal	BNC
Operating Temperature	-13 to 149°F (-25 to 65°C)
Power Supply	2 AA batteries, 9445-02 or -03 AC adapter, 5 to 15 VDC external power supply
Dust and Water Resistance	IP54 (flexible loop only)
Cable Diameter	φ0.29" (7.4 mm)
Product Length	1.34" (34 mm) battery box, 6.56' (2 m) cable length, 3.28' (1 m) output cable
Product Width	1.38" (35 mm) battery box
Product Height	4.74" (120.5 mm) battery box
Product Weight	9.9 oz (280 g) battery box

What's included with the Hioki CT9667-02

• AC Sensor
• 2 x AA Batteries
• Instruction Manual
