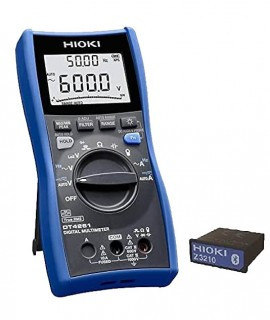

Hioki DT4261-90 Digital Multimeter with wireless adapter, 600 mV to 1000 V

Availability: Regular Price

Hioki DT4261-90 Offers

Features

• Helping personnel analyze issues in the field
• Boost work efficiency with digitalization (Excel® Direct Input Function)
• Ensuring safety by preventing erroneous test lead insertion (terminal shutters)
• Stop worrying about losing test lead caps
• Excellent dust and water resistance (compliant with the IP54 international standard)
• Accuracy guaranteed for one year

DC High V Probe Mode

• Enables high voltage measurement up to CAT III 2000 V
• Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2010 to compatible Hioki digital multimeters (DMMs)

Harmonic measurement

When combined with GENNECT Cross (*1), you can perform simple harmonic analysis. Applications include problem analysis of power supply systems.

*1: GENNECT Cross is an free app that lets you connect field measuring instruments to smartphones and tablets using Bluetooth® communications. Wireless Adapter Z3210 (sold separately) is required in order to pair the instrument with GENNECT Cross.

Wireless support

When the Wireless Adapter Z3210 is installed, Bluetooth® wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Excel® Direct Input Function (*2)

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel®.

*2: The optional Wireless Adapter Z3210 is required.

Fuse check function

When switching from the clamp function to the current function, a fuse disconnection check is automatically performed.

This allows the user to know if the fuse is broken before current measurement, which prevents erroneous measurement.

Terminal shutters

Due to the current terminal’s low impedance, measuring voltage after erroneously inserting a test lead into the current terminal will cause the fuse to blow. The DT4261’s terminal shutters are linked to the instrument’s rotary switch such that they block access to test lead terminals that aren’t being used, making it physically impossible to insert a lead into the wrong terminal.

Stop worrying about losing test lead caps

Test Lead L9300 incorporate integrated caps for greater convenience and safety. The design lets you change the measurement category simply by sliding the test lead’s protective finger guard. You no longer have to worry about losing caps!

Hioki DT4261-90 Specifications

Specifications

DC Voltage Range	600.0 mV to 1000 V, 5 rangesBasic accuracy: ±0.15% rdg. ±2 dgt.
AC Voltage Range	6.000 to 1000 V, 4 rangesFrequency characteristics: 40 Hz to 1 kHzBasic accuracy 40 – 500 Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
DC + AC Voltage Range	6.000 to 1000 V, 4 rangesFrequency characteristics: DC, 40 Hz to 1 kHzBasic accuracy DC, 40 – 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)
LoZ V	600.0 V, 1 rangeFrequency characteristics: DC, 40 Hz to 1 kHzBasic accuracy DC, 40 – 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)
Resistance Range	600.0 Ω to 60.00 MΩ, 6 rangesBasic accuracy: ±0.7% rdg. ±3 dgt.
DC Current Range	600.0 mA to 10.00 A, 3 rangesBasic accuracy: ±0.5% rdg. ±3 dgt.
AC Current Range	600.0 mA to 10.00 A, 3 rangesBasic accuracy 40 – 500 Hz: ±1.4% rdg. ±3 dgt. (True RMS, crest factor 3 or less)Frequency characteristics: 40 Hz to 1 kHz
AC Current Range (use with Clamp-On Probes)	10.00 to 1000 A, 7 rangesBasic accuracy 40 – 500 Hz: Add Clamp-on probe accuracy to ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
Capacitance Range	1.000 μF to 10.00 mF, 5 rangesBasic accuracy: ±1.9% rdg. ±5 dgt.
Continuity Check	Threshold ON: 25 ΩThreshold OFF: 245 ΩResponse time: 0.5 ms or more
Diode Test	Open terminal voltage: 2.0 V or lessTest current: 0.2 mA or lessForward voltage threshold: 0.15 V to 1.8 V
Voltage Frequency Range	99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage)Basic accuracy: ±0.1% rdg. ±1 dgt.
Current Frequency Range	99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current)Basic accuracy: ±0.1% rdg. ±1 dgt.
Harmonic Levels	[With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio Displayed via GENNECT Cross app
Other Functions	Mis-insertion prevention shutters, fuse check, user setting retention, filter, zero-adjustment, hold, auto hold, MAX/MIN, PEAK, auto-power save, USB (with DT4900-01), wireless (with Z3210)
Display	Main + sub display: 4-digit LCD, max 6000 counts (excl. frequency), bar graph
Display Refresh Rates	5 times/s (Capacitance: 0.05–5 times/s depending on value; Frequency: 1–2 times/s)
Power Supply	3 x LR6 (AA)Operating time:130 hr (no Z3210)70 hr (with Z3210 + wireless)
Dimensions	3.43 x 7.28 x 1.85" (87 x 185 x 47 mm)
Weight	16.9 oz. (480 g), with test leads holder and batteries

What's included with the Hioki DT4261-90

• Digital Multimeter
• Wireless Adapter Z3210
• Test Lead L9300
• 3 x LR6 (AA) Alkaline Battery
• Instruction Manual
• Operating Precautions
