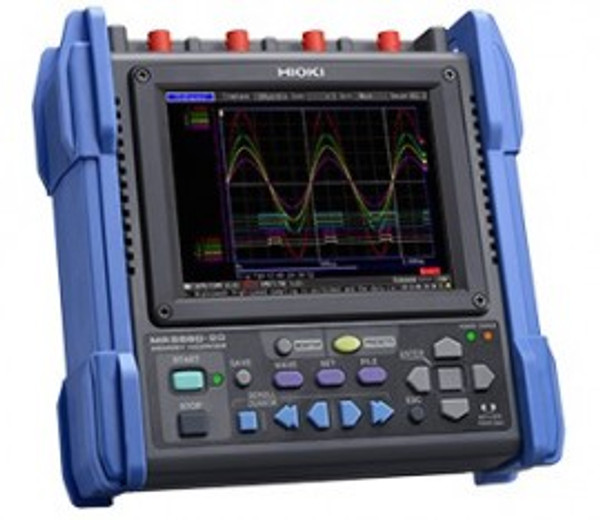

Hioki MR8880-20 PRO Memory HiCorder, 4 MW

Availability: 5 to 6 Weeks

Hioki MR8880-20 PRO Offers

When you need reliable, high-speed waveform monitoring, you need to use the Hioki MR8880-20 PRO Memory HiCorder. This handheld data acquisition recorder comes with 4 built-in analog channels, making it suitable for a variety of tasks, like elevator maintenance, testing, inspections and more. Plus, its large 4 MW memory capacity ensures that this tool will be able to keep up with your applications. This HiCorder is CE compliant.

Features

• Accurately records waveforms and RMS values at fast operating speeds
• Different operating modes allow for best fit with your application(s)
• Saves your data to external drive so you can view it on a compatible PC
• PC application (included) allows you to synchronize your equipment for simultaneous, multi-channel measurement
• Compact design makes for convenient installation and operation
• Carrying case included for safe, secure transportation to worksites
• Comes with accessories for instant, user-friendly operation, including strap, USB cable and more
• Added preset function speed up configuration so you can focus on what's important
• LCD provides clear, easy data monitoring

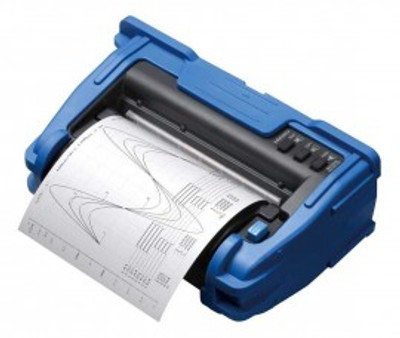

• Offers instant printing capabilities so you can produce a data report at any jobsite

Applications

• Elevator Maintenance, Machine/Motor/Inverter Fault Analysis, Testing and Inspections, Monitoring Commercial Power Lines

Hioki MR8880-20 PRO Specifications

Specifications

Channel Amount	4 analog8 logic
Measurement Range	10 mV to 100 V/div (10 div full scale)13 ranges, resolution 1/640 of range
Maximum Rated Voltage	Between terminals: 600 V AC/DCBetween terminals to earth: 600 V AC/DC, DC CAT III, 300 V AC/DC CAT IV
Frequency	DC to 100 kHz (±3 dB)
Time Axis	100 μs to 5 minutes/div20 ranges at 100 points/div resolution3 steps of time-axis magnification from x2 to x109 steps of time-axis compression from x1/2 to x1/1,000
Recording Interval	100 ms to 1 minute19 settings (simultaneous sampling in all channels)
Display	5.7" (14.48 cm)VGA-TFT color LCD (640 x 480 dots)
Approval & Compliance	Approuval: CECompliance: 3 years
Storage & Interface	Storage: CF card type I slot (up to 2 GB), USB 2.0 memoryMemory: 14 bits x 1 MW/channelInterface: USB 2.0 mini-B receptacle
Power Supply	AC adapter Z1002: 100 to 240 V AC, 50/60 HzBattery pack Z1000: ~3 hours8 AA alkaline: 40 minutesDC: 10 to 28 V DC
Dimensions	Length: 1.2.64" (67 mm) depth excluding printer Width: 8.07" (205 mm) excluding printer Height: 7.83" (199 mm) excluding printer

What's included with the Hioki MR8880-20 PRO

• Memory HiCorder
• C1003 Carrying Case
• Z1000 Battery Pack
• 9729 Flash Card (1 GB)
• 4 x L9197 Alligator Test Leads
• Instruction Manual
• Z1002 AC Adapter
• Strap
• USB Cable
• Application Disc
• Alkaline Battery Box
