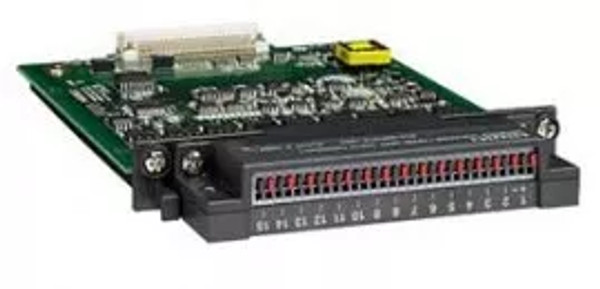

Hioki MR8902 Memory HiCorder Voltage/Temperature Module, 15 Channels

Availability: 2 to 3 Weeks

Hioki MR8902 Offers

When you connect this Hioki MR8902 Memory HiCorder Voltage/Temperature Module to your Memory HiCorder MR8875 model, you'll be able to measure minute voltage and temperature waveforms across 15 channels. The data is monitored with 16-bit resolution.

Features

• Compatible with Memory HiCorder MR8875 model (sold separately)
• Designed to measure minute voltage and temperature waveform with 16-bit resolution
• Isolated input offers accurate measurements
• Can be used with 0.32 to 0.65 mm single wires, 0.08 to 0.32 mm2stranded wires and 28 to 22 AWG wires
• Measures voltage 500 μV to 5 V/div across 9 ranges
• Compatible with K, J, E, T, N, R, S, B and WRe5-26 thermocouples (sold separately)

Hioki MR8902 Specifications

Specifications

Number of Channels	15
Input Connectors	Push-button terminal (voltage/thermocouple)
Input Resistance	1 MΩ
Maximum Rated Voltage to Earth	100 VAC/VDC
Voltage Measurement Range	500 μV to 5 V/div with 9 ranges, 1/1,000 of measurement range resolution (using 16-bit A/D converter) and ±0.1% f.s. accuracy (with digital filter ON, Zero position accuracy included)
Thermocouple Type	K, J, E, T, N, R, S, B, WRe5-26
Digital Filter	50 Hz, 60 Hz, off
Data Refresh Rate	10 ms (with filter off, burn-out detection off), 20 ms (with filter off, burn-out detection on), 500 ms (with filter on, fast data refresh rate), 2 s (with filter on, normal data refresh rate)
Maximum Allowable Input	100 VDC
CE Compliant	Yes
Product Length	7.28" (184.8 mm)
Product Width	4.7" (119.5 mm)
Product Height	0.74" (18.8 mm)
Product Weight	6.7 oz (190 g)
Manufacturer Warranty	3 years

What's included with the Hioki MR8902

• Voltage/Temperature Module
• 2 x Ferrite Clamps
