Hioki P9000-02 Memory HiCorder Differential Probe, DC to 100kHz Waveform, 30Hz to 10kHz RMS
SKU: P9000-02
Availability: 2 to 3 Weeks Hioki P9000-02 Offers Easily measure waveforms of high-voltage circuits, commercial power lines and surge noise with this Hioki P9000-02 Memory HiCorder Differential Probe. The probe connects to a compatible Memory HiCorder through an analog input terminal and features 2 alligator clips for simple connection to wires. Features Measures waveforms instantaneously Ideal for measuring high-voltage battery circuits in EVs
Availability: 2 to 3 Weeks
Hioki P9000-02 Offers

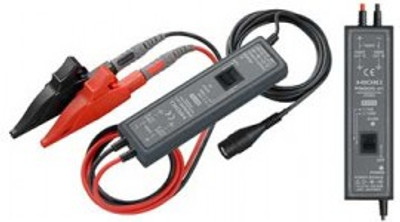

Easily measure waveforms of high-voltage circuits, commercial power lines and surge noise with this Hioki P9000-02 Memory HiCorder Differential Probe. The probe connects to a compatible Memory HiCorder through an analog input terminal and features 2 alligator clips for simple connection to wires.
Features
- Measures waveforms instantaneously
- Ideal for measuring high-voltage battery circuits in EVs, HEVs and other vehicles, high-voltage circuits in energy-related equipment, commercial power lines and high-voltage surge noise from motors, solenoids and inverters
- Works well in Cat III 1,000 V environments
- Connects to the analog input terminal of compatible Memory HiCorder models
- Powered by an AC adapter, USB bus power or other power source
- CE-compliant design
Hioki P9000-02 Specifications
Specifications
| Measurement Functions | Waveform Monitor Output: DC to 100 kHz (-3 dB), RMS Mode Frequency: 30 Hz to 10 kHz |
| Division Ratio | 1,000:1 or 100:1 (user selectable) |
| DC Amplitude Accuracy | ±0.5% of full scale (1,000:1 voltage division ratio, full scale = 1 V) (100:1 voltage division ratio, full scale = 3.5 V) |
| Input Resistance | 10.5 MΩ (between H and L) |
| Input Capacity | 5 pF or less (at 100 kHz) |
| Maximum Allowable Input | 1,000 VAC/VDC |
| Maximum Rated Voltage to Earth | 1,000 VAC/VDC (Cat III) |
| Power Supply | Z1008 AC adapter (100 to 240 VAC, 50/60 Hz), USB bus power (5 VDC, USB micro-b port), 2.7 to 15 VDC external power supply |
| Operating Temperature | -40 to 176°F (-40 to 80°C) |
| Product Length | 0.87" (22 mm), 2.3' (70 cm) input cord, 4.92' (1.5 m) output cord |
| Product Width | 5.04" (128 mm) |
| Product Height | 1.42" (36 mm) |
| Product Weight | 6 oz (170 g) |
What's included with the Hioki P9000-02
- Differential Probe
- 2 x Alligator Clips
- Instruction Manual
