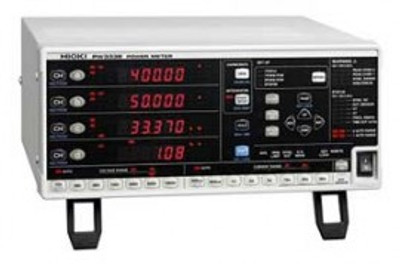

Hioki PW3336-03 2-Channel Benchtop AC/DC Power Meter with GP-IB Interface, 15 to 1000 V, D/A Output
SKU: PW3336-03
Availability: 2 to 3 Weeks Hioki PW3336-03 Offers Use Hioki PW3336-03 2-Channel Benchtop AC/DC Power Meter with GP-IB Interface to measure power on a variety of electrical equipment, including household items and industrial components. Offering coverage for DC to inverter frequencies and voltages up to 1,000 V, the meter is a welcome addition to your shop. The meter delivers precise results with basic accuracy of ±0.1%. Features Measures singl
Availability: 2 to 3 Weeks
Hioki PW3336-03 Offers
Use Hioki PW3336-03 2-Channel Benchtop AC/DC Power Meter with GP-IB Interface to measure power on a variety of electrical equipment, including household items and industrial components. Offering coverage for DC to inverter frequencies and voltages up to 1,000 V, the meter is a welcome addition to your shop. The meter delivers precise results with basic accuracy of ±0.1%.
Features
- Measures single- to 3-phase power lines with precision
- Ideal for use with single-phase devices, like household electronics and battery-powered devices, as well as 3-phase electrical equipment with 2 input channels
- Covers DC to inverter frequencies with voltage support for up to 1,000 V and direct-input currents of up to 65 A
- Meets the SPECpower® benchmark for server power consumption
- Covers a wide frequency bandwidth from 0.1 Hz to 100 kHz or DC
- Analyzes harmonic measurement up to the 50th order, which meets IEC 61000-4-7 standards
- Features built-in external sensor input terminals to handle up to 5,000 A AC
- Measure multiple units with the meter's ability to synchronize up to 8 units
Hioki PW3336-03 Specifications
Specifications
| Number of Channels | 2 |
| Measurement Lines | Single-phase 2-wiresSingle-phase 3-wires3-phase 3-wires |
| Measurement Items | VoltageCurrentActive powerApparent powerReactive powerPower factorPhase angleFrequencyEfficiencyCurrent integrationActive power integrationIntegrated timeVoltage waveform peak valueCurrent waveform peak valueVoltage crest factorCurrent crest factorTime average currentTime average active powerVoltage ripple factorCurrent ripple factor |
| Voltage Measurement Range | 15 to 1000 V (AC/DC), 7 ranges |
| Current Measurement Range | 200 mA to 50 A (AC/DC), 8 ranges |
| Power Measurement Range | 3.0000 W to 100.00 kW |
| Synchronization Frequency Range | 10 to 640 Hz |
| Input Resistance (50/60Hz) | Voltage: 2 MΩCurrent: 1 mΩ or less (direct input) |
| Number of Displayed Digits | 6 (current, from 0.00000 mAh), 6 (active power, from 0.00000 mWh) |
| Basic Accuracy (Active Power) | ±0.1% of reading ±0.1% full scale (DC)±0.1% of reading ±0.05% full scale (45 to 66 Hz, at input <50%) ±0.15% of reading (45 to 66 Hz, at 50% full scale ≤input) |
| Display Refresh Rate | 5 times/s to 20 seconds |
| Frequency Characteristics | DC, 0.1 Hz to 100 kHz |
| Interface | LAN, RS-232C, GP-IB |
| Power Supply | 100 to 240 VAC, 50/60 Hz, 40 VA maximum |
| D/A Output | 16 selectable channels, including:±2 VDC level output1 V full scale waveform level outputInstantaneous waveform output (voltage, current, active power)Level output (apparent power, reactive power, power factor, other)High-speed active power level output |
| Dimensions | 10.08 x 12.01 x 5.2" (25.6 x 30.5 x 13.2 cm) |
| Weight | 11.46 lbs (5.2 kg) |
What's included with the Hioki PW3336-03
- Benchtop AC/DC Power Meter
- Power Cord
- Measurement Guide
- Instruction Manual
