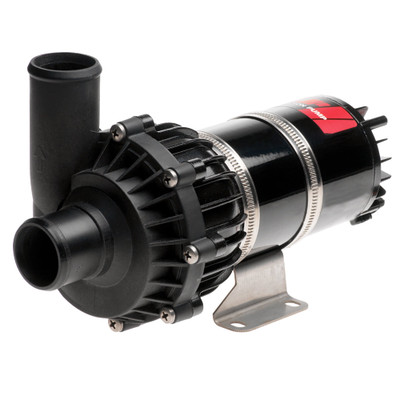

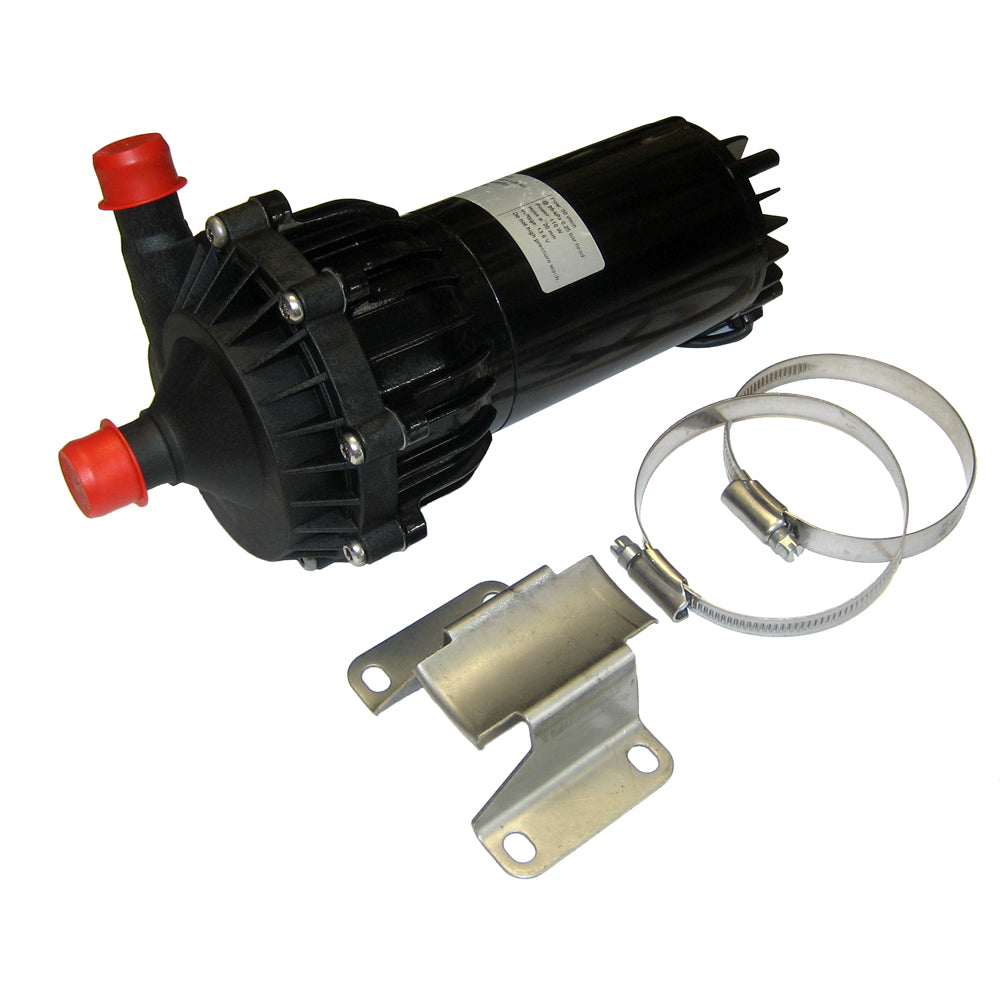

Johnson Pump CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

Availability: In Stock

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

• System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar

• Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water

• Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor

• Dry running: 30 minutes

• Dimensions: 244mm L x 120mm W x 150mm H

• Weight: 6.6lbs

• Capacity: 17.2 GPM

• Ports: 3/4"

Specifications

Manufacturer Part Number	10-24750-09
UPC	7330717013172
Shipping Weight	6.7 lb
