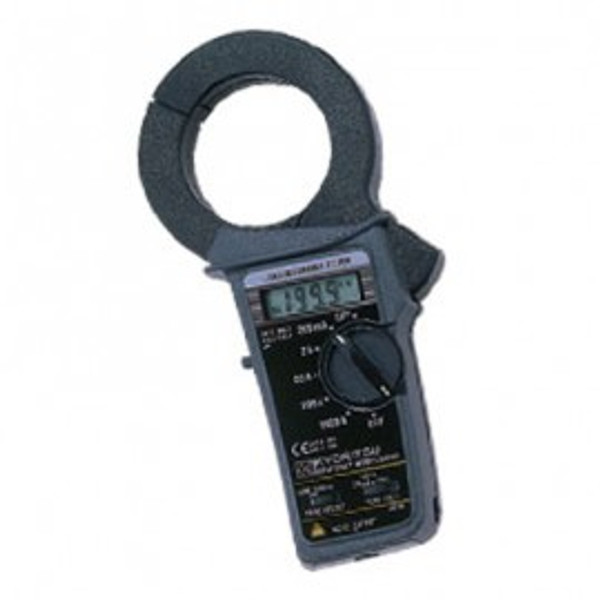

Kyoritsu 2413F Leakage Clamp Meter, 1000A/0.1mA

No reviews yet Write a Review
$1,005.31
SKU:
2413F
Availability:
3 to 4 Weeks
5 customers are viewing this product

Kyoritsu 2413F Leakage Clamp Meter, 1000A/0.1mA

$1,005.31

Availability: 3 to 4 Weeks

Kyoritsu 2413F Offers

Features

  • Current measurements up to 1000A AC
  • Large jaws for testing multiple phases at a time
  • Frequency selector switch to eliminate effect of harmonics
  • Data-hold function
  • Two way analogue output terminal
  • Peak-hold function
  • Minimizes the effects of stray magnetic fields
  • Rotary switch for easy one finger operation

Applications

  • Earth fault current measurement
  • Electrical safety compliance testing
  • Medical device safety testing
  • Process loop monitoring
  • General AC load monitoring
  • Industrial troubleshooting checks


Kyoritsu 2413F Specifications

Specifications

AC A (50/60Hz)
Ranges200mA 2A 20A 200A 1000A
Accuracy200mA/2/20A: ±1.5%rdg ±2dgt 200A/500A: ±2%rdg ±2dgt 1000A: ±5.5%rdg
AC A (WIDE)
Ranges200mA 2A 20A 200A 1000A
Accuracy200mA/2/20A 50/60Hz: ±1%rdg ±2dgt 40Hz to 1kHz: ±3%rdg ±2dgt 200A/500A 50/60Hz: ±2%rdg ±2dgt 40Hz to 1kHz: ±3.5%rdg ±2dgt 1000A 50/60Hz: ±5.5%rdg 40Hz to 1kHz: ±10%rdg
General Specifications
Conductor SizeØ68mm max.
Effect of External Stray Magnetic Field: Ø15mm 100A10mA AC max.
Frequency Response40Hz to 1kHz
OutputWaveform: AC200mV against the maximum value of each range (1000A range is 100mV) Recorder: DC200mV against the maximum value of each range (1000A range is 100mV)
Withstand Voltage3700V AC for 1 minute
Applicable StandardIEC 61010-1 CAT III 300V IEC 61010-2-032
Power Source9V 6F22 Battery
Continuous Measuring TimeApprox. 60 hours
Dimensions250 x 130 x 50 mm
WeightApprox. 570 g


What's included with the Kyoritsu 2413F
  • Leakage Clamp Meter
  • Carrying Case
  • 6F22 Battery
  • Instruction Manual
