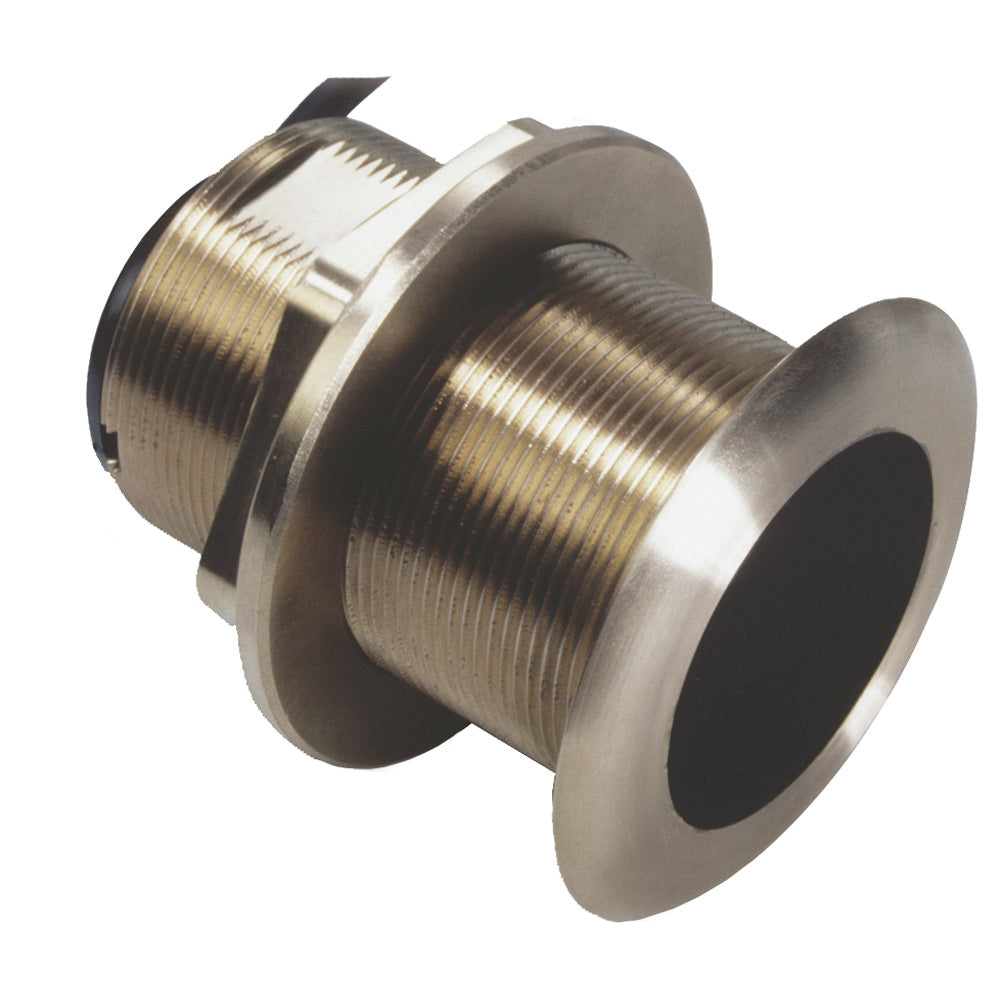

Lowrance B60-12, 12° Tilted Element™ Transducer

No reviews yet Write a Review
$363.99
SKU:
B60-12-BL
UPC:
9780031578105
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Lowrance B60-12, 12° Tilted Element™ Transducer

$363.99

Lowrance B60-12, 12° Tilted Element™ Transducer Product Description

600 W

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles


B60 Tilted Element™ 12°

12° tilted version is designed for 8° - 15° deadrise angles

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:
  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze


Inside the housing, the ceramic element is tilted to provide built-in dead angle compensation. The resulting vertical beam provides an excellent echo, resulting in a more accurate depth...

Lowrance 12' Extension Cable
Lowrance 20' Transducer Extension Cable
Airmar 60WR-2 Transducer Hull Nut Wrench
Airmar 60WR-4 Transducer Housing Wrench
Airmar 60WR-1 Crows Foot Transducer Wrench
Airmar 60WR-3 Double Handle Transducer Wrench
Airmar Deadrise Angle Finder - Accuracy of ± 1/2°
Navico Adapter 7-Pin Blue Transducer to a 9-Pin Black Unit
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - White
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Black


Lowrance B60-12, 12° Tilted Element™ Transducer

Lowrance
How to describe Lowrance B60-12, 12° Tilted Element™ Transducer
What is the power rating of the product
Which mix and match cable useful for this product
What is the transducer functions of the product
In which country this product made in
What is the frequency band of the product
How many pins exists in the connector of the product
What's the Lowrance B60-12, 12° Tilted Element™ Transducer package dimensions and weight
What is the sensor connector of the product
Speed feature included to the product
How to mount or what is the mounting style of Lowrance B60-12, 12° Tilted Element™ Transducer
This product can read the temprature
Is this product single or dual frequency
What is the tilt angle of the product
What is the connector type of the product
What is the length of cable (feet)
What is the length of cable
What is the display connector of the product
What is the imagining type of the product
What is the common use place of the product
What is the housing material of the product
Is this product supporting CHIRP and what's the type
What is the max depth of the product
What is the deadrise range of product
What is the hole size of the product
This product has tilted element
Which hull material is proper for this product
What is the usable shaft length of the product
What is the max deadrise of the product
What is the max deadrise angle of the product
What is the manufacturer notes about Lowrance B60-12, 12° Tilted Element™ Transducer

Lowrance

Lowrance Electronics, Inc., has been a world leader in the design, manufacture and marketing of high-quality sport fishing SONAR and Global Positioning System (GPS) mapping instruments for over 45 years. With nearly 45 years continuous manufacturing experience, Lowrance designs products that provide the ultimate in high-performance features at highly competitive prices. Lowrance products are used by both sport fisherman and recreational boaters.

How to describe Lowrance B60-12, 12° Tilted Element™ Transducer

600 W

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles

What is the power rating of the product

600 W

Which mix and match cable useful for this product

5-Pin 600 Watt

What is the transducer functions of the product

Depth, Temperature

In which country this product made in

USA

What is the frequency band of the product

50/200 kHz

How many pins exists in the connector of the product

7

What's the Lowrance B60-12, 12° Tilted Element™ Transducer package dimensions and weight

8 (w) X 4 (h) X 10 (l) inches and the weight is: 4.5 lb.

What is the sensor connector of the product

MM

Speed feature included to the product

No

How to mount or what is the mounting style of Lowrance B60-12, 12° Tilted Element™ Transducer

Tilted Element Thru-Hull

This product can read the temprature

Yes

Is this product single or dual frequency

Conventional Dual Frequency

What is the tilt angle of the product

12°

What is the connector type of the product

Lowrance 7-Pin

What is the length of cable (feet)

30'

What is the length of cable

10 m (33')

What is the display connector of the product

BL

What is the imagining type of the product

Standard

What is the common use place of the product

Leisure/Yachting, Fishing

What is the housing material of the product

Bronze

Is this product supporting CHIRP and what's the type

No

What is the max depth of the product

Low frequency- 366 m (1200'), High frequency- 206 m (700')

What is the deadrise range of product

8° to 15°

What is the hole size of the product

60 mm (2-3/8")

This product has tilted element

Yes

Which hull material is proper for this product

Fiberglass or wood

What is the usable shaft length of the product

68.5 mm (2.70")

What is the max deadrise of the product

Up to 24°

What is the max deadrise angle of the product

24°

What is the manufacturer notes about Lowrance B60-12, 12° Tilted Element™ Transducer

600 W

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles


Buy with the best price Lowrance B60-12, 12° Tilted Element™ Transducer for only $324 from NVN Marine! Same day shipping before 3pm.

Lowrance B60-12, 12° Tilted Element™ Transducer Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Lowrance

Weight:

4.85 lb

Temperature:

Yes

Speed Included:

No

Pins:

7

Mounting Style:

Thru-Hull

Imagining:

Standard

Chirp:

No

Cable Length (Feet):

30'

User Guide:

Download PDF

Product Manual:

Download PDF

Product Brochure:

Download PDF

Product Installation:

Download PDF
