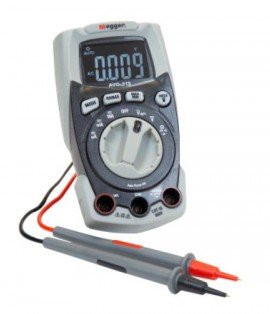

Megger AVO215 True RMS AC/DC Digital Multimeter, 600V

Availability: Regular Price

Megger AVO215 Offers

The AVO215 includes such user-friendly features as auto and manual ranging, data hold, MAX/MIN recording, and a built-in flashlight, enhancing usability in diverse working conditions. It meets CAT III 600 V AC/DC safety standards and is designed to withstand drops up to 2 meters, ensuring reliability in harsh environments.

Features

• All AC function measurements are True RMS, ensuring precise readings in complex electrical systems
• AC/ DC voltages up to 600 V
• AC/ DC current up to 10 A
• Resistance measurements from 0 to 40 MΩ with capacitance measurements from 0 to 4000 µF
• Frequency measurements between 10 Hz and 10 kHz
• Duty cycle function allows the ratio of time that a circuit is energized compared to the time the circuit is de-energised to be displayed, expressed as a percentage of circuit on time
• Continuity function provides audio and visual results
• Diode test allows forward and reverse bias testing of diode and semiconductor junctions
• Auto range or manual range selection
• 4000 count high contrast negative display with backlight for easy-to-read results in all lighting conditions
• Datahold feature ensures a displayed result can be frozen on the display
• Max/Min function means the user does not have to be continually monitoring the display to capture any momentary increase or fall in readings
• Built-in flashlight
• Rear tilt stand
• CATIII 600 V safety rating

Applications

• Ideal for electricians performing installation checks, troubleshooting, and maintenance of electrical systems, ensuring compliance with safety standards.
• Suitable for testing and maintaining industrial machinery, motors, and control systems, providing accurate measurements essential for operational efficiency.
• Assists HVAC technicians in diagnosing and servicing heating, ventilation, and air conditioning systems by measuring electrical parameters accurately.
• Useful for automotive technicians to test vehicle electrical circuits, batteries, and charging systems, aiding in effective diagnostics and repairs.

Megger AVO215 Specifications

Specifications

DC Voltage
400 mV	Resolution: 0.1 mV Accuracy: ±(1.0% reading + 5 digits)
4 V	Resolution: 0.001 V Accuracy: ±(1.0% reading + 3 digits)
40 V	Resolution: 0.01 V Accuracy: ±(1.0% reading + 3 digits)
400 V	Resolution: 0.1 V Accuracy: ±(1.0% reading + 3 digits)
600 V	Resolution: 1 V Accuracy: ±(1.0% reading + 3 digits)
AC Voltage
4 V	Resolution: 0.001 V Accuracy: ±(1.2% reading + 5 digits)
40 V	Resolution: 0.01 V Accuracy: ±(1.2% reading + 5 digits)
400 V	Resolution: 0.1 V Accuracy: ±(1.2% reading + 5 digits)
600 V	Resolution: 1 V Accuracy: ±(1.2% reading + 5 digits)
Note	All AC voltage ranges are specified from 5 of range to 100% of range
DC Current
400 µA	Resolution: 0.1 µA Accuracy: ±(1.0% reading + 3 digits)
4000 µA	Resolution: 1 µA Accuracy: ±(1.0% reading + 3 digits)
40 mA	Resolution: 0.01 mA Accuracy: ±(1.2% reading + 3 digits)
400 mA	Resolution: 0.1 mA Accuracy: ±(1.2% reading + 3 digits)
4 A	Resolution: 0.001 A Accuracy: ±(1.2% reading + 3 digits)
10 A	Resolution: 0.01 A Accuracy: ±(1.8% reading + 5 digits) (20 A: 30 seconds maximum with reduced accuracy)
Note	(20 A: 30 seconds maximum with reduced accuracy)
AC Current
400 µA	Resolution: 0.1 µA Accuracy: ±(1.2% reading + 3 digits)
4000 µA	Resolution: 1 µA Accuracy: ±(1.2% reading + 3 digits)
40 mA	Resolution: 0.01 mA Accuracy: ±(1.5% reading + 5 digits)
400 mA	Resolution: 0.1 mA Accuracy: ±(1.5% reading + 5 digits)
4 A	Resolution: 0.001 A Accuracy: ±(1.8% reading + 5 digits)
10 A	Resolution: 0.01 A Accuracy: ±(1.8% reading + 5 digits)
Note	(20 A: 30 seconds maximum with reduced accuracy)
Resistance
400 Ω	Resolution: 0.1 Ω Accuracy: ±(1.5% reading + 5 digits)
4 kΩ	Resolution: 0.001 kΩ Accuracy: ±(1.5% reading + 5 digits)
40 kΩ	Resolution: 0.01 kΩ Accuracy: ±(1.5% reading + 5 digits)
400 kΩ	Resolution: 0.1 kΩ Accuracy: ±(1.5% reading + 5 digits)
4 MΩ	Resolution: 0.001 MΩ Accuracy: ±(2.5% reading + 20 digits)
40 MΩ	Resolution: 0.01 MΩ Accuracy: ±(2.5% reading + 20 digits)
Capacitance
40 nF	Resolution: 0.01 nF Accuracy: ±(4.5% reading + 10 digits)
400 nF	Resolution: 0.1 nF Accuracy: ±(3.0% reading + 5 digits)
4 µF	Resolution: 0.001 µF Accuracy: ±(3.0% reading + 5 digits)
40 µF	Resolution: 0.01 µF Accuracy: ±(5% reading + 5 digits)
400 µF	Resolution: 0.1 µF Accuracy: ±(5% reading + 5 digits)
4000 µF	Resolution: 1 µF Accuracy: ±(5% reading + 5 digits)
Frequency
10 Hz to 10 kHz	Resolution: 0.01 HzAccuracy: ±(1.2% reading)Sensitivity: 15 V rms
Duty Cycle
0.1 to 99.9%	Resolution: 0.1 %Accuracy: ±(1.2% reading + 2 digits)Note: Pulse width: 100 µs to 100 msFrequency: 5 Hz to 150 kHz
General Specifications
Diode Test	Test current of 1.5 mA max, open circuit voltage 3 V DC typical
Continuity Check	Audible signal if resistance <50 Ω (approx.), test current <0.35 mA
Input Impedance	>10 MΩ (V DC / V AC)
AC Response	True RMS
ACV Bandwidth	50/60 Hz (all waveforms)45 to 1000 Hz (sine wave)
Crest Factor	≤3 at full scale up to 300 V, decreasing linearly to ≤1.5 at 600 V
Display	4000 counts / positive display
Overrange Indication	OL' is displayed
Polarity	Automatic, minus symbol for negative values
Measurement Rate	3 times per second
Fuses	mA / µA ranges: 0.5 A 600 V ceramic quick blowA range: 10 A 600 V ceramic quick blow
Environmental Conditions	Operating temperature: 41 to 104 °F (5 to 40 °C)Storage temperature: -4 to 140 °F (-20 to 60 °C)Operating humidity: Max 80% up to 87°F (31°C), decreasing linearly to 50% at 104°F (40 °C)Storage humidity: <80%Operating altitude: ≤7000' (2000 m)Drop test: 6.5' (2 m)
Safety Rating	IEC61010, CAT III 600 V
Battery	2 x 1.5 V AAA
Dimensions	182 x 82 x 59 mm
Weight	0.753 lbs (342 g)

What's included with the Megger AVO215

• AVO215TRMS Digital Multimeter
• Test Leads
• Protective Carry Pouch
