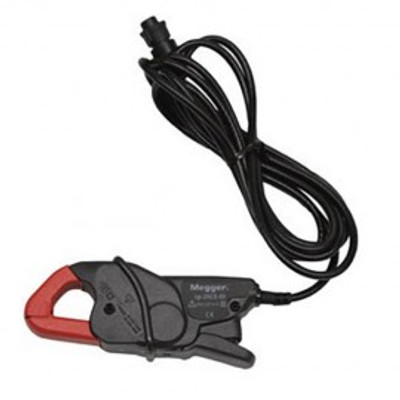

Megger CP-600DC-ID-KIT Hall Effect Current Clamps, 3-Pack
SKU: CP-600DC-ID-KIT
$4,183.20
Availability: 2 to 3 Weeks Megger CP-600DC-ID-KIT Offers This is self-identifying when used on MPQ. Features Supports 600A DC and 400A AC ranges Powered by main unit – additional connections or batteries not required Inner diameter: 1.97in (50mm) Cord length: 6ft (1.82m) Megger CP-600DC-ID-KIT Specifications Current Range 600A Measurement Range 1 to 400A AC, (600A peak), 1 to 600A DC Frequency Range dc to 10kHz @ -3 dB Max. Working Voltage 600
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 2 to 3 Weeks
Megger CP-600DC-ID-KIT Offers
This is self-identifying when used on MPQ.
Features
- Supports 600A DC and 400A AC ranges
- Powered by main unit - additional connections or batteries not required
- Inner diameter: 1.97in (50mm)
- Cord length: 6ft (1.82m)
Megger CP-600DC-ID-KIT Specifications
| Current Range | 600A |
| Measurement Range | 1 to 400A AC, (600A peak), 1 to 600A DC |
| Frequency Range | dc to 10kHz @ -3 dB |
| Max. Working Voltage | 600V rms |
| Output Signal | 1mV/A |
| Crest Factor (Mid-range) | 9 |
| Style | Clamp |
| Length | 9ft (2.74m) cable |
| Inside Diameter, Max | 2in (50.8mm) |
| Accuracy | 1.5% of rdg, ±1A (1 to 100A), 2% of rdg (100 to 400A), 2.5% of rdg, (400 to 600A DC only) |
| Phase Shift | 10 to 200A: ≤2.5°; 200 to 400A: ≤2°; 45 to 65Hz |
