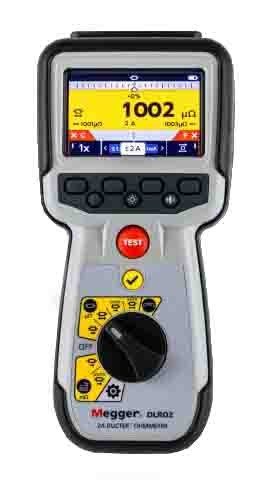

Megger DLRO2 Ducter Low Resistance Ohmmeter, 2 A is available at EquipTestPro.com with fast shipping and great prices.
To ensure the ohmmeter is always ready to test, this ohmmeter comes with AA rechargeable NiMH batteries that can be swapped for non-rechargeable standard AA alkaline batteries. In addition, this ohmmeter is ideal for outdoor use with an IP54 rating which ensures that neither rain nor dust will prevent testing.
Features
Test modes/options
The ohmmeter has three main test modes:
Normal resistance mode
Gives the most flexibility. The user can set any maximum test current range up to 2 A and the instrument will auto range to suit the measured resistance up to that value. Useful if the test piece has a limit to the current it can withstand. The user has full control of the instrument's test features which is suitable for many applications, as listed above.
Fast/long test leads mode
Only has one user option, which is manual/auto. ‘Manual' starts the test when the TEST button is pressed, ‘auto' starts the test automatically when the instrument detects continuity. In this mode, the instrument settings are optimized for speed and, if needed, the use of very long test leads. The test current is only in one direction for speed, 1 A and above, resistance is only displayed in mΩ. This test mode is ideal for many applications but is focused on applications where:
Inductive resistance mode
Tests with the test current set to 1 A to speed up the charge time. The test current will be auto ranged up as the inductance is charged. Additional convenience is added with a clever ‘auto stop' feature. The instrument will monitor the rate of change and automatically stop the test as soon as the result is stable.
Applications
| Live Voltage | Active live voltage protection to 600 V between any test terminals without blowing a fuse Live voltage warning on display and audible when >5 V is applied between any test terminals Fuse protected to 1000 V, fuses are not user changeable |
| Current | Ranges: 2 A, 1 A, 100 mA, 10 mA, and 1 mA Output accuracy: Normal and inductive mode: ±10 %; Long lead test mode: +10% to 0% at all battery conditions except with low battery indication |
| Maximum Compliance Output Voltage | 3.24 V (1 A mode) 2.2 V (2 A mode) |
| Thermal EMF/Seeback Effect Compensation | Yes, average of forward and reverse test current measurements |
| Resistance Measurement Test Modes | Normal test mode, fast mΩ/long test lead mode and inductive test mode (resistance of inductive loads) |
| Overall Resistance Range | 1 μΩ to 2000 Ω |
| Maximum Resistance Across C Terminals | 2 A with up to 1.1 Ω total resistance and 1 A with up to 3.2 Ω total resistance |
| Basic Accuracy | Bi-directional test current mode: ± 1% ±2 digits Uni-directional test current mode: ± 1% ±10 digits Inductive mode or unidirectional mode will introduce an undefined error if an external EMF is present |
| Safety Rating | CAT III 600 V/CAT IV 300 V to EN 61010, IEC 61010-031: 2015, IEC 61010-030 Safety category rating valid to altitude of 9842' (3000 m) |
| Display | Full LCD color screen with user configurable backlight |
| Dimensions | 8.98 x 4.1 x 2.95" (228 x 105 x 75 mm) |
| Weight | 32 oz (905 g) |
Shop EquipTestPro.com for the best deals on Megger DLRO2 Ducter Low Resistance Ohmmeter, 2 A. Fast shipping, competitive pricing, and expert support. Visit equiptestpro.com today!
