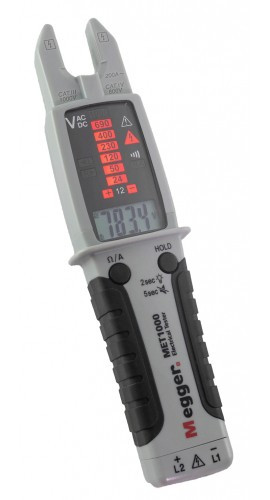

Robust and versatile, this electrical tester features detachable test leads and a built-in current clamp for current measurement to 200 A. Ideal for usage in commercial, industrial, and domestic environments, the electrical tester provides auto-ranging voltage, continuity, true RMS AC measurements, phase rotation tests, and comes complete with both inrush current and single-pole voltage tests.
Features
Multiple tests
In addition to the versatile auto-ranging voltage and continuity tests, the tester has a built-in current clamp for AC current measurement to 200 A. With TRMS AC measurements, a phase rotation test and both inrush current and single pole voltage test built in, the tester is a truly versatile electrical tester, ideal for use in commercial, industrial and domestic environments. GS38 shrouds are provided as standard to ensure compliance with the latest standards.
A bright LED torch aids safe working in poorly lit conditions and with the added benefit of an IP65 casing - incorporating a protective finger guard - ergonomic design, instrument carrying holster and a simple to use probe mounting on the rear of tester all help to keep the user safe and the instrument protected. Incorporating a comprehensive self-test feature, acoustic continuity and voltage indication, a maximum current draw of >3.5 mA to avoid unwanted tripping of RCD's/RCBO's and the ability to warn the operator of dangerous voltages, even when the batteries are exhausted, ensure the electrical tester meets the practical demands of today's busy test technicians.
Applications
| Sampling Rate | 3 times/sec |
| ACA | Range: 200 A Resolution: 0.1 A Basic accuracy: ±(3.0% +5 d) at 45 to ~65 Hz |
| ACV | Range with batteries: 6 to ~999.9 V Range without batteries: 45 to ~999.9 V Resolution 0.1 V Basic accuracy: ±(1.5% +5 d) at 45 to ~400 Hz |
| DCV | Range with batteries: 7 to ~999.9 V Range without batteries: 35 to ~999.9 V Resolution: 0.1 V Basic accuracy: ±(1.0% +2 d) |
| Ohm | Range: 50 k? Basic accuracy: ±(1.5% +5 d) Resolution: 1 ? |
| Continuity Beep | <1.8 k?, 2.7 kHz tone buzzer |
| Rotary Field Indication | Sensitivity: 90 to 1000 V (phase to earth) |
| Frequency Range | 45 to 65 Hz |
| Single-Pole Phase Check | Sensitivity: 90 to 1000 V (45 to 65 Hz phase to earth) |
| Response Time | Bar: <0.5 s Reading: <0.5 s |
| Auto Power Off | 30 seconds |
| Indicator | 2.7 kHz tone buzzer and ELV LED |
| Temperature | Operating: 5 to ~131°F (-15°C to ~55°C), ?80% RH Storage: -4 to ~140°F (-20°C to ~60°C) Coefficient: 0.2 x (Spec. Acc)/°C, <18°C or >28°C |
| Jaw Size | 1.5" (39 mm) |
| Maximum Conductor Size | 0.6" (16 mm) |
| Dimensions | 2.2 x 8.6 x 1.3" (57 x 220 x 35 mm) |
| Weight | 0.4 lbs (200 g) |
| Sampling Rate | 3 times/sec |
| ACA | Range: 200 A Resolution: 0.1 A Basic accuracy: ±(3.0% +5 d) at 45 to ~65 Hz |
| ACV | Range with batteries: 6 to ~999.9 V Range without batteries: 45 to ~999.9 V Resolution 0.1 V Basic accuracy: ±(1.5% +5 d) at 45 to ~400 Hz |
| DCV | Range with batteries: 7 to ~999.9 V Range without batteries: 35 to ~999.9 V Resolution: 0.1 V Basic accuracy: ±(1.0% +2 d) |
| Ohm | Range: 50 k? Basic accuracy: ±(1.5% +5 d) Resolution: 1 ? |
| Continuity Beep | <1.8 k?, 2.7 kHz tone buzzer |
| Rotary Field Indication | Sensitivity: 90 to 1000 V (phase to earth) |
| Frequency Range | 45 to 65 Hz |
| Single-Pole Phase Check | Sensitivity: 90 to 1000 V (45 to 65 Hz phase to earth) |
| Response Time | Bar: <0.5 s Reading: <0.5 s |
| Auto Power Off | 30 seconds |
| Indicator | 2.7 kHz tone buzzer and ELV LED |
| Temperature | Operating: 5 to ~131°F (-15°C to ~55°C), ?80% RH Storage: -4 to ~140°F (-20°C to ~60°C) Coefficient: 0.2 x (Spec. Acc)/°C, <18°C or >28°C |
| Jaw Size | 1.5" (39 mm) |
| Maximum Conductor Size | 0.6" (16 mm) |
| Dimensions | 2.2 x 8.6 x 1.3" (57 x 220 x 35 mm) |
| Weight | 0.4 lbs (200 g) |
| Sampling Rate | 3 times/sec |
| ACA | Range: 200 A Resolution: 0.1 A Basic accuracy: ±(3.0% +5 d) at 45 to ~65 Hz |
| ACV | Range with batteries: 6 to ~999.9 V Range without batteries: 45 to ~999.9 V Resolution 0.1 V Basic accuracy: ±(1.5% +5 d) at 45 to ~400 Hz |
| DCV | Range with batteries: 7 to ~999.9 V Range without batteries: 35 to ~999.9 V Resolution: 0.1 V Basic accuracy: ±(1.0% +2 d) |
| Ohm | Range: 50 k? Basic accuracy: ±(1.5% +5 d) Resolution: 1 ? |
| Continuity Beep | <1.8 k?, 2.7 kHz tone buzzer |
| Rotary Field Indication | Sensitivity: 90 to 1000 V (phase to earth) |
| Frequency Range | 45 to 65 Hz |
| Single-Pole Phase Check | Sensitivity: 90 to 1000 V (45 to 65 Hz phase to earth) |
| Response Time | Bar: <0.5 s Reading: <0.5 s |
| Auto Power Off | 30 seconds |
| Indicator | 2.7 kHz tone buzzer and ELV LED |
| Temperature | Operating: 5 to ~131°F (-15°C to ~55°C), ?80% RH Storage: -4 to ~140°F (-20°C to ~60°C) Coefficient: 0.2 x (Spec. Acc)/°C, <18°C or >28°C |
| Jaw Size | 1.5" (39 mm) |
| Maximum Conductor Size | 0.6" (16 mm) |
| Dimensions | 2.2 x 8.6 x 1.3" (57 x 220 x 35 mm) |
| Weight | 0.4 lbs (200 g) |
