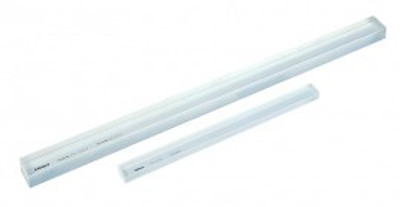

Mitutoyo 182-501-50 Standard Scale, 250 mm, Japanese JCSS certificate
SKU: 182-501-50
Availability: Regular Price Mitutoyo 182-501-50 Offers The standard scale is manufactured using Mitutoyo’s leading-edge Linear Scale production technology. Features High accuracy is guaranteed to be used as a standard for calibrating graduated scales Mitutoyo 182-501-50 Specifications Specifications Range 250 mm Mass 0.75 kg Accuracy (0,5+L/1000) µm, L = measured length (mm) Graduation 1 mm Thickness of Graduation Line 4 µm Material Low expansi
Availability: Regular Price
Mitutoyo 182-501-50 Offers
The standard scale is manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
Features
- High accuracy is guaranteed to be used as a standard for calibrating graduated scales
Mitutoyo 182-501-50 Specifications
Specifications
| Range | 250 mm |
| Mass | 0.75 kg |
| Accuracy | (0,5+L/1000) µm, L = measured length (mm) |
| Graduation | 1 mm |
| Thickness of Graduation Line | 4 µm |
| Material | Low expansion glass |
| Thermal Expansion Coefficient | (0,00±0,02) x 10-6/K |
| Dimension (L x W x T) | 280 x 20 x 10 mm |
| Inch-Metric | Metric |
What's included with the Mitutoyo 182-501-50
- Mitutoyo 182-501-50 Standard Scale, 250 mm, Japanese JCSS certificate
Mitutoyo 182-501-50 Standard Scale, 250 mm, Japanese JCSS certificate. Great savings PLUS Free Shipping when you order online at EquipTestPro.com.
