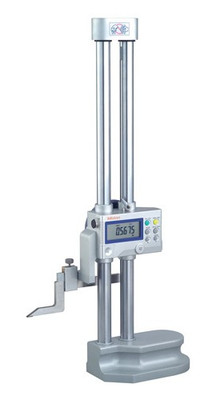

Mitutoyo 192-672-10 Height Gauge, Digimatic Multi-Function 0-24in, .0005-.0002in / 0-600mm, 0.01-0.005mm
SKU: 192-672-10
Availability: Regular Price Mitutoyo 192-672-10 Offers Features Highly versatile multi-function type Carbide-tipped long scriber is provided Rigid construction ensures repeatable measurement Coarse/fine feed switching Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width, and outside width Zero-setting, ABS/INC switching, Two presets, Probe tip diameter compensation, -/+ switching,
Availability: Regular Price
Mitutoyo 192-672-10 Offers
Features
- Highly versatile multi-function type
- Carbide-tipped long scriber is provided
- Rigid construction ensures repeatable measurement
- Coarse/fine feed switching
- Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width, and outside width
- Zero-setting, ABS/INC switching, Two presets, Probe tip diameter compensation, -/+ switching, Power ON/OFF, Data hold, Data output, inch/mm conversion
Applications
- Mechanical Engineering
- Metalworks
- Metrology
- Machining
Mitutoyo 192-672-10 Specifications
Specifications
| Model | Inch/Metric |
| Range | 0-24in 0-600mm |
| Accuracy | ±0015" |
| Resolution | .0005"(0.01mm) [.0002"(0.005mm) Switchable)] |
| Display | LCD, 7-digits, character height 11mm Max. response speed: 500mm/s |
| Battery | SR44 (1 pc.) |
| Battery life | Approx. 2000 hours under normal use |
| Alarm | Low voltage, Counting value composition error |
| Scriber | Carbide-tipped scriber (905201) and scriber clamp (901385) |
What's included with the Mitutoyo 192-672-10
- Height Gauge
- Battery
Mitutoyo 192-672-10 Height Gauge, Digimatic Multi-Function 0-24in, .0005-.0002in / 0-600mm, 0.01-0.005mm. Great savings PLUS Free Shipping when you buy now from EquipTestPro.com.
