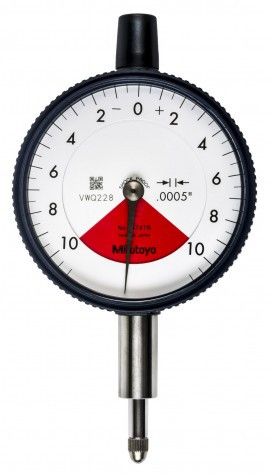

Mitutoyo 2976AB Series 2 Standard One Revolution Flat-Back Dial Indicator, 0.02", 0.0005" Graduation

Availability: Regular Price

Mitutoyo 2976AB Offers

The Mitutoyo 2976TB Series 2 Standard One Revolution Flat-Back Dial Indicator makes it easy to monitor your data. With a hard-coated, scratch-resistant lens, its dial remains easy to read through extended use. Plus, it even boasts shock and contaminant resistance. Use it with the included limit hands to make quick go/no-go judgments as needed.

Features

• Yields error-free readings over a convenient range
• Shockproof mechanism keeps operators safe
• Hard-coated crystal resists scratches and more
• Lightweight design makes transportation easy
• Rugged design resists common contaminants, such as water and dust
• Offset spindle bushing allows for smooth spindle movements when clamping on the stem
• Included limit hands are suited for go/no-go judgments
• Compatible with select Mitutoyo equipment (sold separately)
• Boasts 0.0005" graduation
• Type: flat-back
• Stem: 0.38" (9.7 mm) diameter, 4 to 48 UNF thread
• Force: 1.4 N or less

Mitutoyo 2976AB Specifications

Specifications

Supported Measurement Unit(s)	in
Measurement Range	0.02"; 0.028" full stroke
Accuracy	0.0005"
Dial Reading	10 to 0 to 10
Dial Color	Multi
Graduation Measurements	Inches

What's included with the Mitutoyo 2976AB

• Mitutoyo 2976AB Series 2 Standard One Revolution Flat-Back Dial Indicator, 0.02", 0.0005" Graduation
