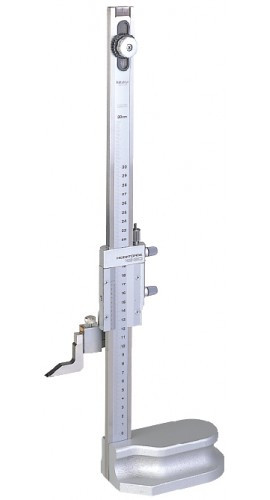

Mitutoyo 514-102 Series 514 Standard Vernier Height Gauge with Adjustable Main Scale, 0 to 300 mm, Metric

Availability: Regular Price

Mitutoyo 514-102 Offers

With an extra-large base, the Mitutoyo 514-102 Series 514 Standard Vernier Height Gauge with Adjustable Main Scale stands up against tough jobs. You can easily adjust its zero-point reference for quick back-to-back measurements. Plus, the chrome finish on the scale makes it easy to read the numbers in many different conditions. Carbide-tipped scriber and clamp provided.

Features

• Adjustable zero reference point for versatile use
• Chrome finish helps reduce glare and make the scale easier to read
• Extra-large, rigid base accommodates a range of materials
• Durable build withstands repeated, demanding use
• Series 514 height gauges offer 0.6" (15 mm) or 1" (25 mm) main scale adjustment and 0.16" (4 mm), 0.24" (6 mm), 0.28" (7 mm) or 0.79" (20 mm) slider fine feed
• Compatible with select Mitutoyo accessories, including scale magnifier (sold separately), for added functionality
• Comes with carbide-tipped scriber and clamp
• 0.02 mm graduation

Mitutoyo 514-102 Specifications

Specifications

Supported Measurement Unit(s)	Metric
Measurement Range	0 to 300 mm
Accuracy	0.04 mm
Power Source	Mechanical
Product Height	20.7" (525 mm)
Product Weight	6.8 lbs (3.1 kg)

What's included with the Mitutoyo 514-102

• Height Gauge
• 07GZA000 Carbide-Tipped Scriber
• 05GZA033 Scriber Clamp
