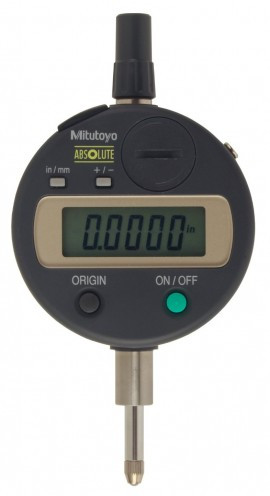

Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output
SKU: 543-791-12
Availability: 2 to 3 Weeks Mitutoyo 543-791-12 Offers Features As compact as standard Series 2 dial indicators After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors SPC data ou
Availability: 2 to 3 Weeks
Mitutoyo 543-791-12 Offers
Features
- As compact as standard Series 2 dial indicators
- After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life
- Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors
- SPC data output
- IP42 Dust Water Protection
- Alarm: Low Voltage, Counting value composition error, Over-flow error
- Absolute electrostatic capacitance type liner encoder
Applications
Ideal for the following applications: Digital Gauging, Fabricating, Manufacturing, Machining
Mitutoyo 543-791-12 Specifications
Specifications
| Resolution | .0005in 0.01mm |
| Range | .5in 12.7mm |
| Accuracy | .00012 |
| Stem Diameter | Ø8in |
| Force | 2.0N or less |
| Contact Point | M2.5x0.45 Thread |
What's included with the Mitutoyo 543-791-12
- Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output
Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output. Great savings PLUS Free Shipping when you buy now from EquipTestPro.com.
