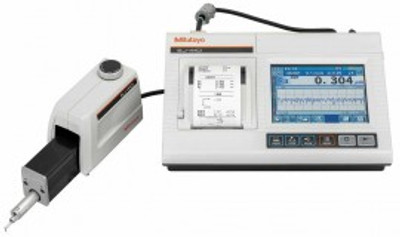

Providing both skidded and skidless measurements, this roughness tester has 46 roughness parameters that conform to ISO, DIN, ANSI, and JIS standards. Work with confidence with its high-resolution detector providing accurate measurements and features a high level of quality control. In addition, this roughness tester works with a digital filter function that delivers non-distorted roughness profiles and a limited contour analysis function that supports; step, level change, area, and coordinate difference measurements.
Features
Applications
| Measuring Range | X axis: 2" (50 mm) Z axis (detector): 800µm, 80µm, 8µm |
| Detector | Detection method: Differential inductance Resolution (range): 0.01 µm (800 µm) / 0.001 µm (80 µm) / 0.0001 µm (8 µm) Stylus tip shape (angle/radius): 90°/5 µm Measuring force: 4 mN Radius of skid curvature: 1.57" (40 mm) Measuring methods: Skidless / skidded (switchable) |
| Drive Unit (X Axis) | Measuring speed: 0.002, 0.004, 0.02, 0.04" per second (0.05, 0.1, 0.2, 0.5, 1 mm/s) Drive speed: 0.02, 0.04, 0.08, 0.2" per second (0.5, 1, 2, 5 mm/s) Straightness: 0.5µm / 50 mm |
| Up/Down Inclination Unit | Vertical travel: 0.39" (10 mm) Inclination adjustment angle: ±1.5° |
| Applicable Standards | JIS 1982/JIS 1994/JIS 2001/ISO 1997/ANSI/VDA |
| Filter | 2CR, PC75, gaussian Profile: Primary profile, roughness profile, DF profile, waviness profile, roughness motif profile, waviness motif profile |
| Analysis Graph | Material ratio curve, profile height amplitude distribution curve |
| Data Compensation Functions | Parabola, hyperbola, ellipse, circle, tilt, no compensation |
| Cutoff Value | ?c: 0.003, 0.01, 0.03, 0.1, 0.3" (0.08, 0.25, 0.8, 2.5, 8 mm) ?s: 2.5, 8, 25µm |
| Calculation Display Unit | Customization: Selection of display/evaluation roughness parameter Simplified contour analysis function: Step, step quantity, area, coordinate difference DAT (digimatic adjustment table) function: Helps to level workpiece prior to skidless measurement Real sampling function: Inputs the displacement of the detector while stopping the drive unit Statistical processing: Calculates the maximum value, minimum value, average value, standard deviation, pass rate and histogram for each parameter Judgment: Maximum value rule, 16% rule, mean value rule, standard deviation (1 ?, 2 ?, 3 ?) Storing measurement condition: Maximum 10 (calculation display unit) Print function (built-in thermal printer): Measurement condition/calculation result/Judgment result/calculation result per segment/tolerance value/evaluation curve/graphic curve/ material ratio curve/profile height amplitude distribution curve/environmental setting items/statistical result (Histogram) Display language: 16 languages (Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Chinese (simplified/traditional), Czech, Polish, Hungarian,Turkish, Swedish, Dutch) Storage function: Built-in memory; measurement condition (Up to 10) External I/O functions: USB I / F, digimatic output, RS-232C I / F, foot switch I / F |
| Power Supply | Built-in battery (rechargeable Ni-MH battery) /AC adapter Charging time of the built-in battery: about 4 hours (may vary due to ambient temperature) Endurance: About 1000 measurements (differs slightly due to use conditions /environment) Maximum power consumption: 50 W |
| Length | Sampling: 0.003, 0.01, 0.03, 0.1, 0.3, 1" (0.08, 0.25, 0.8, 2.5, 8, 25 mm) Arbitrary: 0.0039 to 2" (0.1 to 50 mm) |
| Dimensions | Calculation display unit: 10.83 x 7.8 x 4.29" (275 x 198 x 109 mm) Up /down inclination unit: 5.16 x 2.48 x 3.9" (131 x 63 x 99 mm) Drive unit: 6.08 x 1.41 x 1.83" (15.44 x 3.58 x 4.6 mm) |
| Weight | Calculation display unit: 3.7 lbs (1.7 kg) Up / down inclination unit: 0.88 lbs (0.4 kg) Drive unit: 1.41 lbs (0.64 kg) |
| Measuring Range | X axis: 2" (50 mm) Z axis (detector): 800µm, 80µm, 8µm |
| Detector | Detection method: Differential inductance Resolution (range): 0.01 µm (800 µm) / 0.001 µm (80 µm) / 0.0001 µm (8 µm) Stylus tip shape (angle/radius): 90°/5 µm Measuring force: 4 mN Radius of skid curvature: 1.57" (40 mm) Measuring methods: Skidless / skidded (switchable) |
| Drive Unit (X Axis) | Measuring speed: 0.002, 0.004, 0.02, 0.04" per second (0.05, 0.1, 0.2, 0.5, 1 mm/s) Drive speed: 0.02, 0.04, 0.08, 0.2" per second (0.5, 1, 2, 5 mm/s) Straightness: 0.5µm / 50 mm |
| Up/Down Inclination Unit | Vertical travel: 0.39" (10 mm) Inclination adjustment angle: ±1.5° |
| Applicable Standards | JIS 1982/JIS 1994/JIS 2001/ISO 1997/ANSI/VDA |
| Filter | 2CR, PC75, gaussian Profile: Primary profile, roughness profile, DF profile, waviness profile, roughness motif profile, waviness motif profile |
| Analysis Graph | Material ratio curve, profile height amplitude distribution curve |
| Data Compensation Functions | Parabola, hyperbola, ellipse, circle, tilt, no compensation |
| Cutoff Value | ?c: 0.003, 0.01, 0.03, 0.1, 0.3" (0.08, 0.25, 0.8, 2.5, 8 mm) ?s: 2.5, 8, 25µm |
| Calculation Display Unit | Customization: Selection of display/evaluation roughness parameter Simplified contour analysis function: Step, step quantity, area, coordinate difference DAT (digimatic adjustment table) function: Helps to level workpiece prior to skidless measurement Real sampling function: Inputs the displacement of the detector while stopping the drive unit Statistical processing: Calculates the maximum value, minimum value, average value, standard deviation, pass rate and histogram for each parameter Judgment: Maximum value rule, 16% rule, mean value rule, standard deviation (1 ?, 2 ?, 3 ?) Storing measurement condition: Maximum 10 (calculation display unit) Print function (built-in thermal printer): Measurement condition/calculation result/Judgment result/calculation result per segment/tolerance value/evaluation curve/graphic curve/ material ratio curve/profile height amplitude distribution curve/environmental setting items/statistical result (Histogram) Display language: 16 languages (Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Chinese (simplified/traditional), Czech, Polish, Hungarian,Turkish, Swedish, Dutch) Storage function: Built-in memory; measurement condition (Up to 10) External I/O functions: USB I / F, digimatic output, RS-232C I / F, foot switch I / F |
| Power Supply | Built-in battery (rechargeable Ni-MH battery) /AC adapter Charging time of the built-in battery: about 4 hours (may vary due to ambient temperature) Endurance: About 1000 measurements (differs slightly due to use conditions /environment) Maximum power consumption: 50 W |
| Length | Sampling: 0.003, 0.01, 0.03, 0.1, 0.3, 1" (0.08, 0.25, 0.8, 2.5, 8, 25 mm) Arbitrary: 0.0039 to 2" (0.1 to 50 mm) |
| Dimensions | Calculation display unit: 10.83 x 7.8 x 4.29" (275 x 198 x 109 mm) Up /down inclination unit: 5.16 x 2.48 x 3.9" (131 x 63 x 99 mm) Drive unit: 6.08 x 1.41 x 1.83" (15.44 x 3.58 x 4.6 mm) |
| Weight | Calculation display unit: 3.7 lbs (1.7 kg) Up / down inclination unit: 0.88 lbs (0.4 kg) Drive unit: 1.41 lbs (0.64 kg) |
