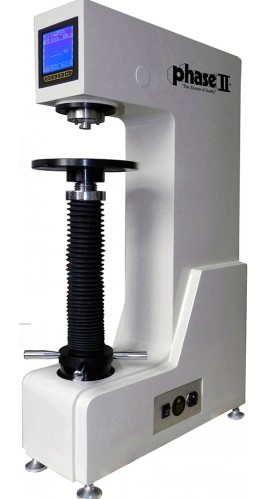

Phase II 900-356 Tall Frame Digital Brinell Hardness Tester
SKU: 900-356
Availability: 2 to 3 Weeks Phase II 900-356 Offers The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations. Features Load Cell driven system provides precise control of test force application Direct digital reading Engineered to obta
Availability: 2 to 3 Weeks
Phase II 900-356 Offers
The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
Features
- Load Cell driven system provides precise control of test force application
- Direct digital reading
- Engineered to obtain highly sensitive and accurate readings
- The gross weight of the tester is 50% less than the traditional dead weights type testers
- Test load selection by keypad and shown on the LCD screen
- Fully automatic test cycles
- Selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large LCD screen
- The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen
- Equipped with a 20X optical microscope to measure the diameter of Brinell indention
- Brinell Hardness Calculator (BHC) makes the hardness value calculation easy and convenient
Applications
- Heat treat facilities
- Laboratories
- Workshops
- Tool rooms
- Inspection labs
Phase II 900-356 Specifications
Specifications
| Loads | 3000 Kgf (29400 N), 1500 Kgf (14700 N), 1000 Kgf (9800 N), 750 Kgf(7355 N),500 Kgf (4900 N), 250 Kgf (2452 N), 187.5 Kgf (1839 N), 125 Kgf (1226 N),100 Kgf (980 N), 62.5 Kgf(612.9 N) |
| Load Dwell Duration | 2 to 99 secs. (Can be set and stored) |
| Tungsten Carbide Ball indenter | 0.39" (10 mm)0.197" (5 mm)0.098" (2.5 mm) |
| Measuring Range | 3.18 to 658 HBW |
| Magnification of the Microscope | 20X |
| Resolution capability of the Microscope | 0.005 mm |
| Max Measurable Height | With large anvil: 16.93" (430 mm)With small anvil: 17.72" (450 mm) |
| Max Measurable Depth | 7.87" (200 mm) |
| Dimensions | 23.622 x 11.811 x 39.37" (600 x 300 x 1000 mm) |
| Power Supply | 220/110 V, 50/60 Hz, 4 A |
| Weight | Gross: 451.95 lbs (205 kg)Net: 363.76 lbs (165 kg) |
What's included with the Phase II 900-356
- Hardness Tester
- Manual
- 5-Year Warranty
Phase II 900-356 Tall Frame Digital Brinell Hardness Tester. Great savings and get fast delivery when you order online at EquipTestPro.com.
