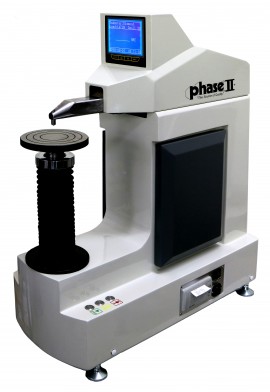

Phase II 900-450 Fully Automatic Universal Hardness Tester

Availability: 2 to 3 Weeks

Phase II 900-450 Offers

Allows for a quicker and easier installation than traditional dead weight type hardness testing machines.

Features

• Automated Z-axis
• Higher precision than handle wheel lifting/dead weight type hardness machines
• Extended dolphin nose allows vertical test height of 11.8" and throat depth of 8.6"
• Built-in micro-printer
• Twin hardness tester
• Rockwell hardness testing on surfaces difficult to reach
• High precision measuring, wide measuring range with 30 Rockwell hardness scales
• Results and conversions, digitally displayed and can be printed, or transmitted to external computer automatically via USB port
• Hardness test HR value can be converted to the value of HB, HV, HK and σb value
• Utilizing the guidelines of ASTM E-18

Applications

• Testing of carbon steel, alloy steel, cast iron, non ferrous metal
• Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically

Phase II 900-450 Specifications

Specifications

Test Force	Superficial Rockwell: 147.1 N (15 kgf), 294.3 N (30 kgf), 441.3 N (45 kgf)Regular Rockwell: 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf)Brinell: 15.625 kgf，31.25 kgf, 62.5 kgf，100 kgf, 125 kgf, 187.5 kgf，250 kgfVickers: 3 kgf，10 kgf，20 kgf，30 kgf，50 kgf，100 kgf
Load Dwell Duration	2 to 50 s, can be set and stored
Resolution	0.1 HR
Display	High definition backlight LCD
Operation	Menu selectable, membrane keypad
Limit Setting	Upper/lower limits setting and alarming
Data Statistics	Average, ,aximum, minimum, S, R
Curved Surface	Auto correction
Memory	Maximum 400 items of test results stored automatically
Testing Capacity	300 mm (vertical) , 220 mm (horizontal)
Power Supply	AC, 220 V/110 V, 50 to 60 Hz, 4 A (convertible)
Dimensions	27.1654 x 11.0236 x 33.8583" (690 x 280 x 860 mm)
Weight	86 kg (190 lbs)

What's included with the Phase II 900-450

• Fully Automatic Universal Hardness Tester
• Standard Hardness Block for B Scale
• 3 x Standard Hardness Block for C Scale
• Standard Hardness Block for 30 N Scale
• Standard Hardness Block for 30 T Scale
• Ball Indenter (1⁄16")
• 120° Cone Diamond Indenter
• Standard Hardness Block for HBW2.5/187.5
• Standard Hardness Block for HBW5/250
• Φ2.5 mm Ball Indenter
• Φ5 mm Ball Indenter
• 40X Microscope for Brinell
• Standard Hardness Block HV10
• Standard Hardness Block HV30
• 136° Diamond Pyramid Indenter
• Microscope with 40x, 100x, 200x Lens for Vickers
• Camera and Specific Software for Vickers with USB-key
• Φ150 mm Flat Anvil
• V-shape Anvil
• Power Supply Wire
• Mounting Screws for Indenter
• Screwdriver for Indenter Mounting
• Dust Cover
