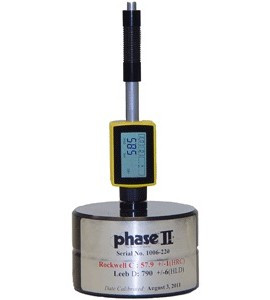

Phase II PHT-3340 Mini-Integrated Hardness Tester with DL Impact Device

Availability: 2 to 3 Weeks

Phase II PHT-3340 Offers

The Phase II portable hardness tester is an advanced integrated portable hardness tester distinguished by its very compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry.

Features

• Universal impact device D and a data processor in a single unit
• USB output
• Automatic conversions to: Brinell, Rockwell, Vickers and Shore
• Memory capacity (500 groups)

Applications

• Metalworks Inspection
• Quality Assurance on new products
• Engineering
• Laboratory

Phase II PHT-3340 Specifications

Specifications

Dimensions:	6.10" x2.36" x1.49" (155 X 60 X 38mm)
Impact Device:	D
Impact Energy:	8 Ft-Lbs(11nmm)
Test Tip:	Tungsten Carbide
Measuring Accuracy:	+/- 0.8% (Corresponding To +- 1 Hrc At Hrc=58)
Max. Hardness Of Sample:	980hv
Weight:	0.48lb(220g)
Impact Direction:	Any Angle
Operating Temperature:	32° To 122° F (0 To 50° C.)
Min. Weight Of Sample:	11 lbs / 5kg
Min. Radius Of Curved Surface:	1.2"(30mm)(With Support Rings:11mm)
Power Supply:	3.6V Lithium Rechargeable Battery

What's included with the Phase II PHT-3340

• Portable Hardness Tester with DL Impact Device
• Calibrated test block
• Custom carry case
• Cleaning brush
• Operation manual
