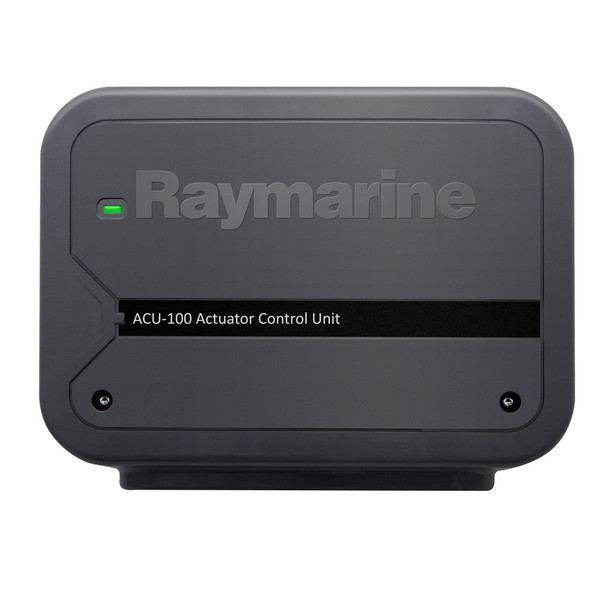

Raymarine ACU-100 Actuator Control Unit

No reviews yet Write a Review
$836.03
SKU:
E70098
UPC:
7.23194E+11
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine ACU-100 Actuator Control Unit

$836.03

Raymarine ACU-100 Actuator Control Unit Product Description

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections
  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground

Nominal supply voltage
12 V
Operating voltage range
10.8V to 15.6V dc
Power Consumption (standby) - Main Power Supply
300 mA (12V)
Power Consumption (standby) - SeaTalkng Power Supply
No power supply to SeaTalkng
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
No power supply to SeaTalkng
Data Connections
SeaTalkng

Installation Environment
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating
  • Connector Panel: IPX2
  • Drive Electronics: IPX6


Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
Weight
0.6 kg (1.32lbs)

Conformance
  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2


The sturdy Raymarine ACU-100 actuator control unit can provide reliable driving force for autonomous driving, and it can also supply power to the SeaTalkNG bus. Rudder reference sensor, power supply, driver...

Raymarine EV-1 Sensor Core
Raymarine Evolution SeaTalkng Cable Kit


Raymarine ACU-100 Actuator Control Unit

Raymarine
How to describe Raymarine ACU-100 Actuator Control Unit
What is the type of the product

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine ACU-100 Actuator Control Unit

The sturdy Raymarine ACU-100 actuator control unit can provide reliable driving force for autonomous driving, and it can also supply power to the SeaTalkNG bus. Rudder reference sensor, power supply, driver...

What is the type of the product

Parts


Raymarine ACU-100 Actuator Control Unit Technical Specifications

Type:

Marine Navigation & Instruments | Autopilots

Vendor:

Raymarine

Weight:

2.0 lb

Type:

Parts

Product Installation:

Download PDF
