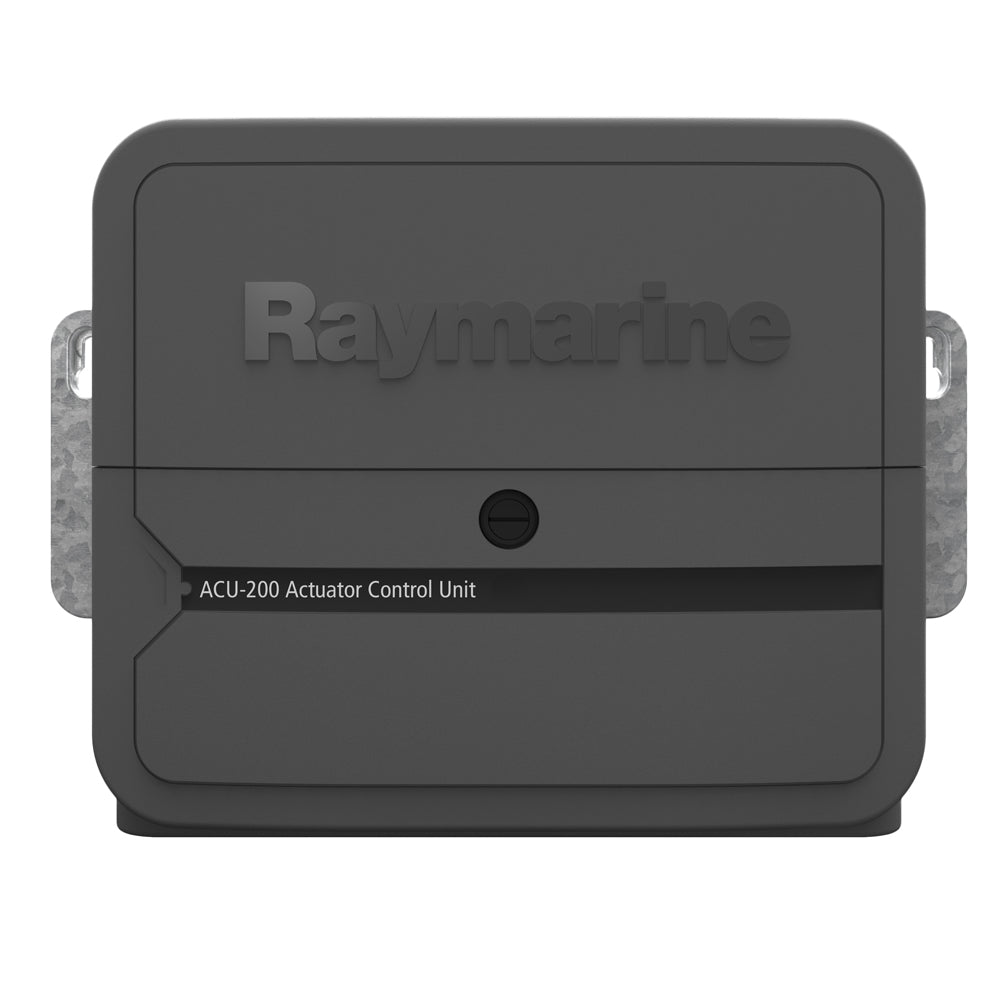

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

No reviews yet Write a Review
$1,460.35
SKU:
E70099
UPC:
723193768914
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

$1,460.35

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives Product Description

The ACU-200 (Actuator Control Unit) is a key component for Evolution autopilot systems. The ACU-200 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12 Volt DC electrical source. Combine with an EV-1 sensor, autopilot control head, and Type 1 hydraulic, mechanical linear, or mechanical rotary drive a complete autopilot system.

Raymarine E70099 Attributes

  • Compatibility: Type-1 Raymarine Hydraulic/ Linear And Rotary Mechanical Drives
  • Function: Delivers Reliable Autopilot Drive Power And Also Provides Power To The SeaTalk(NG) Bus

Raymarine E70099 Features & Benefits

  • Delivers Reliable Autopilot Drive Power And Also Provides Power To The SeaTalk Bus
  • Maximum Continuous 15 Ampere At Supply Voltage
  • High-Performance Products Proven In The Harshest Of Environments
  • Built To Last Longer Life
  • Limited 2 Year Warranty

Raymarine E70099 Warranties

  • Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V

Connections
  • Includes the M81105 Rotary Rudder Reference

  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply
20 mA (12V)
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalkng

Installation Environment
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance
  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2


Choose the ACU that suits your type of steering system. Includes M81105 rotary rudder reference. SeaTalkng LEN (load equivalent number). 285 mm x 211.5 mm x 64.5 mm (11.2 inches x 8.3 inches x 2.5 inches). Anti-drip.

Raymarine Type 1 Pump 12V
Raymarine EV-1 Sensor Core
Raymarine Evolution SeaTalkng Cable Kit


Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

Raymarine
How to describe Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives
What is the type of the product
What is the compatibility of this product
Is this product receive only or receive / transmit

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

Choose the ACU that suits your type of steering system. Includes M81105 rotary rudder reference. SeaTalkng LEN (load equivalent number). 285 mm x 211.5 mm x 64.5 mm (11.2 inches x 8.3 inches x 2.5 inches). Anti-drip.
  • The ACU is a rugged box that delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.
  • Choose the ACU that fits your steering system type.
  • The ACU is the heart of your autopilot system.
  • It delivers reliable drive power to your steering system and also provides power to the SeaTalkng bus.
  • Choose the ACU that fits your steering system type.

Raymarine ACU-200 is a new generation of Raymarine Evolution ACU (Advanced Control Unit) which has been designed to provide control and monitoring for the new Raymarine EVO Series, including the EVO7, EVO7-SE and EVO7-SE Plus. The ACU-200 is available in four versions with different drive current outputs. The ACU-200 is designed to power up to six (6

What is the type of the product

Parts
  • The ACU is a rugged box that delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.
  • Choose the ACU that fits your steering system type.
  • The ACU is the heart of your autopilot system.
  • It delivers reliable drive power to your steering system and also provides power to the SeaTalkng bus.
  • Choose the ACU that fits your steering system type.
  • ACU-100: 7A max. continuous current
  • ACU-200: 10A max. continuous current
  • ACU-300: 15A max. continuous current
  • ACU-400: 20A max. continuous current
  • E70098, E70099, E70139, and E70100 have a maximum of 7 A at supply voltage
  • The ACU-100 is the smallest of the Evolution series, but it still packs a punch.
  • The ACU-200 is perfect for those who want to take their boat off the grid.
  • The ACU-300 has a maximum continuous drive current output of 7 A at supply voltage.
  • If you're looking for high power and versatility, the ACU-400 is for you.

What is the compatibility of this product

Type-1 Raymarine Hydraulic/ Linear And Rotary Mechanical Drives

Is this product receive only or receive / transmit

Delivers Reliable Autopilot Drive Power And Also Provides Power To The SeaTalk(NG) Bus


Save $183 when you buy the Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives for only $766 from NVN Marine! Same day shipping before 3pm.

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives Technical Specifications

Type:

Marine Navigation & Instruments | Autopilots

Vendor:

Raymarine

Weight:

6.8 lb

Type:

Parts

Product Installation:

Download PDF
