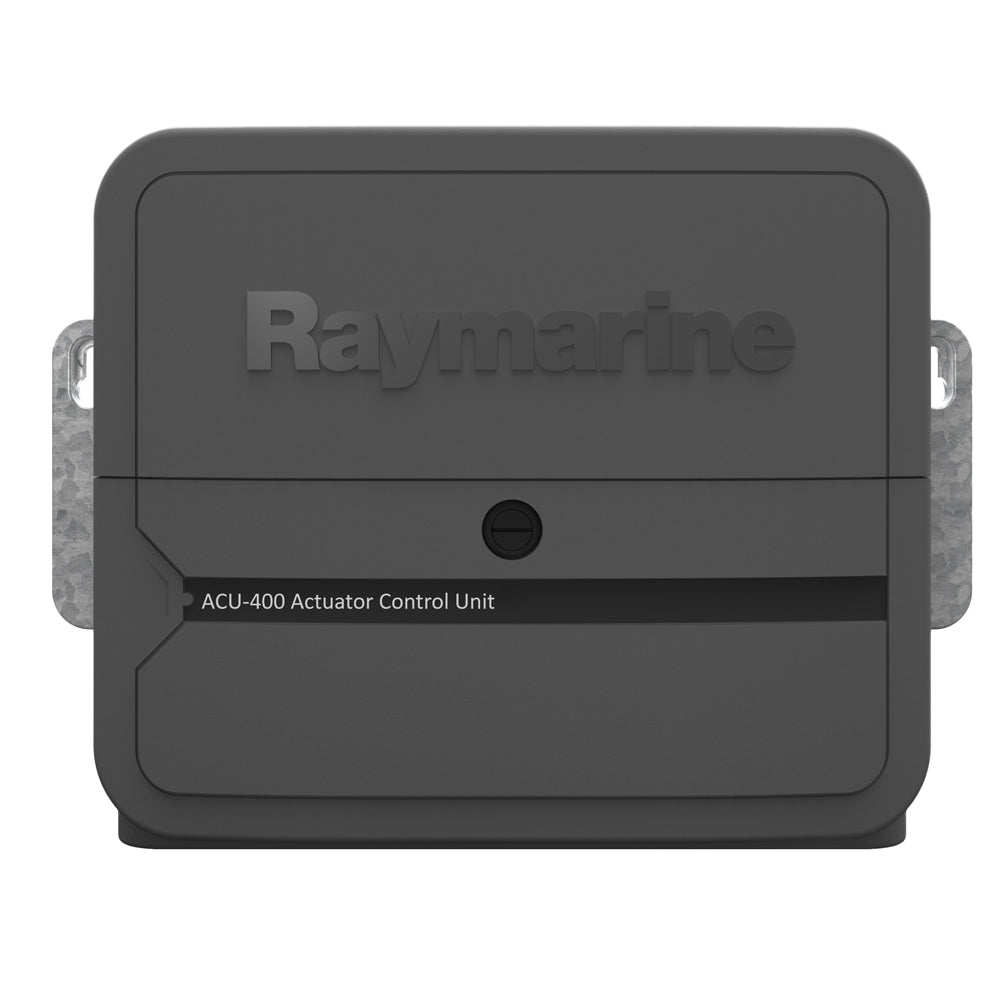

Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives

No reviews yet Write a Review
$3,293.90
SKU:
E70100
UPC:
723193768921
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives

$3,293.90

Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives Product Description

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 30 Amps at supply voltage
Drive Clutch Output
  • Up to 4 Amp continuous at 12V on 12V systems
  • Up to 4 Amp continuous at 24V on 24V systems
  • Up to 4 Amp continuous at 12V on 24V systems


Connections
  • Includes the M81105 Rotary Rudder Reference
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground
  • Digital Input / Output (DIO)

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply
20 mA (12V)
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalkng

Installation Environment
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance
  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2


The Acu-400 actuator control unit is used in conjunction with the Evolution series autopilot, continuous 30 AMP is suitable for large ships with mechanical or hydraulic steering. 12 or 24 VDC marine internal intercom connection, optional rudder feedback Raymarine is a global leader in marine electronics, developing and manufacturing the most extensive electronic equipment, suitable for use in the Evolution series autopilot ACU-400 actuator control unit MFG The electronic device #E70100. Continuous 30 amps, suitable for large ships with mechanical or hydraulic steering. 12 or 24 VDC, SeaTalk-ng connection, optional rudder feedback.

Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives

Raymarine
How to describe Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives
What is the type of the product

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives

The Acu-400 actuator control unit is used in conjunction with the Evolution series autopilot, continuous 30 AMP is suitable for large ships with mechanical or hydraulic steering. 12 or 24 VDC marine internal intercom connection, optional rudder feedback Raymarine is a global leader in marine electronics, developing and manufacturing the most extensive electronic equipment, suitable for use in the Evolution series autopilot ACU-400 actuator control unit MFG The electronic device #E70100. Continuous 30 amps, suitable for large ships with mechanical or hydraulic steering. 12 or 24 VDC, SeaTalk-ng connection, optional rudder feedback.
  • The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.
  • Choose the ACU that fits your steering system type.
  • The ACU is the heart of your autopilot system.
  • It provides power to the SeaTalkng bus and also drives your steering actuator motors.
  • The ACU can be configured for either a linear or rotary actuator.

Raymarine Evolution ACU Specifications Model ACU-400 Drive Current Output Maximum continuous 7 A at supply voltage

What is the type of the product

Parts
  • The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.
  • Choose the ACU that fits your steering system type.
  • The ACU is the heart of your autopilot system.
  • It provides power to the SeaTalkng bus and also drives your steering actuator motors.
  • The ACU can be configured for either a linear or rotary actuator.
  • ACU-400 is the top of the line model with a maximum continuous current output of 7 A at supply voltage
  • The ACU-300 model is perfect for boats up to 30 feet with a maximum continuous current output of 5 A at supply voltage
  • The ACU-200 model is ideal for boats up to 20 feet with a maximum continuous current output of 3 A at supply voltage
  • ACU-400 is rated for up to 7 A at supply voltage, so it is perfect for high-power applications
  • The ACU-400 has a wide input range of 9 to 30 VDC, making it compatible with a variety of sources and systems
  • The ACU-400 is designed for use in demanding applications where high power output and long service life are required


Raymarine ACU-400 Actuator Control Unit - Use Type 2 & 3 Hydraulic , Linear & Rotary Mechanical Drives Technical Specifications

Type:

Marine Navigation & Instruments | Autopilots

Vendor:

Raymarine

Weight:

7.0 lb

Type:

Parts

Product Installation:

Download PDF
