The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.

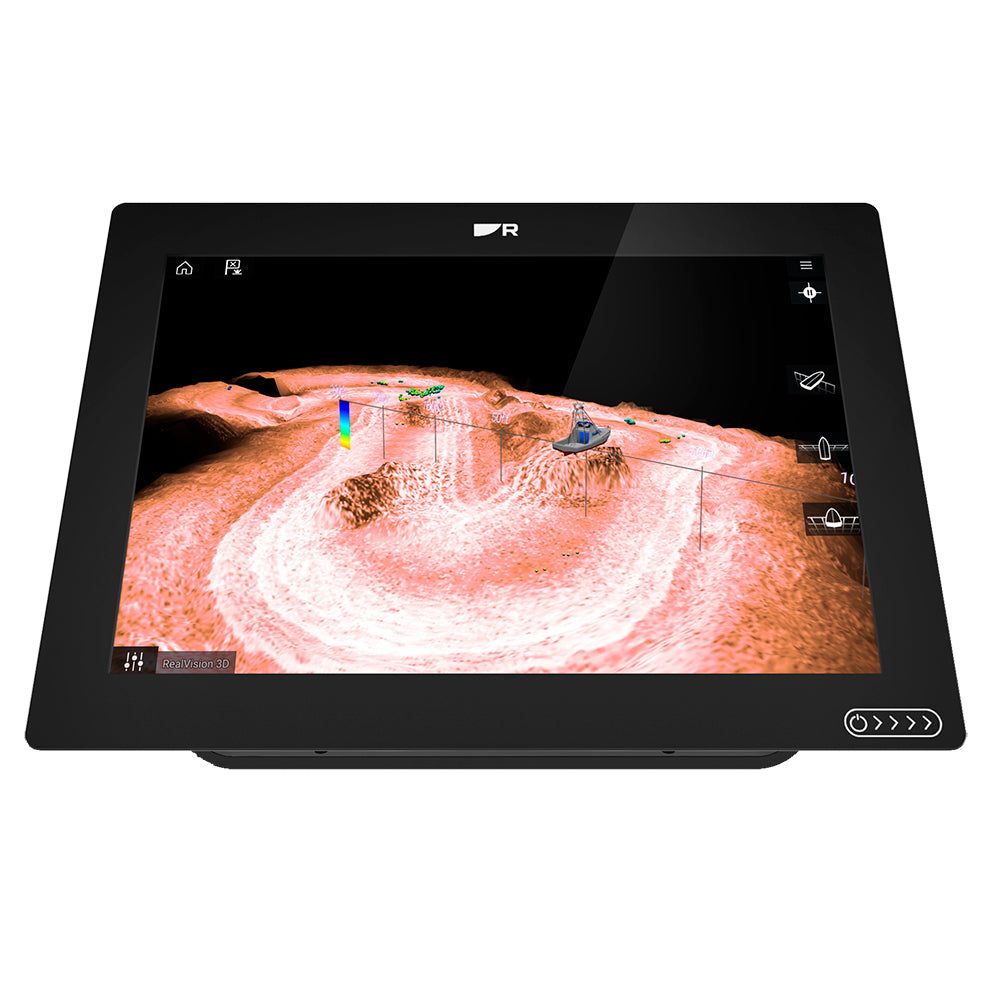

Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount & Navionics+ Chart
The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
MAXIMUM VISIBILITY
The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Features:
RV-100 - RealVision 3D All-In-One Transom Mount Transducer
Raymarines RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. Youll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)
Whats in the Box?
Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, With RV100 Transducer with Navionics North America Nav+ Charts
Model: E70639-03-NAGThe performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Specifications| General | |
| Display Size | 12.1 inch High Density IPS |
| Display Resolution | 1280 x 720 (WXGA) |
| Display Type | Multitouch with HydroTough rugged hydrophobic coating |
| Brightness | 1,800 nits |
| Viewing Angle | 88° Top, Bottom, Left, Right |
| Dimensions W x H x D (Excluding trunnion and cables) | 12.36 x 8.54 x 3.0in |
| Mounting Options | Surface, Flush, Trunnion, (Front installation bracket available) |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature Range | -25°C to +55°C (-13°F to +131°F) |
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) |
| Power | |
| Voltage | 12V DC (8V to 16V DC) |
| Power Consumption (Full brightness) | 19.96 Watts |
| Sensors | |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required |
| Sonar Type (Built-in) | RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D |
| Sonar Connections | 25pin RealVision type connector |
| Sonar Depth | High CHIRP Sonar = 900 feet (274m) DownVision = 600 feet (183m) SideVision = 300 feet (91m) RealVision 3D = 300 feet (91m) |
| External Sonar Option | Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet |
| Radar | Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars |
| AIS | Yes - NMEA2000 compatible |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes FLIR AX8, M232, M300 Series, M400, M500 |
| Video / Camera | Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription SiriusXM - N. America Only |
| Audio | NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio |
| Digital Switching | Yes - Empirbus & C-Zone compatible |
| Remote Control | Yes Optional RMK-10 (A80438) |
| Networking | |
| Ethernet | 1 x 10/100 Mbit/s Network (RayNet) |
| NMEA0183 | No |
| NMEA2000 | NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter |
| SeaTalkNG | Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) |
| USB | 1 x USB microAB |
| Wi-Fi | WiFi - 802.11 a/b/g/n |
| BlueTooth | Bluetooth v4.0 |
| Navigation | |
| Cartography | Lighthouse Charts, Navionics, and C-MAP compatible |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Memory | |
| Internal Memory | 16 GB Solid State |
| External Memory | 1x MicroSD Card Slot |
| Languages | 24 |
| Conformances | NMEA 2000 certification Europe: 1999/5/EC Australia and New Zealand: C-Tick, Compliance Level 2 FCC 47CFR part 15 Industry Canada RSS210 |
| Type: |
Marine Navigation & Instruments | GPS - Fishfinder Combos |
||
|---|---|---|---|
| Vendor: |
Raymarine |
||
| Weight: |
17.25 lb |
||
| Transducer Included: |
Yes |
||
