With a 55 Watt solid-state transmitter, Cyclone delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6 Kilowatt magnetron radar and gives Cyclone a range of up to 72 nautical miles. Cyclone radars feature innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology, and high-speed 60 rpm imaging.

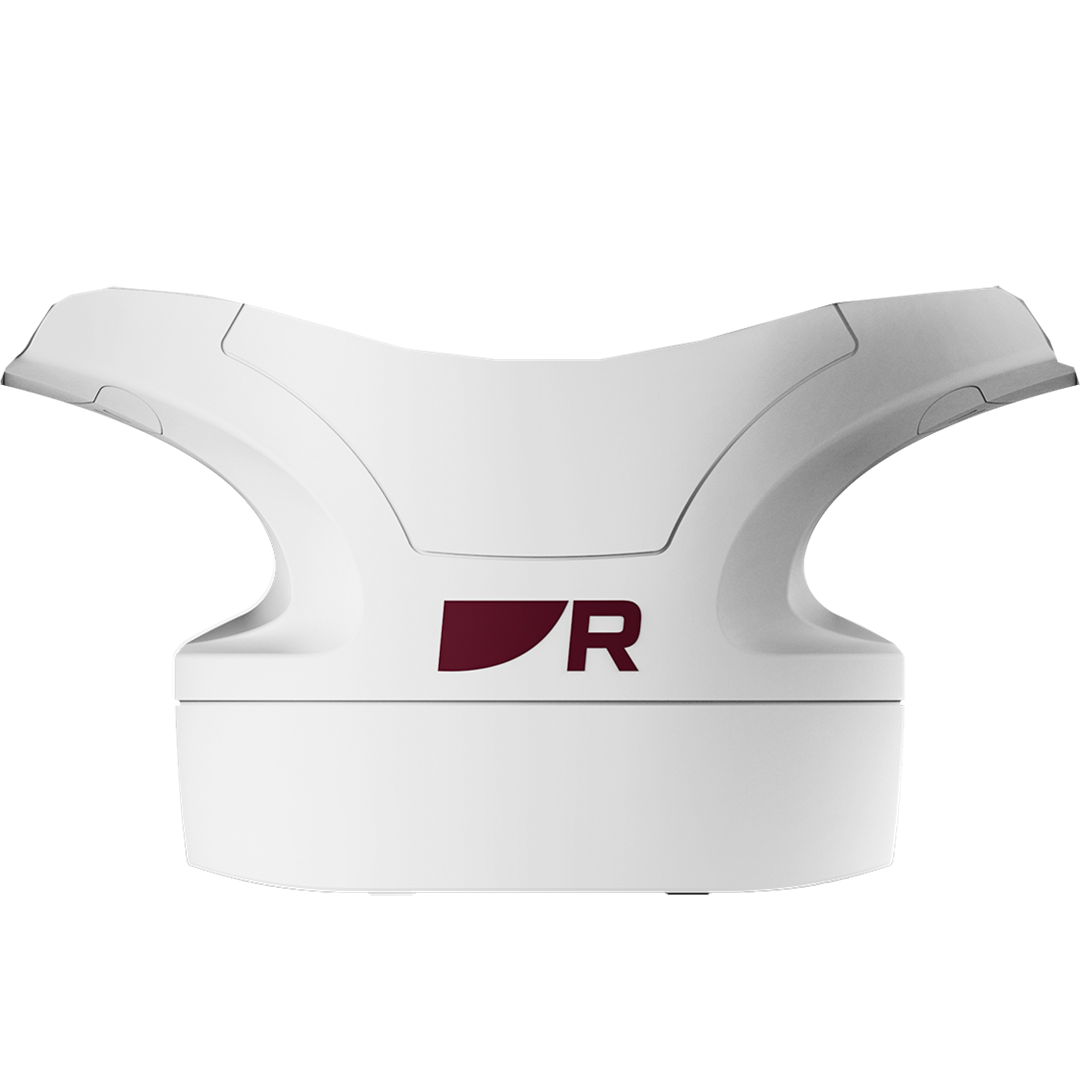

Cyclone Pedestal - 55W
Raymarine's Cyclone Radar Pedestal 55 Watts. The base Cyclone models deliver 55-watt output power/6kW equivalent magnetron performance. All Cyclone models integrate seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays.
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
Raymarine 55 Watt Cyclone Pedestal Only
Model: E70620Pedestal Only for 55 Watt Cyclone
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 70 Watts |
| Power consumption (max) | 170 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Type: |
Marine Navigation & Instruments | Radars |
|---|---|
| Vendor: |
Raymarine |
| Power - Output: |
55W |
| Range - Max (Miles): |
72NM |
| Product Brochure: |
Download PDF |
