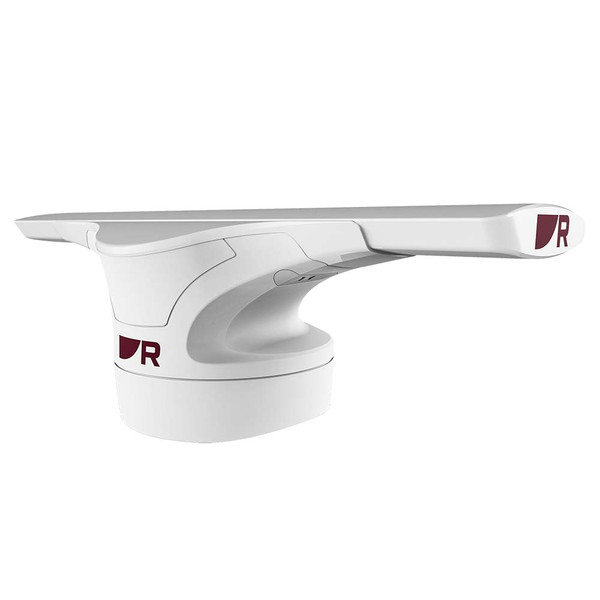

Raymarine Cyclone Radar w/3' Open Array & 15M Cable

No reviews yet Write a Review
$7,839.99
SKU:
T70491
UPC:
723193836613
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine Cyclone Radar w/3' Open Array & 15M Cable

$7,839.99

Raymarine Cyclone Radar w/3' Open Array & 15M Cable Product Description

Cyclone Radar 55W with 3' Open Array & 15M Cables

SOLID-STATE OPEN ARRAY RADAR

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology.  Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.

CUTTING EDGE DESIGN

  • Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
  • At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
  • Innovative pedestal design conceals cable connections for a cleaner installation

THE ULTIMATE SITUATIONAL AWARENESS

  • Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
  • Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
  • Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
  • RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.

FISHING INTELLIGENCE

  • Performance tuned for locating sea birds
  • Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

3' OPEN ARRAY SIZE

  • 3' array provides open array performance in tight spaces

Pedestal Box E70620:

  • Pedestal
  • M10 Stud x4
  • M10 Nut x8
  • M10 Spring Washer x4
  • M10 Plain washer x4
  • Mounting gasket
  • Mounting template
  • Radar data cable 15m
  • Power cable 15m
  • VCM100
  • Cable clamp
  • VCM100 mounting screw x2
  • Cable clamp mounting screw x3

3' Antenna Box E70628:

  • Antenna
  • Threaded alignment guide
  • Washer
  • Spring washer
  • Nut

All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility.  LightHouse Hvar 3.16 will be available in early November 2021.





Raymarine 15M Data Cable f/Cyclone Radar


Raymarine Cyclone Radar w/3' Open Array & 15M Cable

Raymarine
How to describe Raymarine Cyclone Radar w/3' Open Array & 15M Cable
What is the output voltage
What is the array size of the product
What is the maximum range (miles) of the product

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Cyclone Radar w/3' Open Array & 15M Cable

"

Raymarine 55 Watt Cyclone Radar with 3' Antenna

Model: T70491
  • Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
  • At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
  • Innovative pedestal design conceals cable connections for a cleaner installation
  • Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
  • Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
  • Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
  • RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
  • Performance tuned for locating sea birds
  • Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.

Specifications
Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc
Power consumption (typical)70 Watts
Power consumption (max)170 Watts
Power consumption (standby)28 Watts
Maximum range scale72 nm
Boot up time40 seconds
Standby to transmitless than 5 seconds
Waterproof ratingIPX6
Operating temperature range-25°C to +55°C (-13°F to 131°F)
HumidityUp to 93% at 40°C (104°F)
Maximum wind speed100 Kts
Power connection1x Power connector
Data connection1x RayNet connector
Transmitter frequency9370, 9400, 9430 MHz (User Selectable)
Peak power output55 Watts
Receiver characteristicLinear
Receiver noiseLess than 5 dB
Pedestal
Dimensions388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)
Weight16 Kg
Antenna
Beamwidth (vertical)25 degree
Beamwidth (horizontal)2.83 degree
PolarizationHorizontal
Rotation speed12, 24, 36, 48, 60 rpm
Length1031 mm / 40.59 in
Weight7 Kg / 15.4 lb

What's in the Box:
  • E70620 55 watt pedestal
  • E70628 3' Antenna
  • A80653 15m Power cable
  • A8058 15m Data Cable
  • "
    • Cyclone Radar 55W is the ultimate expression of design, rugged performance, and unmatched situational awareness.
    • Cyclone Radar 55W has a 3' open array and 15M cables.
    • Cyclone Radar 55W has a solid-state open-array radar that gives mariners the confidence to take on any weather condition with ease.
    • Cyclone Radar 55W with 3' Open Array & 15M Cables
    • Solid-state open-array radar
    • Designed for the ultimate in performance, with unmatched situational awareness
    • Cyclone Radar 55W with 3' Open Array & 15M Cables
    • Solid-state open-array radar design
    • Unmatched situational awareness

What is the output voltage

55W
  • Cyclone Radar 55W is the ultimate expression of design, rugged performance, and unmatched situational awareness.
  • Cyclone Radar 55W has a 3' open array and 15M cables.
  • Cyclone Radar 55W has a solid-state open-array radar that gives mariners the confidence to take on any weather condition with ease.
  • Cyclone Radar 55W with 3' Open Array & 15M Cables
  • Solid-state open-array radar
  • Designed for the ultimate in performance, with unmatched situational awareness
  • Cyclone Radar 55W with 3' Open Array & 15M Cables
  • Solid-state open-array radar design
  • Unmatched situational awareness

What is the array size of the product

3FT

What is the maximum range (miles) of the product

72NM


Buy with the best price Raymarine Cyclone Radar w/3' Open Array & 15M Cable for only $6999 from NVN Marine! Same day free shipping before 3pm.

Raymarine Cyclone Radar w/3' Open Array & 15M Cable Technical Specifications

Type:

Marine Navigation & Instruments | Radars

Vendor:

Raymarine

Array Size (Inches):

3FT

Power - Output:

55W

Range - Max (Miles):

72NM

Product Brochure:

Download PDF
