With a 55 Watt solid-state transmitter, Cyclone delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6 Kilo Watt magnetron radar and gives Cyclone a range of up to 72 Nautical Miles. Cyclone radars feature innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology and high-speed 60 RPM imaging. The ultimate expression of design, rugged performance and unmatched situational awareness, Cyclone solid-state open array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish and navigate busy waterways with confidence. Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology.

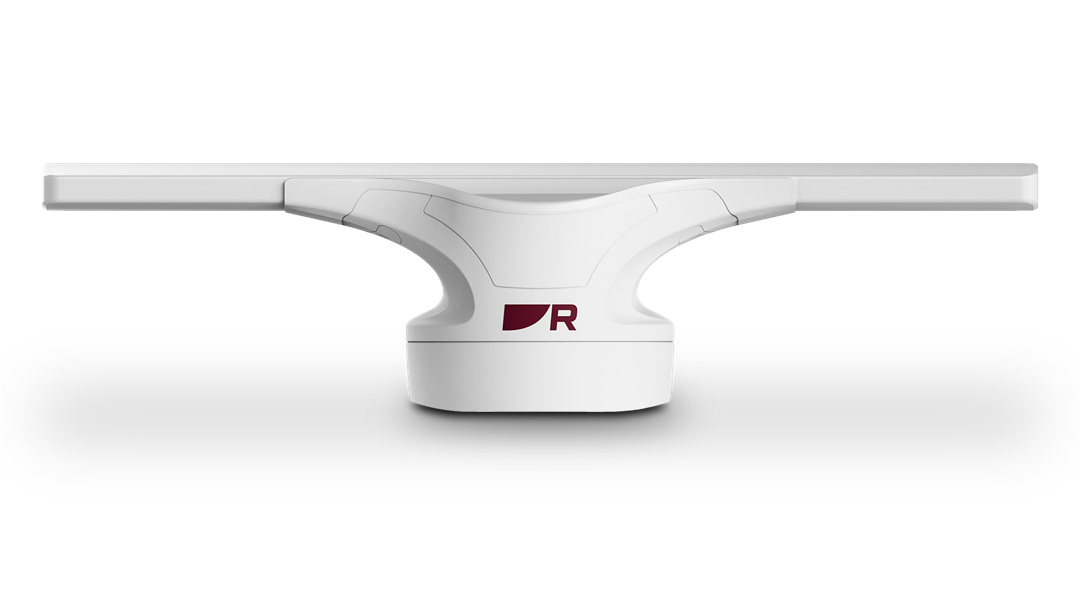

Cyclone Radar 55W with 4' Open Array & 15M Cables
SOLID-STATE OPEN ARRAY RADAR
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology, and high-speed 60 rpm imaging.
CUTTING EDGE DESIGN
THE ULTIMATE SITUATIONAL AWARENESS
FISHING INTELLIGENCE
4' OPEN ARRAY SIZE
In the Pedestal Box E70620:
4' Antenna Box E70629:
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
Raymarine 55 Watt Cyclone Radar with 4' Antenna
Model: T70492The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion technology and high speed 60 rpm imaging.
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 70 Watts |
| Power consumption (max) | 170 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 1.99 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1336 mm / 52.59 in |
| Weight | 9 Kg / 19.84 lb |
| Type: |
Marine Navigation & Instruments | Radars |
|---|---|
| Vendor: |
Raymarine |
| Array Size (Inches): |
4FT |
| Power - Output: |
55W |
| Range - Max (Miles): |
72NM |
| Product Brochure: |
Download PDF |
