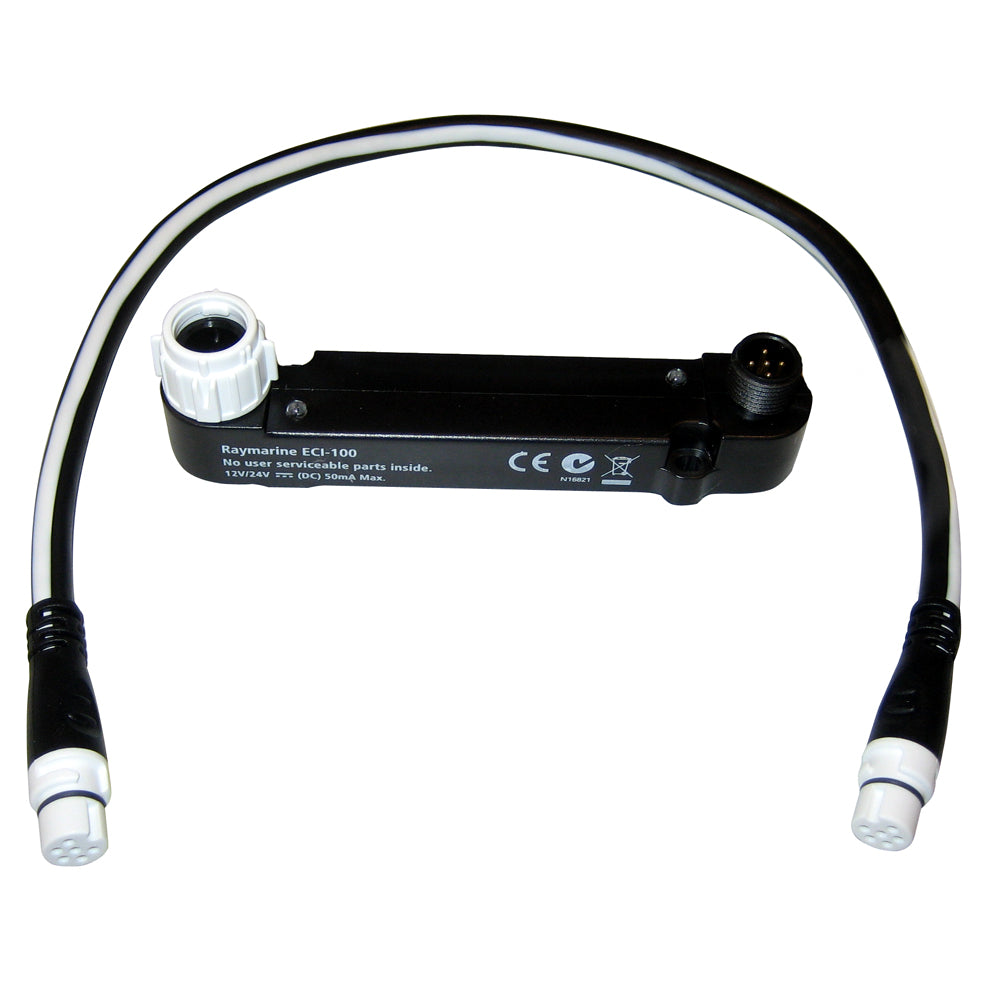

Raymarine ECI-100 Universal Engine & Control Interface

No reviews yet Write a Review
$274.72
SKU:
E70227
UPC:
723193785263
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine ECI-100 Universal Engine & Control Interface

$274.72

Raymarine ECI-100 Universal Engine & Control Interface Product Description

ECI-100 Universal Engine and Control Interface

ECI-100 Universal Engine & Control Interface

The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.

Benefits:
  • A simple, single point of connection for engine data and drive-by-wire autopilot control
  • Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways
  • Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway
  • View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display.
  • From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later
  • Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more
  • View engine information displays on your smart phone or tablet with Raymarine mobile apps
  • Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel


ECI-100 Engine Data Parameters
The ECI-100 Universal Engine and Control Interface identifies the following parameters:
  • Engine speed
  • Engine oil temperature
  • Engine temperature
  • Engine oil pressure
  • Engine coolant pressure
  • Engine fuel rate
  • Boost pressure
  • Battery potential
  • Transmission oil pressure
  • Transmission oil temperature
  • Total engine hours
  • Fuel tank level
  • Trip fuel used (calculated by ECI-100)
  • Alternator potential
  • Engine torque
  • Engine percent load
  • Transmission gear
  • VIN (not shown on the display)
  • Software number (not shown on the display)


Simple Integration, Powerful Performance
The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:
  • Volvo Penta
  • Yamaha Marine (Command Link Plus only)
  • Caterpillar
  • Yanmar Marine


Raymarine is committed to delivering seamless integration with leading marine engines. Visit www.raymarine.com for the latest engine compatibility information.

An industry standard DeviceNet port connects the ECI-100 to manufacturerspecific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalkng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.

* SAE - Society of Automotive Engineers standard

Engine and control interface / Raymarine's Element Fish Finder / Chartplotter. Raymarine ECI-100 is a simple isolated CAN bus solution that can be used with...

Raymarine Yamaha Command-Link Plus Cable


Raymarine ECI-100 Universal Engine & Control Interface

Raymarine
How to describe Raymarine ECI-100 Universal Engine & Control Interface
What is the exterior color of product
What's the Raymarine ECI-100 Universal Engine & Control Interface package dimensions and weight
What is the connector type of the product
What is the communication method of the product
What is the manufacturer notes about Raymarine ECI-100 Universal Engine & Control Interface

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine ECI-100 Universal Engine & Control Interface

ECI-100 Universal Engine and Control Interface
  • The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems.
  • It is compatible with all Raymarine products, including the popular E80, E120, C125, C150, M100, M105, M120 & M165 autopilots.
  • The ECI-100 also integrates seamlessly with the Raymarine SeaTalkNG network to provide full compatibility with all of your onboard electronics.
  • The ECI-100 is a universal engine and control interface that is compatible with all Raymarine autopilots and navigation systems.
  • Easily connect to your boat's steering system for a more responsive, accurate, and safer boating experience.
  • Compatible with all Raymarine autopilots and navigation systems

The ECI-100 is a full-color, high-resolution, multi-touch display that offers an intuitive user experience. Its compact size and sleek design make it perfect for installation on a wide range of marine electronics. The ECI-100's touch screen is designed for easy operation of the most common navigation functions.

What is the exterior color of product

Black/White
  • The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems.
  • It is compatible with all Raymarine products, including the popular E80, E120, C125, C150, M100, M105, M120 & M165 autopilots.
  • The ECI-100 also integrates seamlessly with the Raymarine SeaTalkNG network to provide full compatibility with all of your onboard electronics.
  • The ECI-100 is a universal engine and control interface that is compatible with all Raymarine autopilots and navigation systems.
  • Easily connect to your boat's steering system for a more responsive, accurate, and safer boating experience.
  • Compatible with all Raymarine autopilots and navigation systems
  • The dimensions are 109.2 x 21.35 x 30.2 mm (4.29 x 0.84 x 1.18 in)
  • Nominal power supply is 12 V dc
  • Operating voltage range is 10.8V to 31.2V dc
  • Power consumption is
  • Compact and lightweight for easy portability
  • Range of operating voltage to suit any environment
  • Low power consumption for extended battery life

What's the Raymarine ECI-100 Universal Engine & Control Interface package dimensions and weight

6 (w) X 2 (h) X 9 (l) inches and the weight is: 0.6 lb.

What is the connector type of the product

NMEA2000® Micro

What is the communication method of the product

NMEA 2000®

What is the manufacturer notes about Raymarine ECI-100 Universal Engine & Control Interface

ECI-100 Universal Engine and Control Interface


Save $54 when you buy the Raymarine ECI-100 Universal Engine & Control Interface for only $245 from NVN Marine! Same day shipping before 3pm.

Raymarine ECI-100 Universal Engine & Control Interface Technical Specifications

Type:

Marine Navigation & Instruments | Accessories

Vendor:

Raymarine

Weight:

0.6 lb

Product Brochure:

Download PDF
