The Element CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Elements HyperVision 1.2 Megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Element 12 HV Combo with Nav+ US & Canada Chart - No Transducer
Knowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesnt stop therean onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fishnot the helm. An oversized waypoint key puts you on your favorite spots, and Elements RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.
Features:

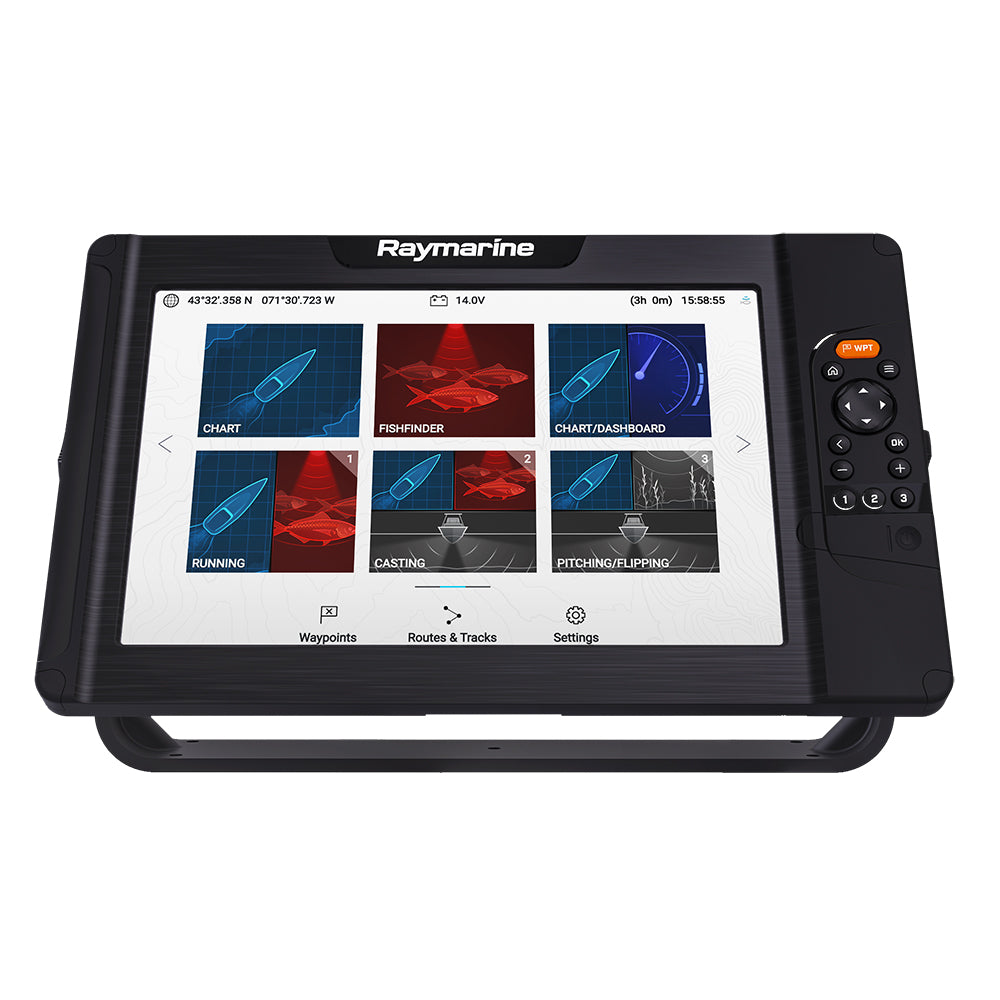

Raymarine Element 12 HV Combo w/Navionics Nav+ US & Canada Chart
Model: E70536-00-NAGKnowledge is powerand the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesnt stop therean onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fishnot the helm. An oversized waypoint key puts you on your favorite spots, and Elements RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.
Specifications| General Specifications | |
| Display Size | 12.0" Optically Bonded LCD |
| Resolution | 1280 x 800 WXGA |
| Display type | Non-Touch |
| Brightness | 1,500 nits |
| Viewing Angle | Top 89° / Bottom 89° / Left 89° / Right 89° |
| Physical | |
| Overall Dimensions | 14.1 x 8.5 x 2.4 inches |
| Water Ingress Protection | IPx6 and IPx7 |
| Operating Temperature Range | -25°C to + 55°C (-13°F to 131°F) |
| Storage temperature range | -30°C to +70°C (-22°F to 158°F) |
| Power | |
| Voltage | 12V DC (8V to 16V DC) |
| Power Consumption (max 12V DC) | 25 Watts |
| Sensors | |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS |
| Sonar Type (Built-in) | Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper) |
| Sonar Connection | 15 pin HyperVision type connector |
| Sonar Depth | CHIRP Sonar = 274m (900 feet) |
| Networking | |
| Ethernet | N/A |
| NMEA0183 | N/A |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| Supported NMEA2000 Networking | INPUT: NMEA2000 Compatible Engines (Max 2), NMEA2000 Compatible Tank Sensors (Max 4), Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC) |
| SeaTalkng | Requires A06045 DeviceNet female (F) adapter cable - 400mm |
| USB | N/A |
| Wi-Fi | WiFi - 802.11 b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 |
| Other | |
| Cartography | Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store. |
| Tides & Currents | Requires LightHouse LNC2, Navionics or C-MAP |
| Waypoint / Routes / Tracks | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Internal Memory | 8GB Solid State |
| External Memory | 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| Type: |
Marine Navigation & Instruments | GPS - Fishfinder Combos |
|---|---|
| Vendor: |
Raymarine |
| Weight: |
9.7 lb |
| Transducer Included: |
No |
| Cartography Brand: |
Navionics/C-Map/CMOR |
| Screen Size: |
12" |
| Touchscreen: |
No |
| Product Manual: |
Download PDF |
