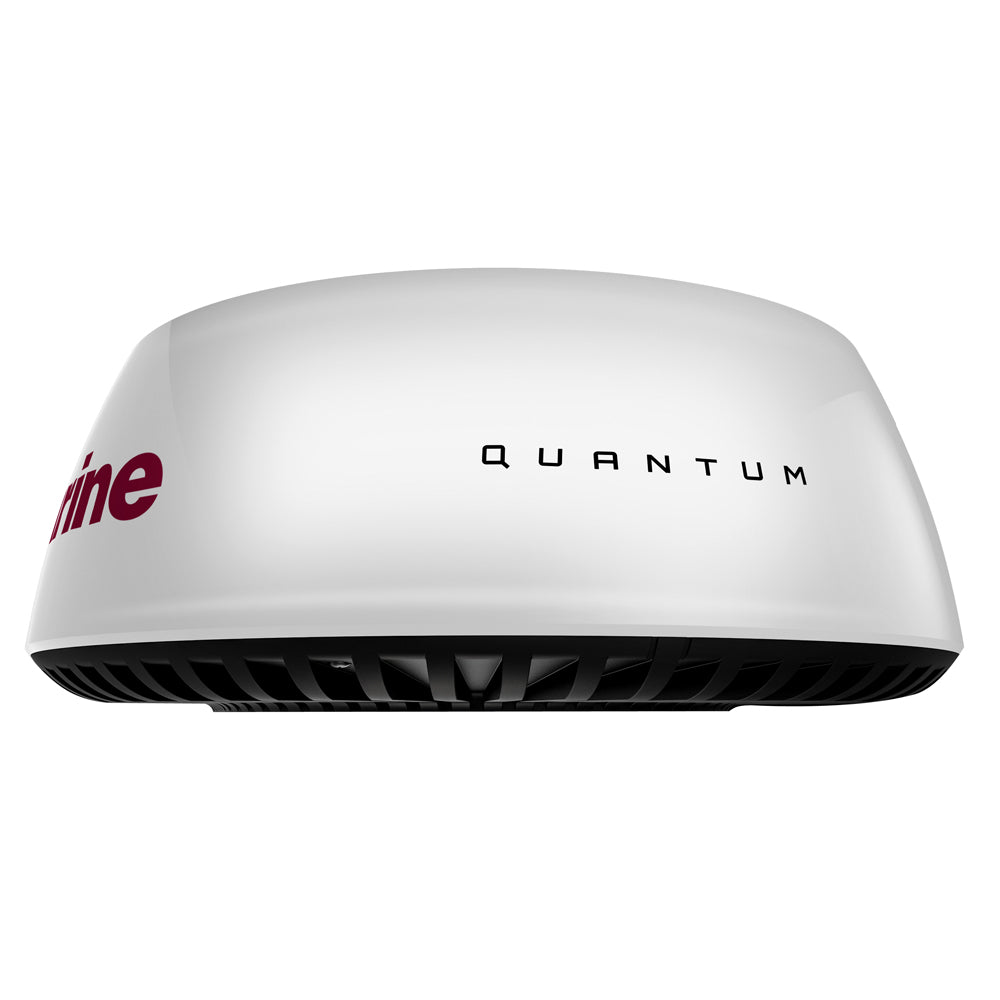

Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included Product Description
Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Raymarine E70210 Attributes
-
Radar Type: Radome
-
Size: 18 Inch Dome
-
Range: 24 Nautical Miles
-
Rotation Speed: 24 RPM
-
Power Output: 17 Watt
-
Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
-
Input Voltage: 12 Volt To 24 Volt
-
Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
-
Color: White
-
Waterproof Rating: IPX6 Rating Waterproof
-
Includes: Mounting Hardware/ 10 Meter Power Cable
Raymarine E70210 Features & Benefits
- Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
- CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
- Broad Usage Applications, Quantum Is Perfect For Sailboats, Ribs And Smaller Powerboats
- Superior Interference Rejection Eliminates Noise From Other Radars
- Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
- Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
- Safe Emissions: Mount Quantum Anywhere Onboard
- Simplified Installation And Can Utilize Existing Cables (With An Adapter) If Being Used As An Upgrade
- Limited 2 Year Warranty
Raymarine E70210 Installation Instructions
- Quantum Radome Installation instructions 87209-8-EN.pdf
Raymarine E70210 Warranties
- Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf
Raymarine E70210 Technical Bulletins
- Quantum Radar E70210 3D PDF.PDF
- Quantum Radar E70210 3D PDF.PDF
- Quantum Radome Installation instructions 87209-8-EN.pdf
Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable IncludedRaymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Superior Radar ImagingFLIR's exclusive ATXT advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.
CHIRP Pulse CompressionExcellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.
Small Target DetectionQuantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.
Simplified InstallationSimple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.
Energy Efficient & Lightweight DesignWeighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail.
Raymarine's 18-inch hemispherical radar with WiFi connection Raymarine's Quantum Q24C radar not only has excellent radar imaging performance, but also has become the first choice for Dome radar due to its simplified installation, lightweight design and reduced power consumption. Quantum Q24C radar uses CHIRP pulse compression technology to ensure that more energy reaches the target, so even if it is close to a sturdy return structure or container, it can identify smaller and weaker targets and provide higher separation and clarity degree. The CHIRP pulse compression of Quantum Q24C provides excellent target detection and details as low as 6 meters. At startup, Quantum Q24C consumes only 17 watts, and only 7 watts in standby mode. The solid-state structure and low power consumption of Quantum Q24C also make its transmission safer than traditional magnetron radar. FLIR's exclusive ATX advanced radar imaging technology and advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys and weather cabins, with unparalleled resolution and separation quality, which is also incomparable with the performance of Quantum Q24C radome match. section. Q24 is also the first radar to connect to MFD powered by Raymarine Lighthouse II with Wi-Fi function via cable or wireless.
Seaview SM-18-R Radar Mast Platform
Seaview Stainless Steel Guard for 12-20" Radars
Seaview Grey ABS Plastic Cable Seal - UV Stable - Multi Cables (up to 2-17mm Each)
Seaview Polished Stainless Steel Cable Seal - Multi Cables (up to 2-17mm Each)
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - White
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Black
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Mahogany
BoatLIFE Life-Calk Cartridge - White
BoatLIFE Life-Calk Cartridge - Black
BoatLIFE Life-Calk Cartridge - Mahogany
Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
Raymarine
How to describe Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
What is the weight of the product
What is the size
What's the color of Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
What is the waterproof rating of the product
What is the array size of the product
Raymarine
Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.
How to describe Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
Raymarine's 18-inch hemispherical radar with WiFi connection
Raymarine's Quantum Q24C radar not only has excellent radar imaging performance, but also has become the first choice for Dome radar due to its simplified installation, lightweight design and reduced power consumption. Quantum Q24C radar uses CHIRP pulse compression technology to ensure that more energy reaches the target, so even if it is close to a sturdy return structure or container, it can identify smaller and weaker targets and provide higher separation and clarity degree. The CHIRP pulse compression of Quantum Q24C provides excellent target detection and details as low as 6 meters. At startup, Quantum Q24C consumes only 17 watts, and only 7 watts in standby mode. The solid-state structure and low power consumption of Quantum Q24C also make its transmission safer than traditional magnetron radar. FLIR's exclusive ATX advanced radar imaging technology and advanced target separation technology can display targets, such as ships, landmarks, rocks, buoys and weather cabins, with unparalleled resolution and separation quality, which is also incomparable with the performance of Quantum Q24C radome match. section. Q24 is also the first radar to connect to MFD powered by
Raymarine Lighthouse II with Wi-Fi function via cable or wireless.
- Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
- Raymarine Quantum Radar, by FLIR, features CHIRP pulse compression technology.
- The next generation of marine radar that sets a standard for compact solid state radar.
- CHIRP pulse compression technology for the clearest, most detailed images possible
- Compact, solid state design with no moving parts for greater reliability
- Wi-Fi and Ethernet connectivity to provide easy access to your radar's data
Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable Model: E70210 UPC: 723193783931 Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for marine radar with its high level of accuracy and detail, Quantum delivers unrivaled performance in any weather conditions. The Quantum is backed by
What is the weight of the product
47
- Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
- Raymarine Quantum Radar, by FLIR, features CHIRP pulse compression technology.
- The next generation of marine radar that sets a standard for compact solid state radar.
- CHIRP pulse compression technology for the clearest, most detailed images possible
- Compact, solid state design with no moving parts for greater reliability
- Wi-Fi and Ethernet connectivity to provide easy access to your radar's data
- Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
- Setting a new standard for radar performance with advanced signal processing and an ultra-wide frequency range, your vessel can now detect targets that are more difficult to see with traditional radar.
- Thanks to the increased detection range and accuracy, you can now see more detail on targets at greater distances, day or night.
- Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable Model: E70210 UPC: 723193783931
- Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for marine radar performance.
- The Quantum's advanced signal processing delivers unparalleled target separation and detail in all conditions.
- The Quantum's high precision GPS antenna provides the most accurate positioning data available to provide you with an unrivaled level of situational
What's the color of Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included
What is the waterproof rating of the product
What is the array size of the product
Buy with the best price
Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included for only
$1899 from NVN Marine! Same day fast and free shipping before 3pm.
Raymarine Quantum Q24C Radome w/Wi-Fi & Ethernet - 10M Power Cable Included Technical Specifications
Type: |
Marine Navigation & Instruments | Radars
|
Vendor: |
Raymarine
|
Weight: |
20.2 lb
|
Array Size (Inches): |
18"
|
Product Installation: |
Download PDF
|
