RVM1600 Fishfinder Module with RealVision Max
The next generation of DownVision, SideVision, 3D, and conventional CHIRP sonar, RealVision MAX, delivers vivid sonar imagery and fish targets like never before. RealVision MAX starts with all-new high-performance RealVision CHIRP transducers, upgraded with larger elements and increased power output for extended-range performance. Next, RealVision MAX signal processing and faster ping rates improve visual fidelity and target identification. With RealVision MAX, the structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.
Features:
Multi-Channel Fishfinder:
RealVision MAX Transducers:
RealVision MAX transom mount and through hull transducer provide DownVision, SideVision, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600. RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion. A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.
What's In The Box
Raymarine RVM1600 CHIRP sonar module with RealVision MAX and 1kW broadband CHIRP

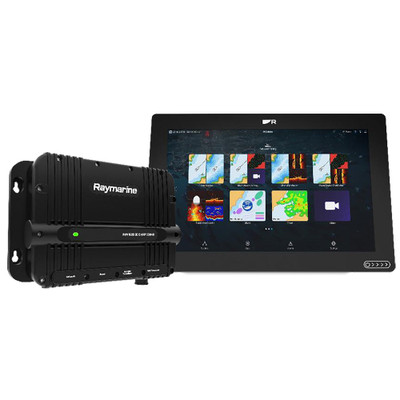

Model: E70655The RVM1600 for Axiom chartplotters takes multi-channel fish finder performance to new depths. The next generation of CHIRP DownVision, SideVision, 3D, and traditional CHIRP sonar, RealVision MAX fish finder technology delivers more power and life-like fish finder imagery so you can fish at the top of your game.
RealVision MAX starts with high-performance CHIRP transducers, upgraded with larger elements and increased power output for extended fish finder range performance.
Next, RealVision MAX CHIRP signal processing and faster ping rates improve fish finder imagery and target identification.
With RealVision MAX, structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.
High-contrast color fish finder palettes are refined to accentuate targets and make fish stand out from the water column.
RealVision MAX transducers are upgraded with a more powerful 600-watt High CHIRP frequency. The result is deeper range performance and stronger fish finder target returns. Track the bottom in depths greater than 1,200' (366 meters) and find fish beyond 400' (123 meters).
CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail.
CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars.
RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure
Specifications| ENVIRONMENTAL | |
| Relative humidity | up to 93% @ 40 °C (104 °F) |
| Waterproof rating | IPx6, IPx7 |
| Non-operating temperature | -30 °C (-22 °F) to +70 °C (158 °F) |
| Operating temperature | -25 °C (-13 °F) to +55 °C (131 °F) |
| SONAR | |
| Power output | RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS |
| Sonar channels | RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent) |

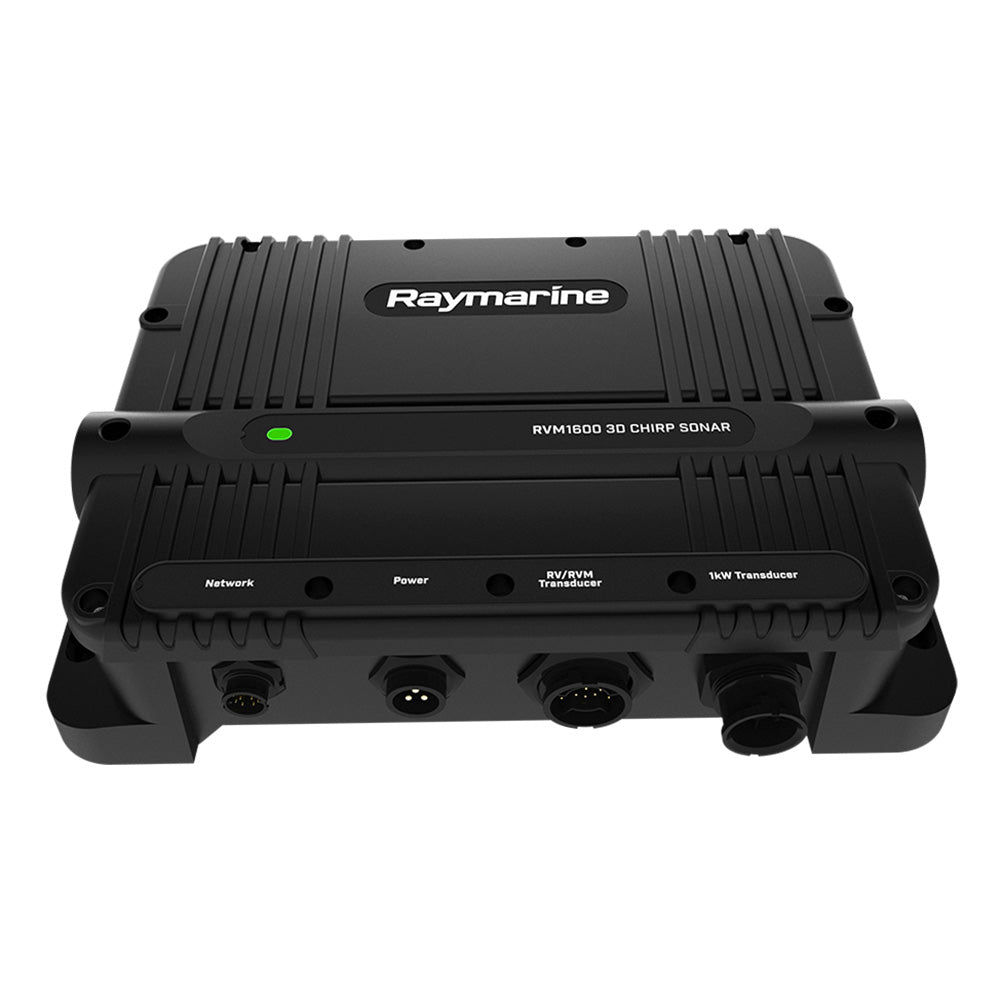

| Connections | 1x 3-pin Male power connector, 1x 10-pin RayNet network connector, 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, 1x 11-pin 1kW transducer connector |
| PHYSICAL | |
| Depth | 84.4 mm (3.32 in) |
| Width | 299.4 mm (11.79 in) |
| Height (including cable bend radius) | 285.6 mm (11.24 in) |
| Height (including connectors) | 205.6 mm (8.09 in) |
| Height | 188.0 mm (7.40 in) |
| Weight | 1.585 kg (3.49 lbs) |
| POWER | |
| Inline fuse rating | 5 A |
| Thermal breaker rating | 5 A |
| Thermal breaker rating | 2.4 A Peak; 1.2 A RMS (Maximum) @ 12 V dc |
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 10.8 V to 31.2 V dc |
| Power consumption | 10.4 W (Maximum) |
| Type: |
Marine Navigation & Instruments | Fishfinder Only |
|---|---|
| Vendor: |
Raymarine |
| Weight: |
5.8 lb |
