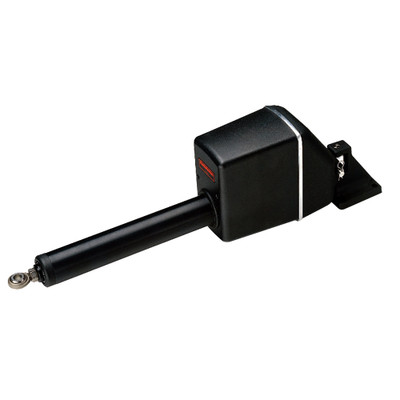

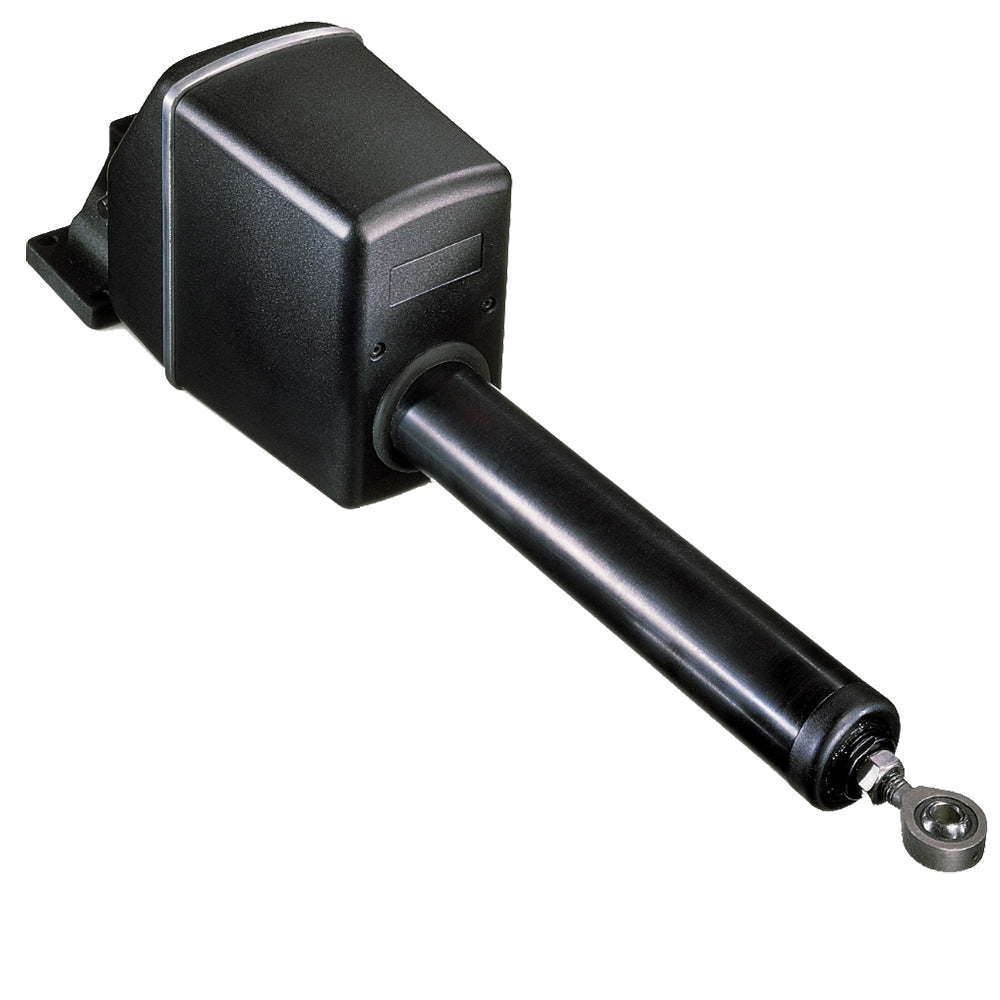

Raymarine Type 2 Long Linear Drive Unit - 24V

No reviews yet Write a Review
$3,941.26
SKU:
M81134
UPC:
23193811345
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine Type 2 Long Linear Drive Unit - 24V

$3,941.26

Raymarine Type 2 Long Linear Drive Unit - 24V Product Description

Boats with traditional hydraulic steering systems will use an Evolution autopilot driven by a hydraulic pump. The pump connects to the boat's hydraulic steering lines and allow the autopilot to steer the boat by controlling the flow of fluid through the boat's steering system. The hydraulic pump is controlled by the Evolution autopilot Actuator Control Unit.

Raymarine M81134 Attributes

  • Compatibility: ACU-400 Autopilot Control Unit
  • Drive Type: Mechanical Linear
  • Stroke Length: 16 Inch
  • Maximum Thrust: 1050 Pound
  • Input Voltage: 24 Volt

Raymarine M81134 Features & Benefits

  • Pump Connects To The Boat's Hydraulic Steering Lines And Allow The Autopilot To Steer The Boat By Controlling The Flow Of Fluid Through The Boat's Steering System
  • Hydraulic Pump Is Controlled By The Evolution Autopilot Actuator Control Unit
  • 1050 Pounds Maximum Thrust
  • Easy To Install
  • Limited 2 Year Warranty

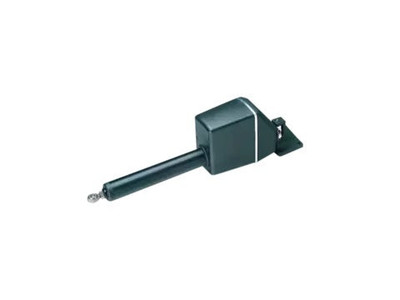

M81134 Type 2 Long Mechanical Linear Drive - 24V

Raymarine's most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.

A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.

Features
  • Drive Type: Type 2 Long
  • Maximum boat displacement: 20,000kg (44,000 lb)
  • Peak thrust: 480 kg (1050 lb)
  • Maximum stroke: 400 mm (16")
  • Hard-over to hard-over times: 14 seconds
  • Maximum rudder torque: 1,660 nm (14,700 lb.in)
  • Power consumption: 48-72W
  • Corepack used: ACU-400


Type 2 long linear driver, MFG#M81134, 24V driver, suitable for mechanical maneuvering boats with a maximum of 44 lbs. Stroke: 16, thrust: 1050 pounds. 7.8H x 4.5W x 33.5L (medium stroke)

Raymarine Type 2 Long Linear Drive Unit - 24V

Raymarine
How to describe Raymarine Type 2 Long Linear Drive Unit - 24V
What is the type of the product
What is the compatibility of this product

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine Type 2 Long Linear Drive Unit - 24V

Type 2 long linear driver, MFG#M81134, 24V driver, suitable for mechanical maneuvering boats with a maximum of 44 lbs. Stroke: 16, thrust: 1050 pounds. 7.8H x 4.5W x 33.5L (medium stroke)

What is the type of the product

Pumps/Drives

What is the compatibility of this product

ACU-400 Autopilot Control Unit


Raymarine Type 2 Long Linear Drive Unit - 24V Technical Specifications

Type:

Marine Navigation & Instruments | Autopilots

Vendor:

Raymarine

Weight:

18.0 lb

Type:

Pumps/Drives
