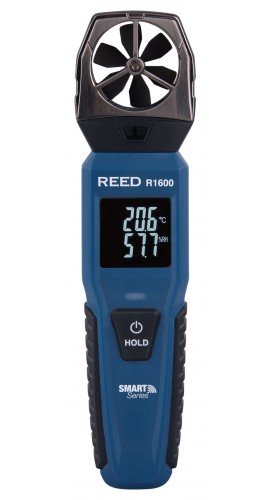

REED R1600 Vane Anemometer, Bluetooth Smart Series
SKU: R1600
Availability: 277 in Stock REED R1600 Offers The R1600 is a compact wireless vane anemometer that measures air velocity, air temperature, and relative humidity. The instrument can be used either stand-alone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1600 can measure air volume flow and can be set up to data log measurements over a given period. Features Measures air velocity (
Availability: 277 in Stock
REED R1600 Offers
The R1600 is a compact wireless vane anemometer that measures air velocity, air temperature, and relative humidity. The instrument can be used either stand-alone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1600 can measure air volume flow and can be set up to data log measurements over a given period.
Features
- Measures air velocity (m/s, ft/min, km/h, and mph), air temperature and humidity
- Easy to operate, designed for one-hand operation
- Integrated display provides flexibility for use without mobile device
- Magnetic backing allows instrument to be mounted to metallic surfaces
- Data Hold function
- Low battery indicator and auto shut-off
- Tripod mount for long-term monitoring
When used with the REED Smart Series App:
- Calculates air volume
- Real-time data logger
- User-selectable sampling rate from 1 to 120 seconds
- Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
- Connect, measure and data log up to 6 instruments, simultaneously
- Easy setup with automatic app integration for compatible REED Smart Series instruments
- Export data via Excel or PDF and create custom reports that can be emailed from a mobile device
REED R1600 Specifications
Specifications
| Air Velocity (Anemometer) | |
| Measuring Range | fpm: 118 to 4921m/s: 0.6 to 25km/h: 2.1 to 90mph: 1.3 to 55.9 |
| Accuracy | fpm: ±(40fpm + 3.5%)m/s: ±(0.2m/s + 3.5%)km/h: ±(0.8km/h + 3.5%)mph: ±(0.5mph + 3.5%) |
| Resolution | fpm: 1m/s: 0.1km/h: 0.1mph: 0.1 |
| Temperature | |
| Measuring Range | -4 to 140°F (-20 to 60°C) |
| Accuracy | -4 to 32°F (-20 to 0°C): ±1.6°F (0.8°C)32 to 140°F (0 to 60°C): ±1°F (0.5°C) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Range | 0 to 100% RH |
| Accuracy | 20 to 80% RH: ±3.5% rdg.0 to 20% & 80 to 100% RH: ±5% rdg. |
| Resolution | 0.1% RH |
| General Specifications | |
| Display | Multi-Line Enhanced Black Twisted Nematic (EBTN) LCD |
| Display Size | 1.3" (34mm) |
| Backlit Display | Yes |
| Data Hold | Yes |
| Data Logging Capabilities | Yes (with Smart Series App) |
| Real-Time Clock and Date Stamp | Yes (with Smart Series App) |
| Customizable Sampling Rate | Yes |
| Overrange Indicator | Yes |
| Auto Shut-Off | Yes (adjustable) |
| Tripod Mountable | Yes |
| Magnetic Backing | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AAA Batteries |
| Battery Life | Approx. 50 hours (sampling time dependent) |
| Connectivity | Bluetooth® 5.0 |
| Bluetooth® Range | Up to 246' (75m) |
| Max # of Connected Devices | 6 |
| Software | REED Smart Series App (iOS and Android) |
| App Supported Languages | English, French |
| Product Certifications | CE, UKCA, FCC, IC ID |
| Maximum Operating Altitude | 6561' (2000m) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Storage Humidity Range | 10 to 90% |
| Dimensions | 6.9 x 1.5 x 1" (175 x 38 x 25mm) |
| Weight | 3.8oz (108g) |
What's included with the REED R1600
- Vane Anemometer
- 4 x AAA Batteries
- Protective Cap
