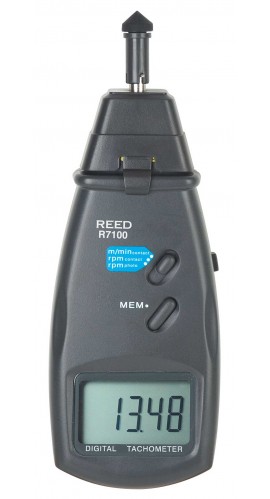

REED R7100 Combination Contact / Laser Photo Tachometer
SKU: R7100
Availability: 11 in Stock REED R7100 Offers This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) with included contact adapters. The R7100 features a built-in laser pointer to assist with identifying the target area. Features Dual function unit with both contact and non-contact capabilities Provides fast and accurate RPM (revolutions per min) meas
Availability: 11 in Stock
REED R7100 Offers
This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) with included contact adapters. The R7100 features a built-in laser pointer to assist with identifying the target area.
Features
- Dual function unit with both contact and non-contact capabilities
- Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements m/min (meters per min) with included contact adapters
- Built-in laser pointer identifies target area
- Internal memory recalls maximum, minimum values as well as last value stored
- LCD display and low battery indicator
REED R7100 Specifications
Specifications
| RPM Range (Contact) | 0.5 to 19,999 |
| RPM Range (Photo) | 2.5 to 99,999 |
| Surface Speed Range | 0.05 to 1,999.9 m/min |
| Resolution | Photo: 0.1 RPM (≤999.9) / 1 RPM (>1000)Contact: 0.1 RPM (≤999.9) / 1 RPM (>1000)Surface: 0.01 m/min (≤99.99) / 0.1 m/min (>100) |
| Basic Accuracy | ±(0.05% + 1 dgt.) |
| General Specifications | |
| Visible Indicator | Yes (Laser) |
| Target Distance | 1.6ft (500mm) (Photo) |
| Response Time | <1 sec |
| Sampling Time | 0.8 sec (over 60 RPM) |
| Display Size/Type | 5 Digit LCD Display |
| Auto shut-off | Yes |
| Internal Memory | Max, Min and Last |
| Laser Class | Class III |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AA Batteries |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10-90% |
| Dimensions | 8.3 x 2.9 x 1.5" (210 x 74 x 37 mm) |
| Weight | 7.9oz (224g) |
What's included with the REED R7100
- Photo/Contact Tachometer
- Reflective Tape
- Large and Small Cone Tip Adapters
- Funnel Adapter
- Wheel Adapter
- Batteries
- Mounting Screws
- Hard Carrying Case
REED R7100 Combination Contact / Laser Photo Tachometer. Get fast delivery when you order online at EquipTestPro.com. In stock, ships same or next day.
