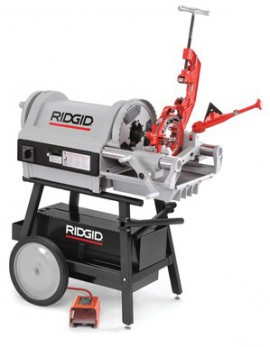

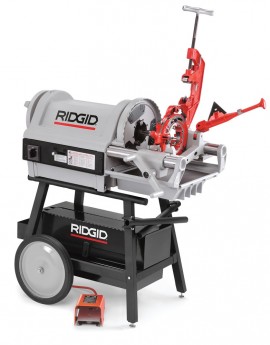

RIDGID 1224 Threading Machine, 110 V, 50 Hz
SKU: 29853
$14,695.52
Availability: 7 to 8 Weeks RIDGID 29853 Offers Features Induction motor helps minimize noise Special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced ¼ to 2″ Universal Die Head; 2½ to 4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads Constant and proper lubrication of dies and workpiece with through-head oiling RIDGID 29853 Specific
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 7 to 8 Weeks
RIDGID 29853 Offers
Features
- Induction motor helps minimize noise
- Special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
- ¼ to 2" Universal Die Head; 2½ to 4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
- Constant and proper lubrication of dies and workpiece with through-head oiling
RIDGID 29853 Specifications
Specifications
| Nominal Pipe Capacity | ¼ to 2" (6 to 100 mm) @ 36 RPM,2½ to 4" (65 to 100 mm) @ 12 RPM,4 to 6" (100 to 150 mm) with 161 Geared Threader |
| Bolt Capacity | ¼ to 2" (6 to 50 mm) |
| Motor Control | Reverse/off/forward, heavy-duty rotary-type and integral foot switch |
| Gear Box | Two-speed gear box with a 3:1 ratio |
| Chuck | Hammer-type with replaceable rocker-action jaw inserts |
| Rear Centering Device | Cam action |
| Oiling Pump | Self-priming, gerotor-type, automatic-reversing, constant-flow |
| Oiling | Through die head |
| Weight | 509 lb (231 kg) |
What's included with the RIDGID 29853
- Threading Machine
- No. 714 Die Head
- No. 711 Die Head
- 3 x Cutter
- No. 744 Cutter
- Reamer
- 3 x Sets of Dies
- Premium Oil
- Spare Wheel
- 3 x Hex Keys
- Tool box
- Warranty
