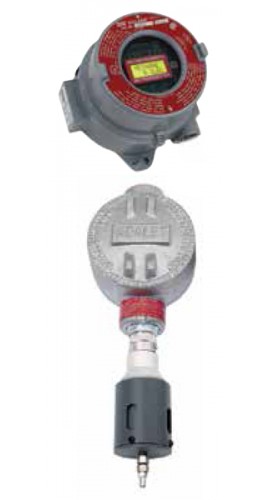

RKI 65-2619RK-CH4-4 M2 IR Methane Sensor/Transmitter with J-box and remote detector, 0 to 100% LEL
SKU: 65-2619RK-CH4-4
Availability: 2 to 3 Weeks RKI 65-2619RK-CH4-4 Offers Use the RKI 65-2619RK-CH4-4 M2 IR Methane Sensor/Transmitter with J-box and remote detector for accurate results. The display provides a clear view of the current gas reading, and the simple push-button controls make it easy to adjust the parameters. The detector head has a fixed mount design with continuous monitoring and 4 selectable operating modes. Features Fixed mount detector head off
Availability: 2 to 3 Weeks
RKI 65-2619RK-CH4-4 Offers
Use the RKI 65-2619RK-CH4-4 M2 IR Methane Sensor/Transmitter with J-box and remote detector for accurate results. The display provides a clear view of the current gas reading, and the simple push-button controls make it easy to adjust the parameters. The detector head has a fixed mount design with continuous monitoring and 4 selectable operating modes.
Features
- Fixed mount detector head offers continuous monitoring
- Easy-to-use controls with 3 push-button switches and 3 magnetic switches
- LCD makes it easy to view the current gas reading
- 4 operating modes to choose from: Calibration Mode, Configuration Mode, Gas Type Mode and Modbus Mode
- Diffusion calibration adapter/splash guard allows for sample tube connection and extra J-box
RKI 65-2619RK-CH4-4 Specifications
Specifications
| Gas | Methane |
| Detection Range | 0 to 100% LEL, 1% LEL increments |
| Alarm Settings | 10% LEL/50% LEL |
| Housing | Explosion proof Junction Box, NEMA 4 |
| Classification | Explosion proof for Class I, Groups B, C and D |
| Sampling Method | Diffusion |
| Input Power | 19 to 30 V DC |
| Signal Output | 4 to 20 mA; RS-485 Modbus |
| Product Weight | 5.5 lbs (2.5 kg) |
What's included with the RKI 65-2619RK-CH4-4
- M2 Transmitter
- J-Box

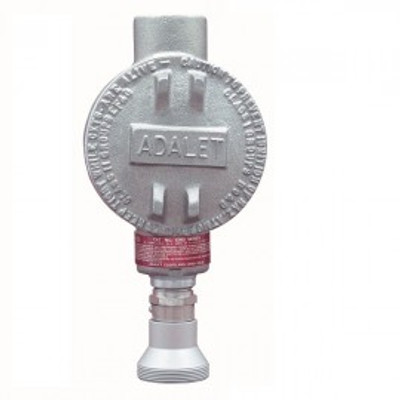

- Remote Detector
- Calibration Adapter/Splash Guard
- One-Year Warranty
RKI 65-2619RK-CH4-4 M2 IR Methane Sensor/Transmitter with J-box and remote detector, 0 to 100% LEL. Get Free Shipping when you order today on EquipTestPro.com.
