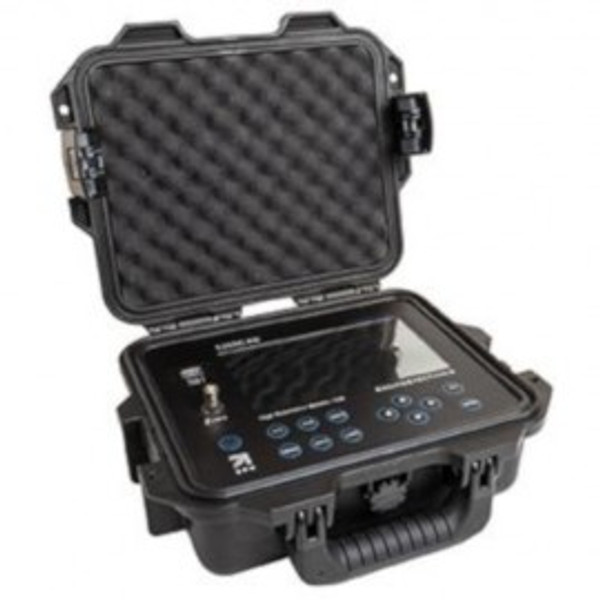

Schonstedt 10/1205CXB-US OffersThe Schonstedt 1205CXB is a Metallic Cable Analyzer TDR for pinpointing copper cable faults quickly, easily, and accurately. The 1205CXB Cable Analyzer is a Time Domain Reflectometer that fires a quick pulse of energy down a cable. A portion of the pulse energy is reflected back from cable imperfections. These imperfections can be discontinuities (eg, cable joints, terminations, changes in cable type, or the far end of the cable under test) or faults (typically short circuits, open circuits, high resistance joints, or water ingress).
The transmitted pulse and reflected pulse(s) are shown on the Schonstedt 1205CXB display. The time taken by the pulse to travel to the imperfection and back is a measure of the distance to the fault. This distinctive trace on the display allows a lineman or electrician to identify and zero in on the distance to a fault safely. The type of imperfection can be assessed by analyzing the displayed waveform.
The Schonstedt 1205CXB can be used in construction, maintenance, fault finding, measuring cable length, and restoration of a cabling system, along with locating: opens and shorts, illegal taps, splitters, and loose or rusty connectors. In addition, the Schonstedt 1205CXB copper cable analyzer can be used to evaluate a variety of different cable types: coax, twisted pair, aerial, low voltage power, and in applications where a change, such as a water leak, impacts the VOP between the two conductors. The 1205CXB Copper Cable Analyzer TDR provides one of the easiest-to-use instruments in the industry with its ultra-clean, low-noise signal, large color display, and all the TDR controls on-screen at your fingertips.
Features
Applications
| Pulse Widths | 3, 6, 12, 25, 50, 100, 200, and 500 ns 1, 2, 5, and 10 μs |
| Accuracy | 0.1% of reading ± 4" (0.1 m) |
| Resolution | ± 1" (2.5 cm) |
| Vop Range | 10.0 to 99.9 % |
| Measurements Displayed | Distance in feet or meters Time in μs |
| Fault Severity Assessment | Auto calculation of Return Loss, dBRL, at Cursor 1 and Cursor 2 in dB |
| Filtering | 1x to 16x averaging for signal interference filtering |
| Maximum Range | 99,000' (30,000m) at 99.9% VOP 65,600' (20,000m) at 66.0% VOP |
| Effective Sampling Rate | 1 Gs/s |
| Lithium Ion Battery | Capacity: 15.6Ah Maximum charging current*: 2000 mA via USB-A port Run time: 6 hrs typical Charge time: 6 hrs typical Auto power off: 0.5, 1.0, 1.5, 2.0, 2.5, or 3.0 hrs or off |
| Connections | BNC for signal output and input USB-A for charging and waveform storage to USB stick |
| Input Protection | 500 V (AC + DC) from DC to 400 Hz, decreasing to 10 V at 1 MHz |
| Waveform Storage Capacity | On-board Flash (permanent) memory: 500 waveforms USB stick: unlimited (to multiple USB sticks) |
| Waveform Storage | Image files (.bmp) for screen captures Data files (.btr) for viewing with WaveView™ PC software |
| Ingress Protection Rating | Lid open: IP54 Lid closed: IP68 |
| Operating Temperature | +32 to +122 °F (0 to +50 °C) |
| Storage Temperature | -4 to +140 °F (-20 to +60 °C) |
| Humidity | 95% maximum relative humidity, non-condensing |
| Display | 7" (17.78 cm) color display, 800 x 480 pixel Backlighting brightness adjustable from 5% to 100% |
| Unit External Dimensions | 11.8 x 9.8 x 4.7" (300 x 249 x 119 mm) |
| Weight | 6.6 lbs (3.0 kg) |
