Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

No reviews yet Write a Review
$4,662.90
SKU:
000-13336-001
UPC:
9.42002E+12
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

$4,662.90

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit Product Description

The Simrad NAC-3 Autopilot is a NAC-3 Autopilot core pack computer designed to run small hydraulic drives and mechanical drives for vessels. The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 Meter (33 Feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Ampere continuous.

Simrad 0013336001 Attributes

  • Compatibility: High-Current Drive Pumps Including Simrad RPU160 And RPU300/ Mechanical Drives Such As Simrad DD15
  • Voltage Rating: 12 To 24 Volt

Simrad 0013336001 Features & Benefits

  • Certified NMEA 2000 Connectivity
  • Precision-9 Compass
  • IPX7 Waterproof
  • Ideal For Rudder-Steered Boats Up To 10 Meters
  • Limited 2 Year Warranty

Simrad 0013336001 Installation Instructions

  • SteadySteer_IG_988-12731-001_w.pdf
  • NAC-3_IG_988-11145-003_w.pdf

Simrad 0013336001 Warranties

  • Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf

Simrad 0013336001 Technical Bulletins

  • Precision-9_MT_988-10985-001.pdf

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.

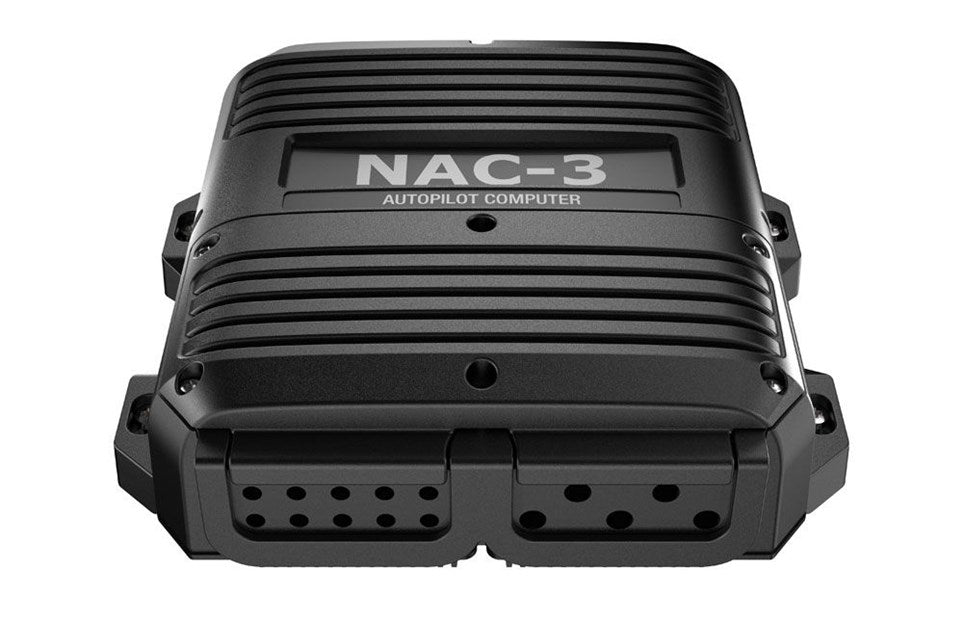

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:
  • Temperature, operation: 0 to +55°C
  • Temperature, storage: -32 to +70°C
  • Protection: IPx7
  • Weight in Kg: 0.7kg, 1.6lbs
  • Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"
  • Mounting: Bulkhead
  • Construction: Plastic
  • Color: Black
  • Cable inlet: Grommet (Spare Incl)
  • Local Power supply: 12/24 V DC +10-30%
  • NMEA 2000 Load Equivalent number (50mA): 1
  • Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s
  • On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
  • Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A
  • Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000
  • NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA
  • Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
  • External alarm output for buzzer/relay: Max 100mA, voltage level as local supply
  • IEC 61162-1 input (NMEA0183 In): 1 ch
  • IEC 61162-1 output (NMEA0183 Out): 1 ch
  • IEC 61162-1 speed: 4.8 & 38.4 kbaud
  • NMEA2000: Certified (pending)


This kit contains all the core components required to upgrade the ship with the Continuum autopilot system, which is specially designed for rudder and rudder ships over 10 meters (35 feet), suitable for...

Simrad PUMP-5 24v Reversible Hydraulic Pump 17.7 - 58.5cui Replaces RPU300


Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

Simrad
How to describe Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit
What is the steering type of the product
What is the compatibility of this product

Simrad

Simrad is part of the Norway-based Navico family, a worldwide leader in marine electronics. Simrad manufactures a full line of sophisticated marine electronics systems for the recreational yachting and light commercial markets. Simrads products are based on six core areas of expertise: radar, echo sounding, communications, automatic steering, navigation and system integration.

How to describe Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

This kit contains all the core components required to upgrade the ship with the Continuum autopilot system, which is specially designed for rudder and rudder ships over 10 meters (35 feet), suitable for...
  • The NAC-3 Autopilot Core Pack is the perfect starter kit for your boat.
  • Let the autopilot manage all your boat's functions, so you can focus on what matters.
  • Get precise guidance with the Precision 9 compass and RF 25 rudder feedback unit.
  • The NAC-3 autopilot computer is the brains behind the Precision-9 compass & RF-25 rudder feedback unit.
  • The N2k Starter Kit is a great way to get started with the system.

The Simrad NAC-3 Autopilot Core Pack is a complete autopilot system that provides the power and performance to sail your boat with precision and safety. The NAC-3 autopilot computer features an integrated compass and rudder feedback unit, making it easy to install and simple to use. It's also compatible with Raymarine's SeaTalkng network, allowing you to easily integrate it into your navigation system.

What is the steering type of the product

Hydraulic
  • The NAC-3 Autopilot Core Pack is the perfect starter kit for your boat.
  • Let the autopilot manage all your boat's functions, so you can focus on what matters.
  • Get precise guidance with the Precision 9 compass and RF 25 rudder feedback unit.
  • The NAC-3 autopilot computer is the brains behind the Precision-9 compass & RF-25 rudder feedback unit.
  • The N2k Starter Kit is a great way to get started with the system.
  • The NAC-3 Autopilot Computer is the heart of the system, providing all the necessary inputs and outputs to make your boat move.
  • The Precision-9 compass provides heading data to the computer, while the RF-25 rudder feedback unit sends rudder position information back to let you know how much control you have.
  • All connections are made via a single high density connector for easy installation.
  • The NAC-3 autopilot computer is a plug and play autopilot that doesn't require any additional cabling.
  • The Precision-9 compass is a reliable and accurate directional sensor that's resistant to magnetic interference.
  • The RF-25 rudder feedback unit is a wireless rudder feedback system that can be installed anywhere on the boat.

What is the compatibility of this product

High-Current Drive Pumps Including Simrad RPU160 And RPU300/ Mechanical Drives Such As Simrad DD15


Buy with the best price Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit for only $2449 from NVN Marine! Same day fast and free shipping before 3pm.

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit Technical Specifications

Type:

Marine Navigation & Instruments | Autopilots

Vendor:

Simrad

Weight:

8.8 lb

Steering Type:

Hydraulic
