Take total control of your on-water experience. SolarMAX (R) IPS displays offer exceptional clarity and ultra-wide viewing angles in any light conditions, while a iMX 8 high-performance processor delivers superfast response times for seamless screen transitions. Choose between all-weather touchscreen technology or keypad with a rotary dial as the situation demands. Its easy to monitor and control all of your on-board electronics with simple menus, customizable split-screen layouts, and a programmable function key for one-button access to the features you use most. Just add your choice of transducer. 1 Kilowatt CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance, including support for dual-channel CHIRP transducers that deliver multiple depth range coverage from a single unit. Dual transducer ports offer the convenience of connecting multiple transducers to a single display. Advanced processing power easily powers ActiveTarget , the highest resolution live sonar on the market, Active Imaging , providing picture-like views of fish-holding structure, and StructureScan 3D for high-resolution three-dimensional views beneath your vessel. Choice of any split screen combination, views in 3D or Navigation perspective, and Radar overlay. features compatibility with a range of 3rd party chart vendors. Upgraded chart detail for the US features three key new features - High resolution bathymetry with 1 foot contours, C-MAP Reveal embedded for Florida and Easy-Routing capabilities. Industry-standard connectivity makes it easy to create multi-display systems and link displays to all of your on-board electronics; while a iMX 8 high-performance processor ensures engine and fuel monitoring in real-time, control of on-board sound systems and much more.

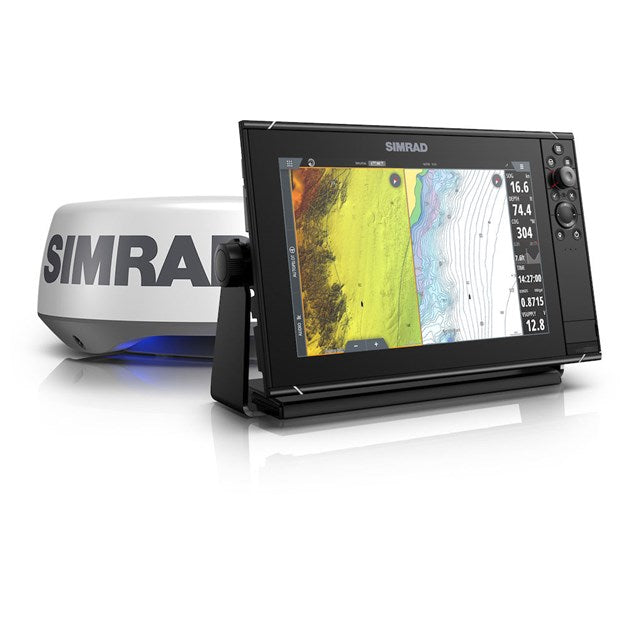

NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder Radar Bundle HALO20+ - No HDMI Video Outport
Improved Charting experience with the iMX8 processor
With a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.
In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.
Enhanced Sonar with superior on-water performance
1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Better-than-ever processing power ensures Active Imaging delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.
SolarMAX IPS display for high-definition views
Clear views under any lighting condition with SolarMAX IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.
These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.
UI improvements
Wireless connectivity for smartphones and tablets
Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data, and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features, and accessory support.
The Simrad App can also be downloaded for added benefits from device registration and manual downloads to saving waypoints and your favorite fishing spots accessible both on and off the water.
Radar Options
HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.
FLIR IP Camera Support
Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S.
WM-4 Receiver
Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boats system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.
Fast & Simple Networking & Connectivity
Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more.
Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging 3-in-1 or TotalScan, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.
What's In The Box?
Connections:
HALO20+ 20" Radar with 10M Cable
See Far And Near With One Compact Dome
Perfect for wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on faraway weather cells while watching for collision hazards up close. HALO20+ radars pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360-degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets.
Built-in VelocityTrack Doppler Technology
VelocityTrack technology grants instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness, and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; theres no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar
Harbor, offshore, weather and custom modes tune HALO20+ Radars advanced signal processing to help ensure that targets can be seen vividly even in the toughest environmental conditions.
Features:
What's In The Box?
Simrad NSS12 evo3 + Halo20+ Radar bundle
Model: 000-15555-002NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
Specifications| Physical | |
| Dimensions | 352 x 225 x 98 mm (13.84 x 8.87 x 3.82"")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) |
| Weight | 3.10kg/6.83lb |
| Environmental | |
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Environment Shock Vibration | 100,000 cycles of 20G |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Water resitance | IPX6 and 7 |
| Power | |
| Supply voltage | 10 - 31.2 V DC |
| Fuse rating | 5A |
| Power consumption (Max) | 28W |
| Display | |
| Display backlight color | White |
| Display resolution | 800 x 1280 |
| Display screen brightness | 1200 nits |
| Display size and type | High Visibility SolarMax HD® IPS 7"" optically bonded TFT |
| Display viewing angles | 80° top/bottom, 80° left/right |
| Connectivity | |
| Ethernet | 2 x 5 pin yellow connector x 1 Mbit |
| Bluetooth | Internal |
| NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
| Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Note Navico removed HDMI output April 2022 |
| WiFi connectivity | Internal |
| Sonar | |
| Sonar frequencies | 40-250kHz 455-800kHz |
| Sonar max depth | 3000+ (tested with B175L) |
| Sonar output power | 1kW RMS |
| Compliance | Compliance |
| GPS | |
| GPS | Internal |
| GPS update rate | 10 Hz |
| GPS channels | 34 |
| GPS correction | WASS, EGNOS, MSAS, GLONASS |
| GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
| Type: |
Marine Navigation & Instruments | GPS - Fishfinder Combos |
|---|---|
| Vendor: |
Simrad |
