Take your experience to a whole new levelwith the Simrad (R) NSX smartchartplotterandfishfinder.With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) DISCOVER X charts, youll see everything likenever before, our IPS touch screens capturing every detail. The NSX comes fully equipped with integrated Sonar, Radar and Autopilot systems, and with our handy Setup Wizard tool youll be up and running in no time. All you need to do now is choose your next on-the-water adventure. With an innovative, modern interface featuring powerful navigation capability with C-MAP (R) support, youll see everything like never before. The NSX features integrated Sonar, full Radar and Autopilot systems compatibility, and with our handy Setup Wizard tool, youll be up and running in no time. All you need to do now is choose your next on-the-water adventure. Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX IPS touch screen. The high definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.

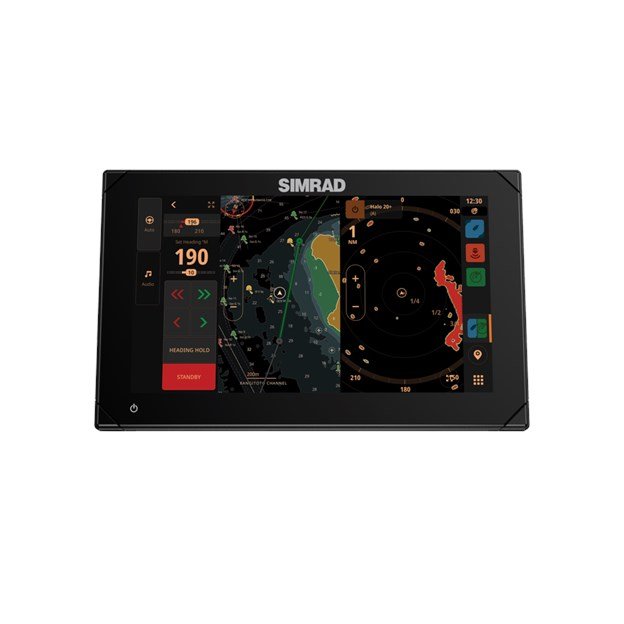

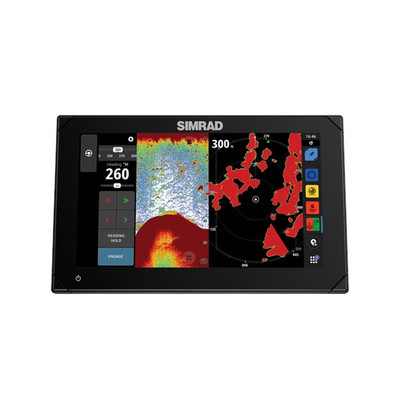

NSX 3009 9" Chartplotter & Fishfinder with Active Imaging 3-in-1 Transducer
Everything about NSX is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal, DownScan Imaging, and SideScan.
Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.
An Intuitive Touchscreen Experience
Easily access all NSX features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.
Bring Navigation to Life with NSX
See map details in a different way with next-generation C-MAP® DISCOVER X and REVEAL X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.
Full Suite of Simrad® Technology at Your Fingertips
Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.
Simple to Set Up, Easy to Manage
Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.
Features:
Simrad NSX 3009 - Smart Chartplotter / fishfinder. Active Imaging 3-in-1 transducer. C-MAP® DISCOVER X chart included
Model: 000-15366-001Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.
See map details in a new way with a next-generation C-MAP® DISCOVER X marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, theres a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.
NSX opens up a world of possibilities, from the included Active Imaging 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, weve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.
With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But thats not all. Sonar hints offer guidance on whats happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process youll be up and running in no time. All you need to do now is choose your next adventure.
Specifications| Display | |
| Size and Type | 9"" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Resolution | 1280 x 720 px |
| Viewing Angles | 85° (top, bottom, left, and right) |
| Screen Brightness | >1200 nits |
| Backlight Color | White |
| Power | |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Power Consumption max | 18.8 W (1360 mA at 13.8 V) |
| Recommended Fuse Rating | 3A |
| Physical | |
| Dimensions W x H x D | With bracket: W: 263.0 mm (10.35"") x H: 172.6 mm (6.80"") x D: 80.6 mm (3.17"") |
| MountingType | Bracket (supplied), panel mount or flush mount |
| Compass Safe Distance | 50 cm (1.7 ft) |
| Environmental | |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Shock Vibration | 100,000 cycles of 20 G |
| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar Compatibility | One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging |
| Ethernet | 1 port (5-pin connector) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| USB | 1 port (USB A) Output: 5 V DC, 1.5 A |
| External Storage | 1 MicroSD slot, 1 port (USB A) |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| GPS Correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS Receiver Channels | 32 Channels |
| GPS Update rate | 10Hz |
| J1939 | No |
| ConnectivityPcConnectivity | No |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Languages | English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish |
| Charts Supported | C-MAP Discover X, C-MAP Reveal X |
| Radar Compatibility | Halo Dome radars, Halo open array radars |
| Weather | No |
| AIS | Receive AIS data over NMEA 2000 |
| Digital Switching | Simrad COMMAND DDS only on release to market |
| Type: |
Marine Navigation & Instruments | GPS - Fishfinder Combos |
|---|---|
| Vendor: |
Simrad |
| Included Transducer: |
000-14489-001 |
| Screen Size: |
9" |
| Transducer Included: |
Yes |
| Product Brochure: |
Download PDF |
