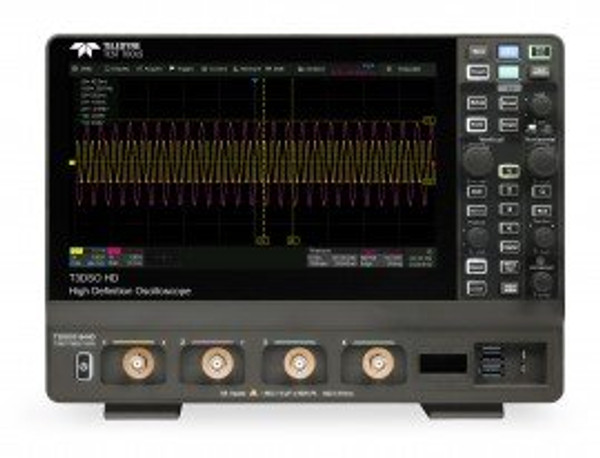

Teledyne LeCroy T3DSO3054HD OffersThe T3DSO3000HD series employs the latest technology which features a maximum waveform capture rate of up to 200,000 wfm/s in normal mode and 890,000 wfm/s in Sequence mode, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter
The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the T3DSO3000HD.
Features
Applications
| Analog Channels | 4 + EXT |
| Bandwidth | 500 MHz |
| Sample Rate (Max.) | 4 GS/s (interleaving), 2 GS/s (non-interleaving) |
| Memory Depth (Max.) | 400 Mpts/ch (single-channel, interleaving), 200 Mpts/ch (dual-channel, interleaving), 100 Mpts/ch (non-interleaving) |
| Waveform Capture Rate (Max.) | 200,000 wfm/s (Normal mode), 890,000 wfm/s (Sequence mode) |
| Vertical Resolution | 12-bit (up to 16-bit in ERES mode) |
| Trigger Type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial |
| Serial Trigger & Decode | I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429 |
| Measurement | 50+ parameters, statistics, histogram, trend, and track supported |
| Math | 4 traces, 4 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter (Formula editor supported) |
| Data Analysis | Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis |
| Digital Channel (Optional) | 16-channel, max sample rate 1 GS/s, record length up to 100 Mpts |
| USB AWG Module (Optional) | One channel, 50 MHz, sample rate 125 MHz, wavelength 16 kpts, isolated output |
| I/O | 2 x USB 3.0 Host, USB 2.0 Host, USB 3.0 Device, 10M/100M/1000M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL) |
| Probe | 4 x 500 MHz passive probes |
| Display | 10.1" (25 cm) TFT-LCD with capacitive touch screen (1024 × 600) |
| Dimensions | 12.49 × 9.29 × 5.87" (317.2 × 236 × 149 mm) including knobs and supporting legs |
| Weight | Net weight: 2.2 lbs (4.1 kg) Gross weight: 12 lbs (5.6 kg) |
