Availability: 2 in Stock

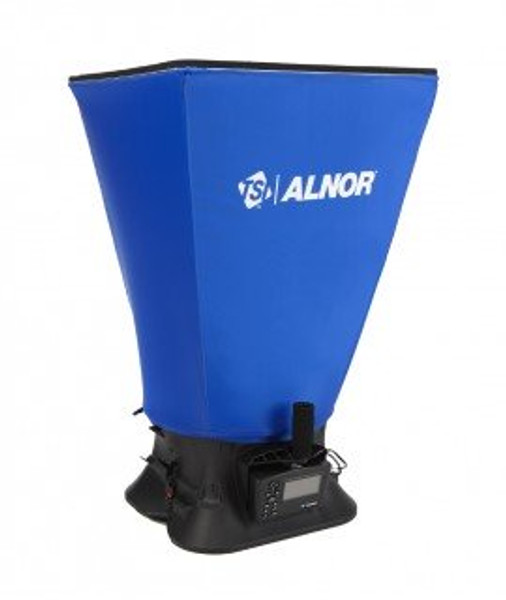

TSI/Alnor EBT731 OffersPrimarily used for efficiently taking direct air volume readings at diffusers and grilles, this capture hood kit features a detachable micromanometer which can be used with optional probes (sold separately) for increased flexibility in multiple measurement applications.
Capture hood features
Micromanometer features
Applications
| Velocity Range | |
| Pitot Probes | 25 to 15,500 ft/min (0.125 to 78 m/s) |
| Air Flow Probe | 25 to 5000 ft/min (0.125 to 25 m/s) |
| Velocity Matrix | 25 to 2500 ft/min (0.125 to 12.5 m/s) |
| Accuracy | ±3% of reading ±7 ft/min (±0.04 m/s) at velocities >50 ft/min (>0.25 m/s) |
| Units | ft/min, m/s |
| Resolution | 1 ft/min (0.01 m/s) |
| Pressure | |
| Differential Pressure | ±15 inH2O (±3735 Pa); 150 inH2O (37.5 kPa), maximum safe operating pressure |
| Absolute Pressure | 15 to 40 inHg (356 to 1016 mmHg) |
| Accuracy | ±2% of reading ±0.0001 inH2O (±0.025 Pa) static and differential; ±2% of reading absolute |
| Units | inH2O, inHg, Pa, hPa, kPa, mmHg, cmHg, mmH2O, cmH2O |
| Resolution | 0.00001 inH2O (0.001 Pa) static and differential; 0.01 inHg (1 mmHg) absolute |
| Volume | |
| Range | 25 to 2500 ft3/min (42 to 4250 m3/h) capture hood, supply and return |
| Accuracy | ±3% of reading ±7 ft3/min (±12 m3/h) at flows >50 ft3/min (>85 m3/h) |
| Units | ft3/min, m3/h, m3/min, l/s |
| Resolution | 1 ft3/min (1 m3/h) |
| RH | |
| Range | 5 to 95% RH (Temperature/RH Probe) |
| Accuracy | ±3% RH |
| Resolution | 0.1% RH |
| Temperature | |
| Sensor in Base | 40 to 140°F (4.4 to 60°C) |
| Temperature/RH Probe | 14 to 140°F (-10 to 60°C) |
| Accuracy | ±0.5°F (±0.3°C) |
| Units | °F, °C |
| Resolution | 0.1°F (0.1°C) |
| Instrument Temperature Range | |
| Operating | 40 to 140°F (4.4 to 60°C) |
| Storage | -4 to 160°F (-20 to 71°C) |
| General Specifications | |
| Statistics | Minimum, maximum, average, and sum |
| Data Storage | 25,500 samples, times, and date stamped |
| Logging Interval | User Selectable |
| Response Time | 2 to 8 seconds, differential pressure sensor |
| Power Requirements | 4 x AA Cells or AC adapter |
| Dimensions | 7.4 x 4.5 x 2.3" (18.8 x 11.4 x 5.8 cm) |
| Weight | 7.4 lbs (3.4 kg) |
